T 435 - Husqvarna Chainsaw (2009-02) Cylinder / Crankcase Parts Diagram

Chainsaw

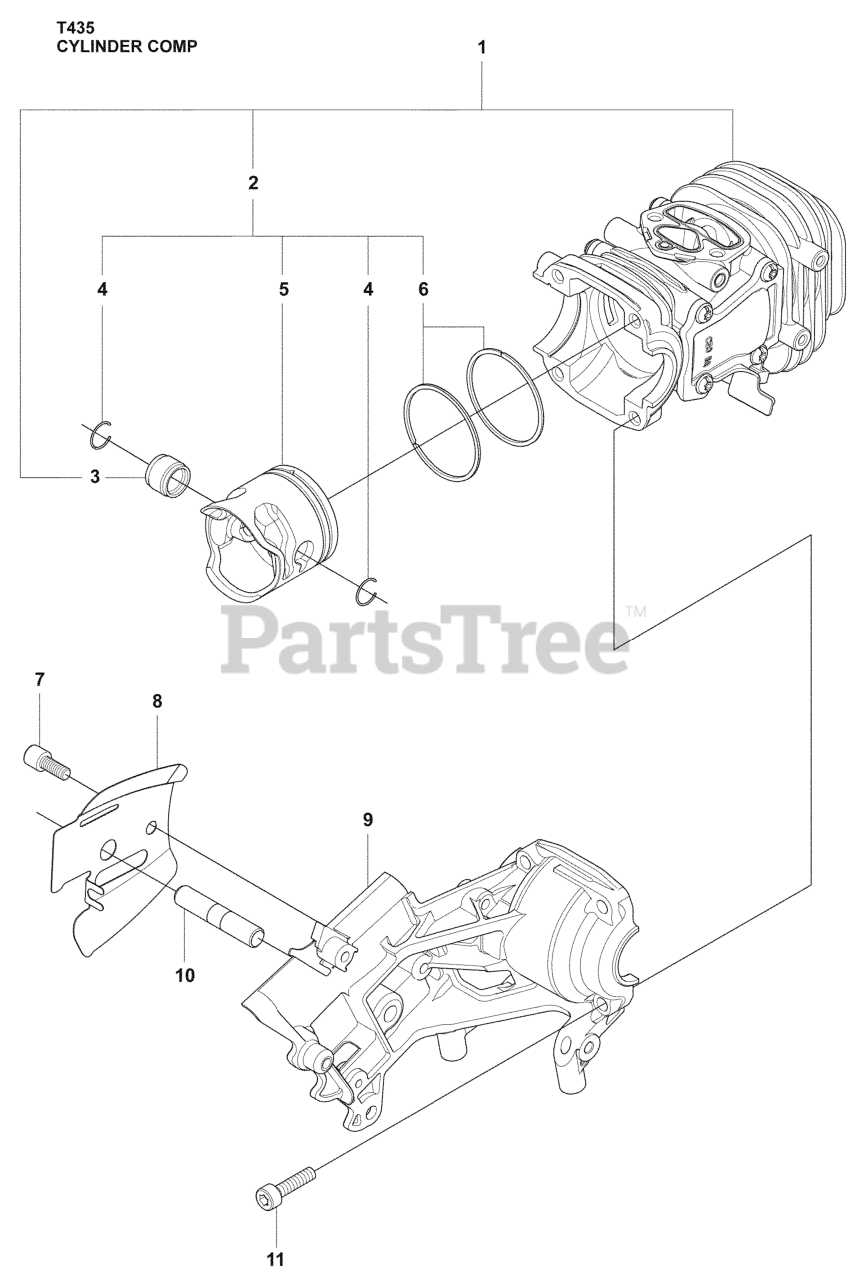

Cylinder / Crankcase Parts Diagram

  • Title

1

Husqvarna 523084301

CYLINDER

$170.99

$

Usually ships in 3-10 days

0

2

Husqvarna 523084201

PISTON

$96.99

$

Usually ships in 3-10 days

0

3

Husqvarna 521794701

BEARING
(Superseded to 505297301)

$7.99

$

In Stock, Qty 5

0

4

Husqvarna 516283001

RING

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 522642501

PISTON

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522642601

RING, PISTON
(Superseded to 513284901)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 521799901

BOLT

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 522012001

PLATE

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 522641001

CASE, CRANK
(Superseded to 527665601)

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 516738001

STUD BOLT

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 521345401

SCREW
(Superseded to 506689001)

$4.99

$

Usually ships in 3-10 days

0
