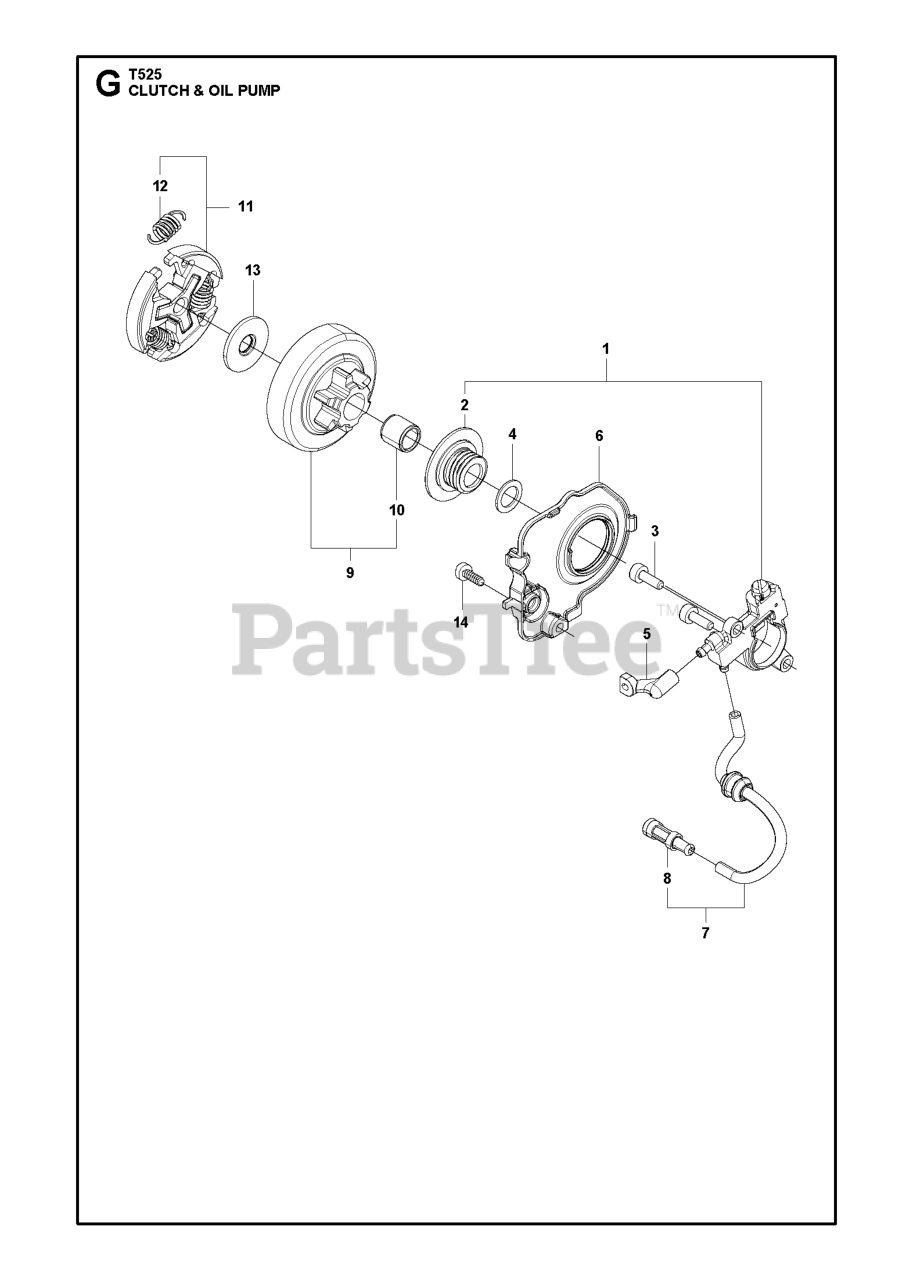

T 525 - Husqvarna Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

CLUTCH & OIL PUMP Parts Diagram

  • Title

1

Husqvarna 587873401

OIL PUMP ASSY

$77.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505053101

OIL PUMP (WORM 199-18)
(Superseded to 593825301)

$21.99

$

In Stock, only 1 left!

0

3

Husqvarna 521515701

BOLT M4 X 12 T27

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 505053301

WASHER

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 587873801

OIL PRESSURE HOSE

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587873901

COVER PUMP
(Superseded to 587873902)

Note: s/n up to 20182699999

$

$

Not available

6

Husqvarna 587873902

COVER PUMP
(Superseded to 587873901)

Note: s/n from 20182700001

$

$

Not available

7

Husqvarna 587874101

OIL HOSE ASSY

$21.99

$

Usually ships in 3-10 days

0

8

Husqvarna 521545601

FILTER-ASSY 848C006740

$9.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501290501

CLUTCH DRUM ASSY 3/8 6 TOOTH

Note: 3/8 6 tooth

$45.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501290502

CLUTCH DRUM ASSY 1/4 8 TOOTH

Note: 1/4 8 tooth

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 514183301

ROLLER BEARING

$10.99

$

In Stock, only 3 left!

0

11

Husqvarna 511044501

CLUTCH 848C105121

$39.99

$

Usually ships in 3-10 days

0

12

Husqvarna 512423501

SPRING T204151230

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 512423401

PLATE

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 576984002

SCREW TP4-18X12 LOCK
(Superseded to 576984001)

$4.99

$

In Stock, only 1 left!

0
