T 535 iXP - Husqvarna Chainsaw CHAIN BRAKE Parts Diagram

Chainsaw

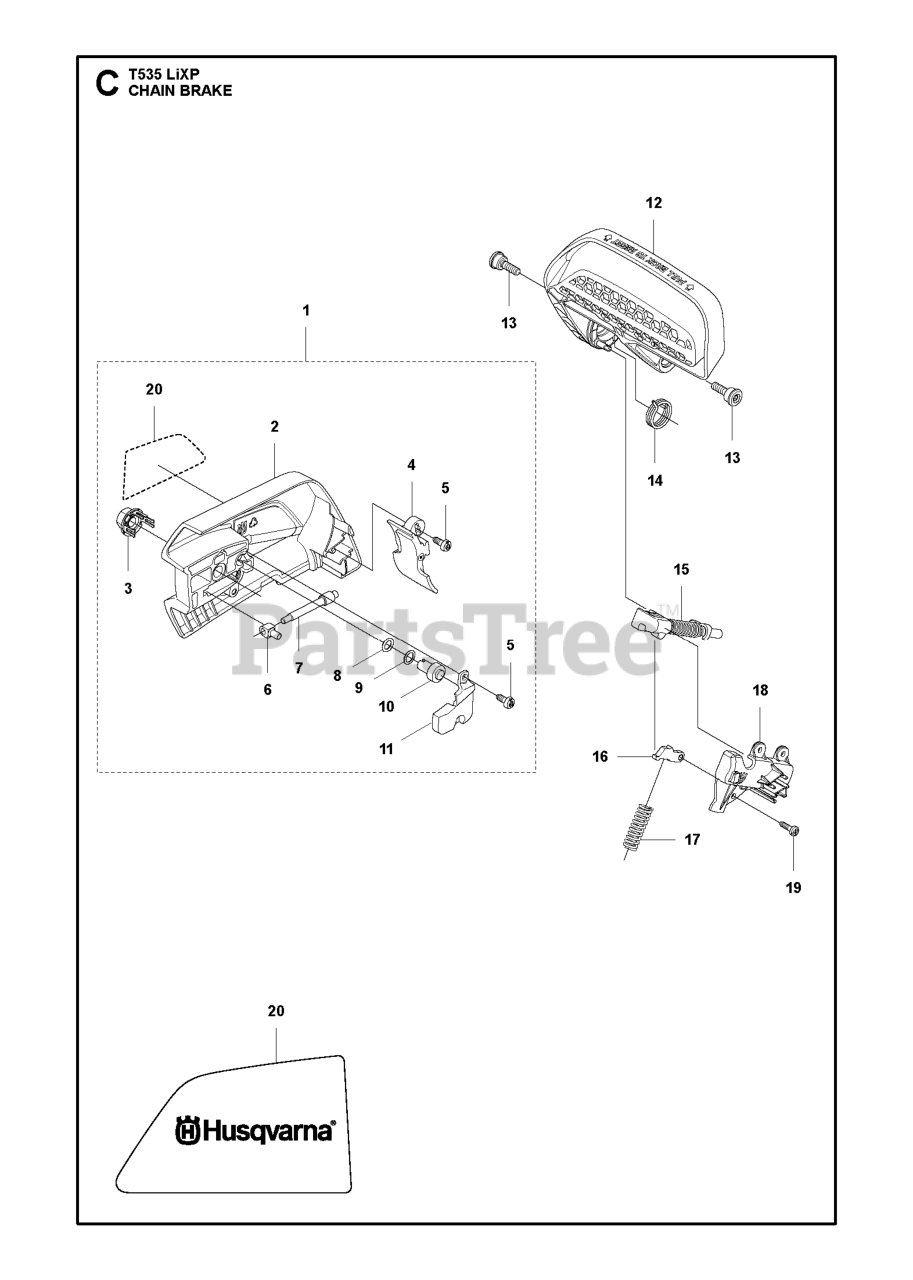

CHAIN BRAKE Parts Diagram

  • Title

1

Husqvarna 576905601

CLUTCH COVER ASSY
(Superseded to 576905603)

$59.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576905701

CLUTCH COVER

$30.99

$

In Stock, only 1 left!

0

3

Husqvarna 505197301

NUT RETAINER ASSY

$9.99

$

In Stock, only 2 left!

0

4

Husqvarna 577722101

CHIP GUARD

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503217072

SCREW

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 501454102

PAWL
(Superseded to 588850301)

$6.99

$

In Stock, Qty 9

0

7

Husqvarna 537397001

SCREW

$14.99

$

In Stock, only 2 left!

0

8

Husqvarna 740480702

O-RING

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 503230063

WASHER

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 537079402

WORM WHEEL

$14.99

$

In Stock, only 3 left!

0

11

Husqvarna 505214501

COVER LID

$8.49

$

Usually ships in 3-10 days

0

12

Husqvarna 576903801

HAND GUARD

$33.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503893001

SCREW

$5.99

$

In Stock, Qty 6

0

14

Husqvarna 577649801

TORSION SPRING

$5.49

$

Usually ships in 3-10 days

0

15

Husqvarna 577549501

SHAFT ASSY

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577272001

CATCH

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576904601

SPRING

$5.49

$

In Stock, only 1 left!

0

18

Husqvarna 577365601

BRACKET

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503212813

SCREW

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 578228901

DECAL

$4.99

$

Usually ships in 3-10 days

0
