T 535 iXP - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

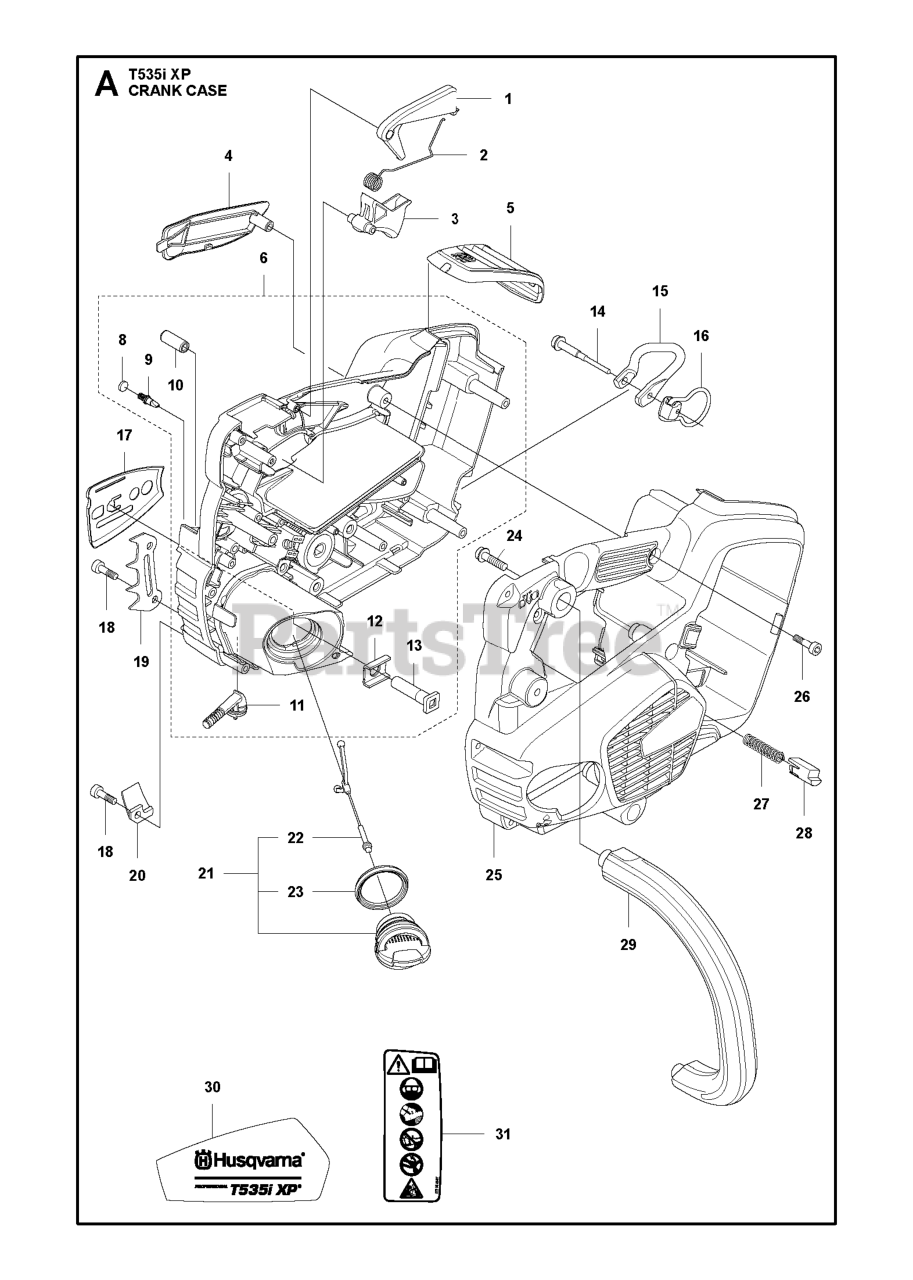

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 506495701

THROTTLE LOCKOUT

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544099901

SPRING

$5.99

$

In Stock, Qty 6

0

3

Husqvarna 577312601

THROTTLE CONTROL

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 576900901

HANDLE INSERT

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 576901201

COVER

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 581690901

CRANKCASE ASSY

$113.99

$

Usually ships in 3-10 days

0

7

Husqvarna 581690501

KEY PAD

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.49

$

In Stock, Qty 10

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 581120201

OIL SCREEN
(Superseded to 598749201)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576999701

PLATE

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503875401

BOLT

$6.99

$

In Stock, Qty 6

0

14

Husqvarna 522847901

SCREW ITXSCFM

$4.49

$

Usually ships in 3-10 days

0

15

Husqvarna 576381301

LOOP

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580860001

LOOP
(Superseded to 580860002)

$9.49

$

In Stock, only 1 left!

0

17

Husqvarna 576901401

CHAIN GUIDE

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503217416

SCREW

$3.49

$

In Stock, Qty 8

0

19

Husqvarna 577286601

INDRE BARKSTØD

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505288501

CHAIN CATCHER

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 522620001

TANK CAP ASSY
(Superseded to 522620003)

$9.49

$

In Stock, Qty 6

0

22

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

23

Husqvarna 537215001

SEALING
(Superseded to 589241101)

$6.99

$

In Stock, Qty 5

0

24

Husqvarna 503216872

SCREW IHSCFT

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 576901002

CRANKCASE

$77.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503216674

SCREW IHSCT MT4X18 10.9 ZN/FE

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 585480001

SPRING PUSH OUT

$5.49

$

Usually ships in 3-10 days

0

28

Husqvarna 577996601

PUSH BUTTON

$5.49

$

Usually ships in 3-10 days

0

29

Husqvarna 576901101

FRONT HANDLE

$44.99

$

Usually ships in 3-10 days

0

30

Husqvarna 578229002

DECAL PRODUCT T535I XP

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 577844301

DECAL

$4.99

$

Usually ships in 3-10 days

0
