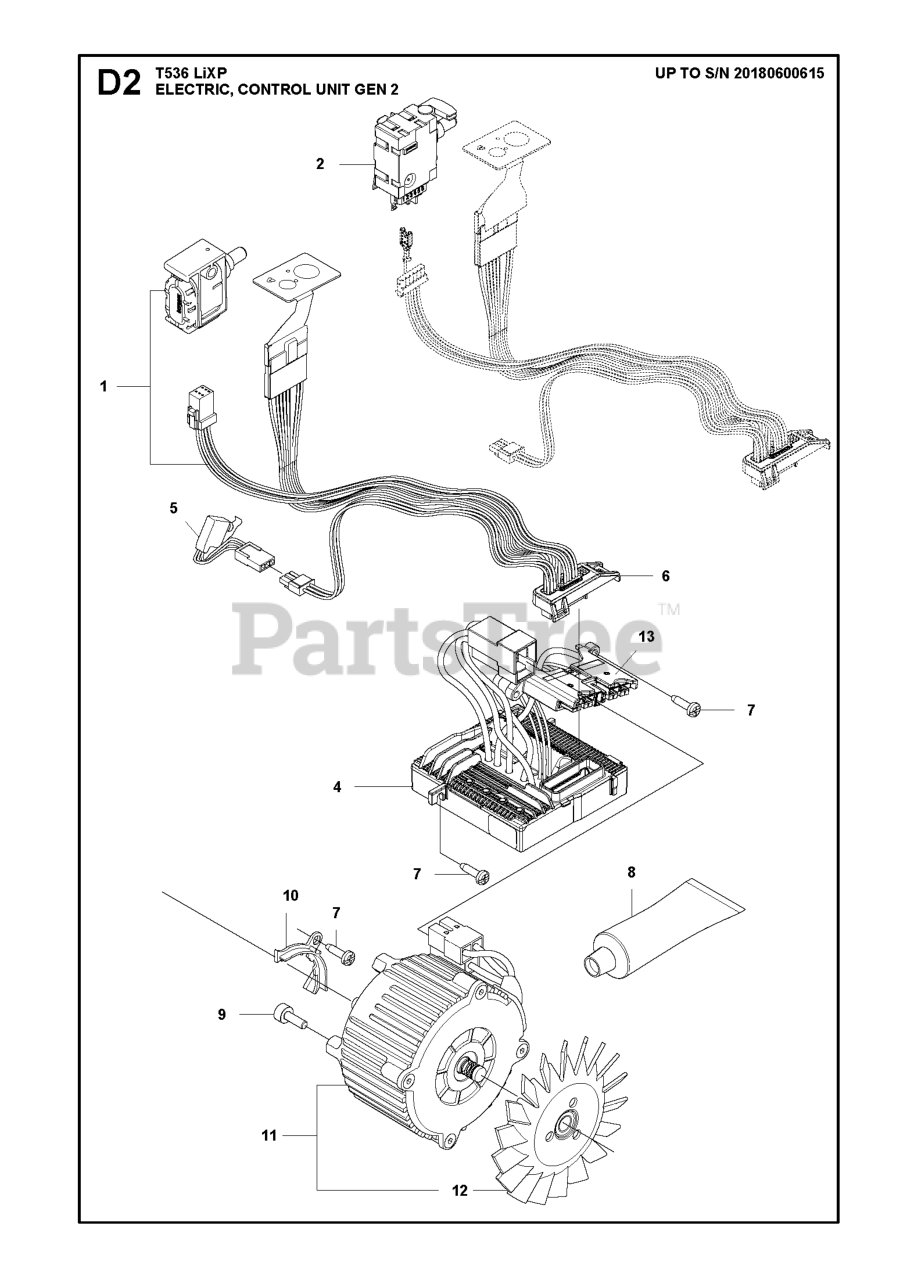

T 536 LiXP - Husqvarna Chainsaw ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

10

Husqvarna 577585201

COVER

$7.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593896101

SWITCH KIT BATTERY TOP HANDLE

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 593813001

CONNECTOR BATTERY

$25.99

$

Usually ships in 3-10 days

0

2

Husqvarna 578326901

TRIGGER SWITCH

$36.99

$

In Stock, only 3 left!

0

7

Husqvarna 503212813

SCREW

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 577827701

WIRING ASSY

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503202512

SCREW

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 577315802

MOTOR ASSY BLDC D70

Note: Complete with fan

$324.99

$

Usually ships in 3-10 days

0

12

Husqvarna 581300901

FAN

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586265201

CONTROL UNIT

$227.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588176401

GREASE TUBE Q8 RUYSDAEL WR2

Note: For application instruction, see SB-1500022

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587327201

BRACKET

$6.99

$

Usually ships in 3-10 days

0
