T 540 iXP - Husqvarna Chainsaw CLUTCH Parts Diagram

Chainsaw

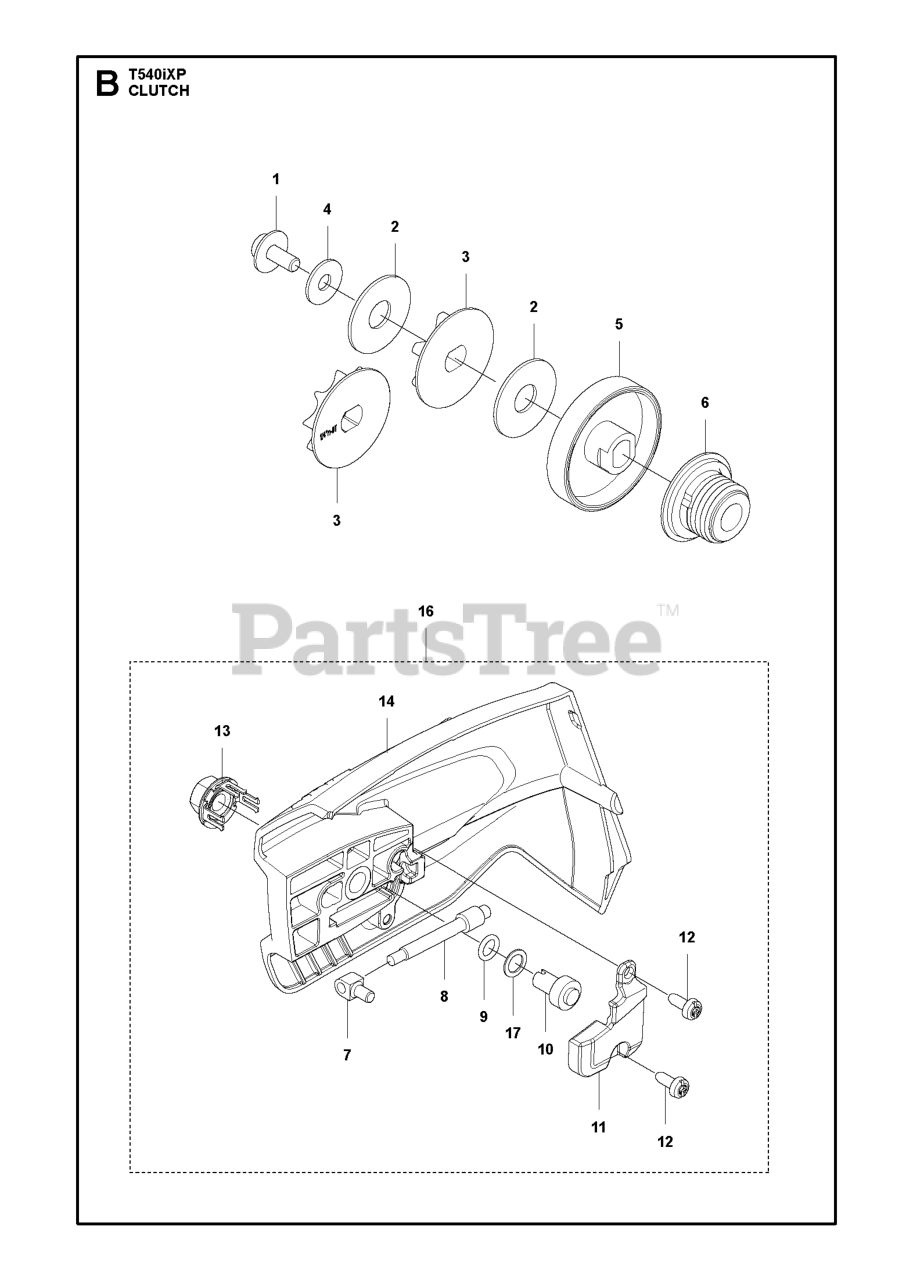

CLUTCH Parts Diagram

  • Title

2

Husqvarna 597670101

DISC

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 593051702

CLUTCH COVER T540I XP

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503230035

WASHER 5.3X15

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 593052002

CLUTCH COVER

$35.99

$

In Stock, only 2 left!

0

3

Husqvarna 594035201

Sprockets

Note: .325"mini - 7T

$17.99

$

In Stock, only 2 left!

0

10

Husqvarna 599724101

WORM WHEEL LEFT HAND TEETH

$9.99

$

In Stock, only 2 left!

0

6

Husqvarna 593784801

Pumps

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 505197301

NUT RETAINER ASSY

Note: Retainer Assy

$9.99

$

In Stock, only 2 left!

0

11

Husqvarna 505214501

COVER LID

Note: Chain Tensioner

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 535557401

SPUR SPROCKET 1/4IN MINI 9T SP

Note: 1/4"mini - 9T - SP11G

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537397001

SCREW

$14.99

$

In Stock, only 2 left!

0

1

Husqvarna 525755105

SCREW
(Superseded to 575532001)

$4.99

$

In Stock, Qty 9

0

9

Husqvarna 740480702

O-RING

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 503230063

WASHER

$4.99

$

In Stock, Qty 5

0

12

Husqvarna 526221801

SCREW

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 588850301

PIN BAR ADJUSTING

$6.99

$

In Stock, Qty 9

0

5

Husqvarna 593684401

Brakes

$9.99

$

Usually ships in 3-10 days

0
