T 540 XP - Husqvarna Chainsaw CYLINDER PISTON Parts Diagram

Chainsaw

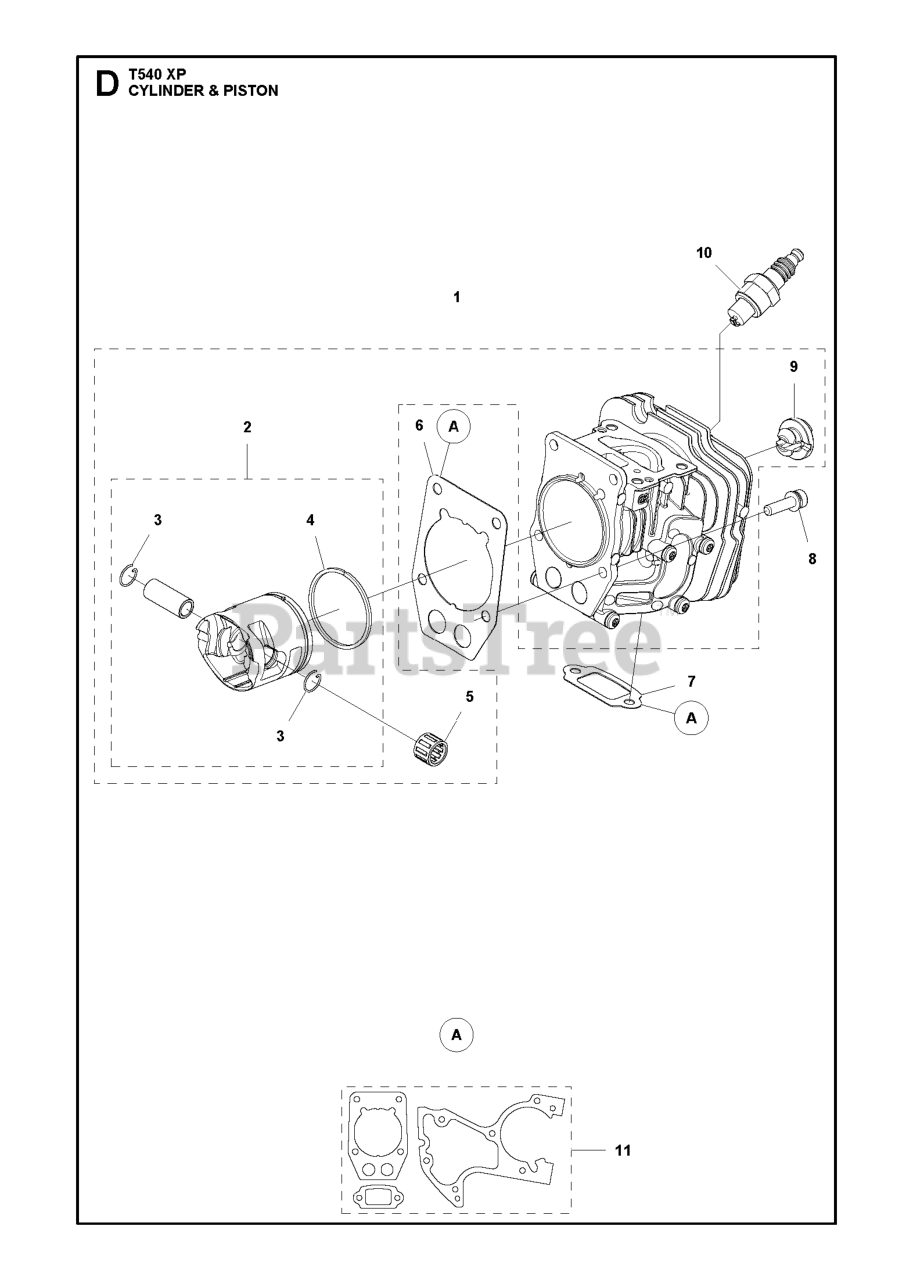

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 576676201

CYLINDER-PISTON ASSY
(Superseded to 586341502)

Note: up to 141899999

$227.99

$

Usually ships in 3-10 days

0

1

Husqvarna 576676202

CYLINDER ASSY
(Superseded to 586341502)

Note: from 141900001

$227.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586446202

PISTON ASSY
(Superseded to 586446204)

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 737441000

LOCKING RING

$3.49

$

In Stock, Qty 10

0

4

Husqvarna 577960501

PISTON RING

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503255501

NEEDLE BEARING

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505457001

GASKET

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505408301

GASKET

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576355902

SUPPORT

Note: s/n from 20141900001-

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 577401202

SCREW ITXSCM

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 576355901

SUPPORT

Note: s/n up to -20141899999

$

$

Not available

10

Husqvarna 531008615

CMR6H NGK SPARK PLUG

$5.99

$

In Stock, Qty 20+

0

11

Husqvarna 576666101

GASKET KIT

Note: A=Set of gaskets

$9.49

$

Usually ships in 3-10 days

0
