T 540 XP II - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

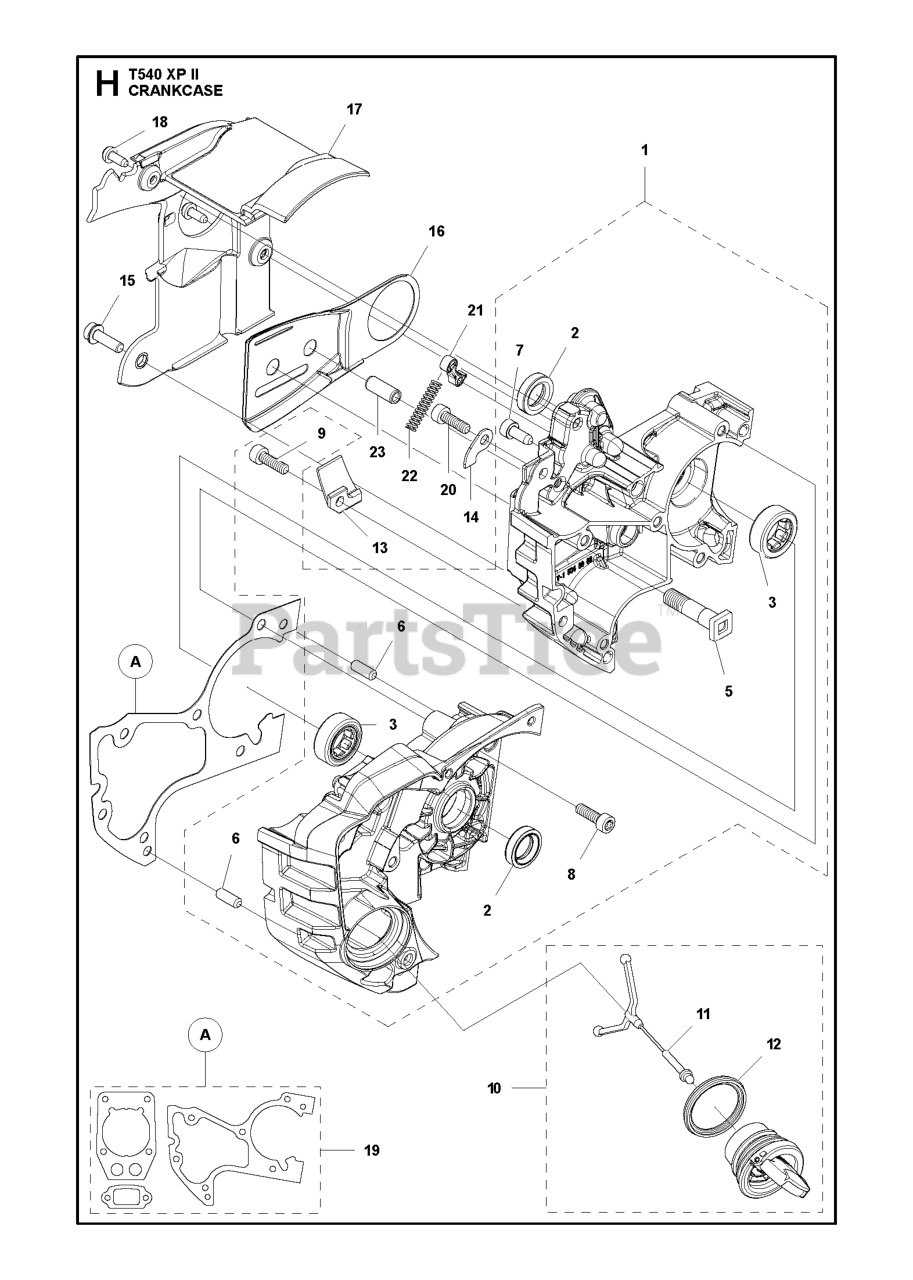

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 574618002

CRANKCASE ASSY

$159.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588139701

RADIAL SEAL

$13.99

$

In Stock, only 2 left!

0

3

Husqvarna 505394701

ROLLER BEARING

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505217301

BAR BOLT

$5.99

$

In Stock, only 3 left!

0

6

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525764601

SCREW ITXSCT

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 525824901

SCREW ITXSCM

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 505574116

SCREW ITXSCM

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 577878603

TANK CAP ASSY

$16.99

$

In Stock, only 4 left!

0

11

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 5

0

12

Husqvarna 589241301

GASKET TANK CAP

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505288501

CHAIN CATCHER

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580250401

WASHER

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 525755101

SCREW

$3.49

$

In Stock, Qty 11

0

16

Husqvarna 505521401

CHAIN GUIDE PLATE

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 516034501

COVER LID ASSY
(Superseded to 516034502)

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 526222001

SCREW CITXPANT

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 576666101

GASKET KIT

Note: A=Set of gaskets

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 505574116

SCREW ITXSCM

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503436501

LOCK SPRING

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$3.49

$

Usually ships in 3-10 days

0
