T-7 (1600276) - Homelite Lawn Tractor, 7hp Hood, Frame, Dash & Seat Group (3857I01) Parts Diagram

Lawn Tractor, 7hp

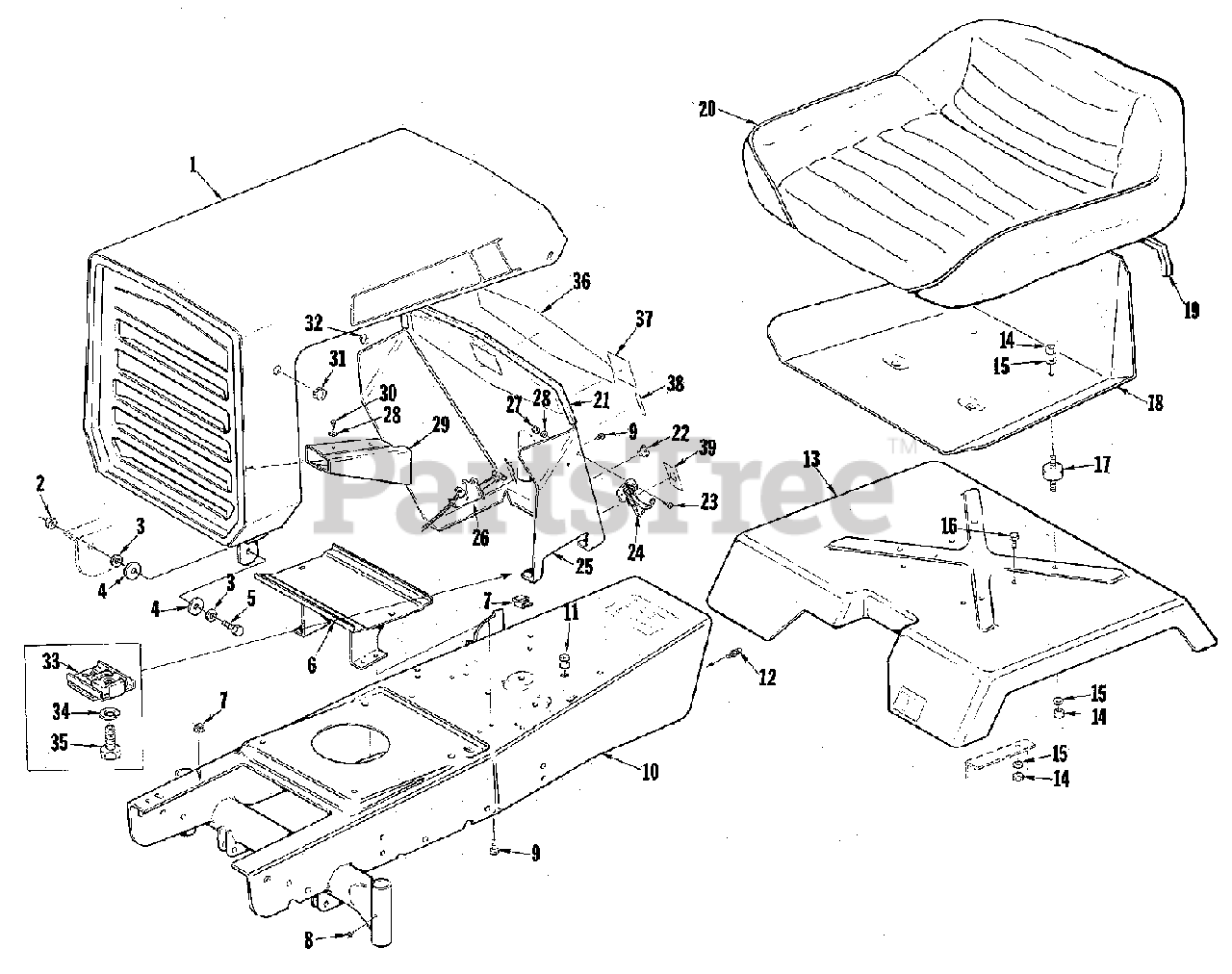

Hood, Frame, Dash & Seat Group (3857I01) Parts Diagram

  • Title

1

Simplicity LM-16063-13

HOOD ASSEMBLY

$

$

Not available

2

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

3

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

4

Simplicity LM-01591-34

WASHER, Special

$

$

Not available

5

Simplicity LM-09164-31

CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

6

Simplicity LM-16063-28

SUPPORT ASSEMBLY, Battery

$

$

Not available

7

Simplicity LM-16083-78

CLIP, Cable

$

$

Not available

8

Simplicity LM-09146-87

FITTING, Lube, Straight

$

$

Not available

9

Simplicity LM-09250-03

SCREW, Tap, 1/4-20 x 1/2, Taptite

$

$

Not available

10

Simplicity LM-16082-29

FRAME ASSEMBLY

$

$

Not available

11

Simplicity LM-16068-61

GROMMET

$

$

Not available

12

Simplicity LM-09211-33

FITTING, Lube

$

$

Not available

13

Simplicity LM-16067-02

SUPPORT, Seat

$

$

Not available

14

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

15

Simplicity LM-09173-56

LOCKWASHER, 5/16

$

$

Not available

16

Simplicity LM-09173-97

CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

17

Simplicity LM-01590-85

CUSHION, Connector

$

$

Not available

18

Simplicity LM-01650-66

PANEL, Seat

$

$

Not available

19

Simplicity LM-16048-92

TRIM, "U" Channel

$

$

Not available

20

Simplicity LM-01620-94

PAD, Seat

$

$

Not available

21

Simplicity LM-16063-80

MOULDING, Dash

$

$

Not available

22

Simplicity LM-16010-48

PLUG, Button

$

$

Not available

23

Simplicity LM-09160-79

SCREW, Machine, 10-24 x 3/8

$

$

Not available

24

Simplicity LM-16032-78

LATCH, Hood

$

$

Not available

25

Simplicity LM-16063-49

DASH ASSEMBLY

$

$

Not available

26

Simplicity LM-16067-74

CONTROL ASSEMBLY

$

$

Not available

27

Simplicity LM-09166-21

NUT, Hex, 10-24

$

$

Not available

28

Simplicity LM-09227-11

LOCKWASHER, #10 Extension Tooth

$

$

Not available

29

Simplicity LM-16065-18

EXTENSION ASSEMBLY, Exhaust

$

$

Not available

30

Simplicity LM-09237-35

SCREW, Self Tapping, Hex Head, #10 x 3/8

$

$

Not available

31

Simplicity LM-16078-07

PLUG, Button

$

$

Not available

32

Simplicity LM-01221-83

CLIP, Fuse

$

$

Not available

33

Simplicity LM-07180-70

NUT, Retainer

$

$

Not available

34

Simplicity LM-09169-64

LOCKWASHER, Regular, 1/4

$

$

Not available

35

Simplicity LM-09219-59

CAPSCREW, Hex Head, 1/4-20 x 5/8

$

$

Not available

36

Simplicity LM-16073-40

DECAL, Dash

$

$

Not available

37

Simplicity LM-16081-97

DECAL, Safety Plate

$

$

Not available

38

Simplicity LM-16081-85

DECAL, Throttle

$

$

Not available

39

Simplicity LM-16081-84

DECAL, Key Switch

$

$

Not available
