T-80019 - Husqvarna Trailer Attachment (1998-09) TRAY Parts Diagram

Trailer Attachment

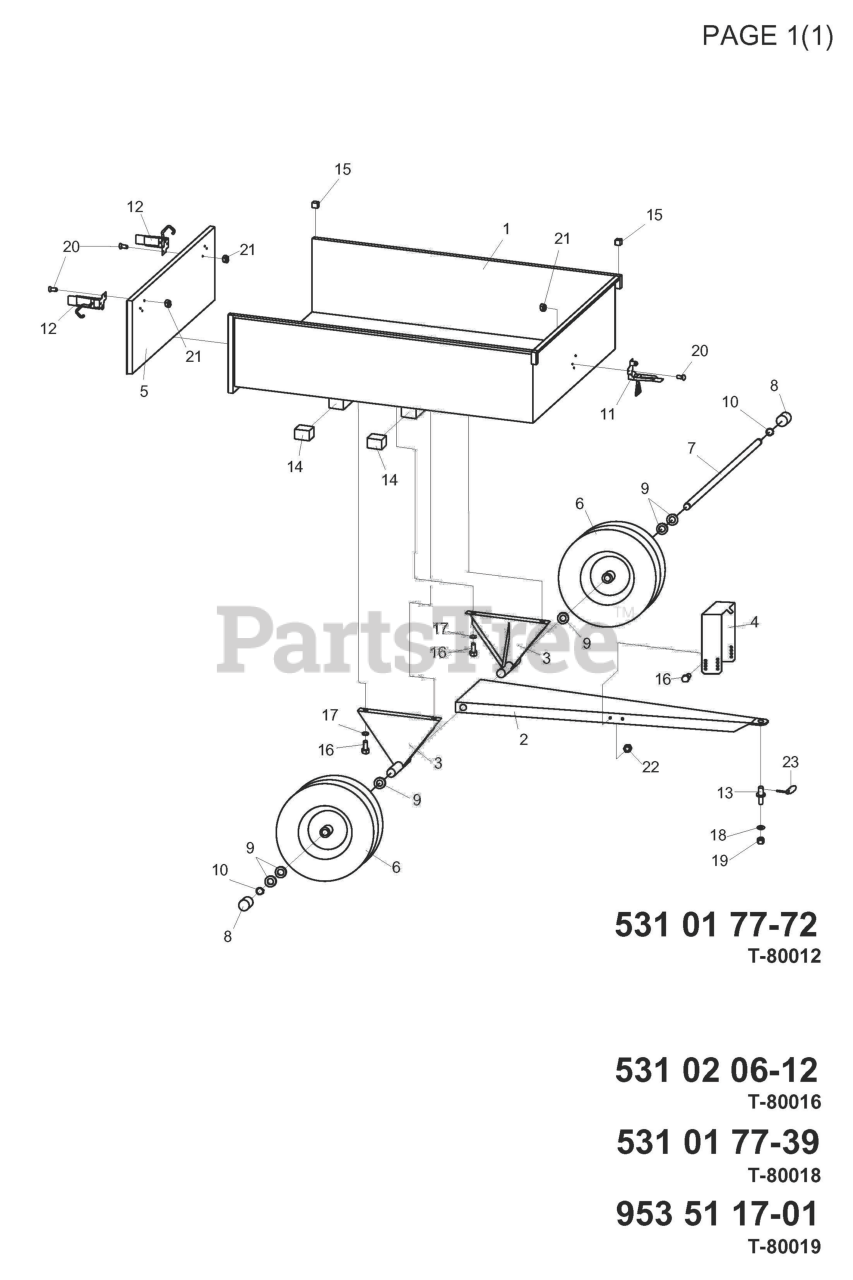

TRAY Parts Diagram

  • Title

2

Husqvarna 531005302

DRAW BAR

$

$

Not available

26

Husqvarna 531021229

DECAL

$

$

Not available

9

Husqvarna 531005309

WASHER

$

$

Not available

11

Husqvarna 531005311

RETAINER

$

$

Not available

6

Husqvarna 531005306

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 531005303

SUPPORT

$

$

Not available

5

Husqvarna 531021222

REAR DOOR

$

$

Not available

22

Husqvarna 531021132

NUT

$

$

Not available

5

Husqvarna 531005305

REAR PLATE YELLOW

$

$

Not available

1

Husqvarna 531021221

TRAY

$

$

Not available

1

Husqvarna 531005301

TRAY

$

$

Not available

4

Husqvarna 531005304

SUPPORT

$

$

Not available

16

Husqvarna 531021146

SCREW

$

$

Not available

14

Husqvarna 531005314

PROTECTOR

$

$

Not available

8

Husqvarna 531005308

DUST CAP

$

$

Not available

1

Husqvarna 531005318

TRAY

$

$

Not available

7

Husqvarna 531005307

SHAFT

$

$

Not available

17

Husqvarna 531021184

WASHER

$

$

Not available

6

Husqvarna 531021232

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 531005316

NUT

$

$

Not available

24

Husqvarna 531021228

DECAL

$

$

Not available

10

Husqvarna 531005310

CIRCLIP

$

$

Not available

5

Husqvarna 531005319

REAR DOOR

$

$

Not available

21

Husqvarna 531021226

NUT

$

$

Not available

13

Husqvarna 531005313

PIN

$

$

Not available

25

Husqvarna 531021227

DECAL

$

$

Not available

23

Husqvarna 531005217

PIN

$

$

Not available

18

Husqvarna 531021224

WASHER

$

$

Not available

20

Husqvarna 531021225

SCREW

$

$

Not available

15

Husqvarna 531005315

PROTECTOR

$

$

Not available

12

Husqvarna 531005312

RETAINER

$

$

Not available
