T F500 F - Electrolux/AYP Tiller (1998)

Tiller

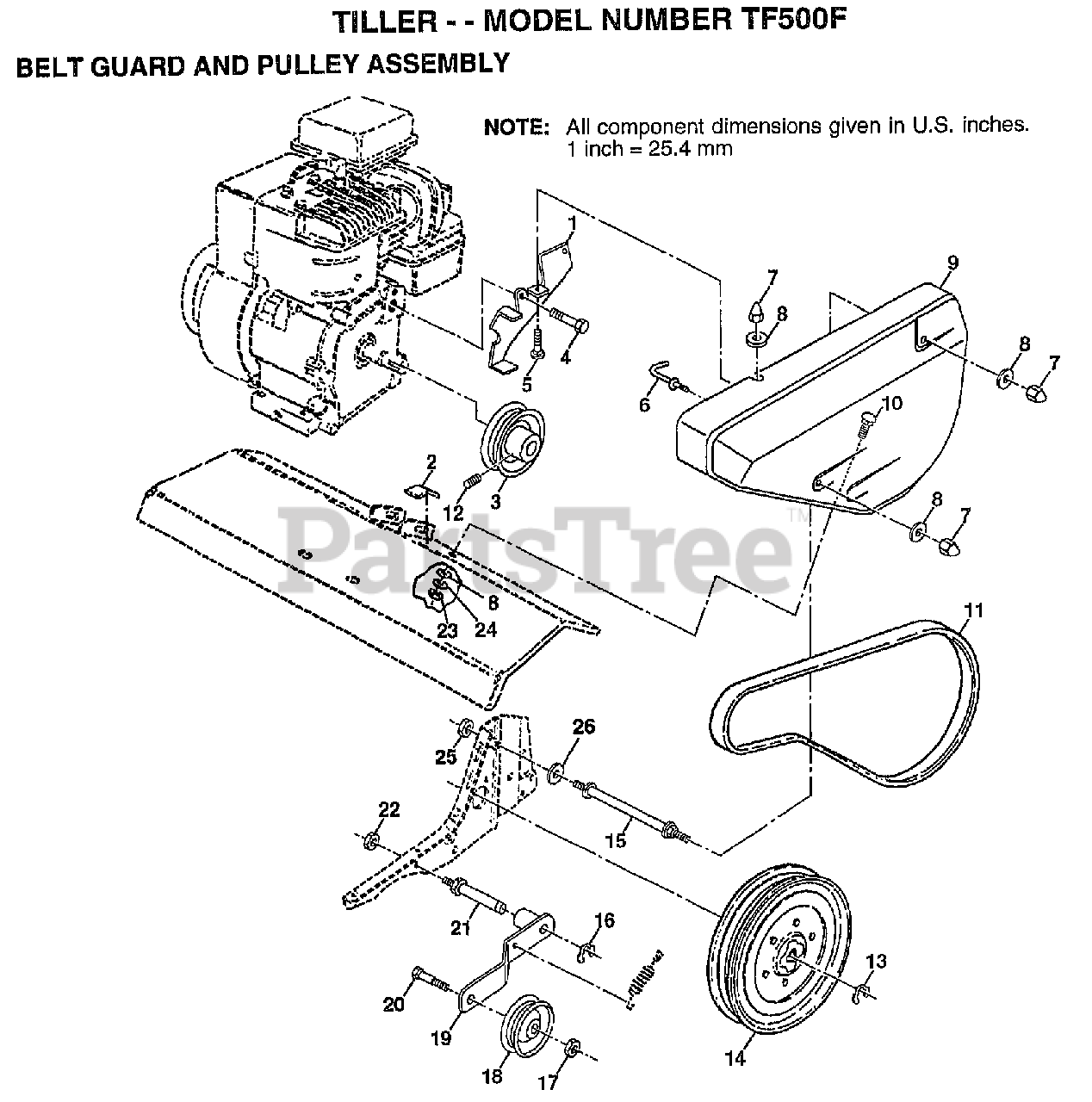

T F500 F - Electrolux/AYP Tiller (1998) > Parts Diagrams (6) > BELT GUARD AND PULLEY ASSEMBLY

  • Title
159233

1

BRKT GUARD BELT

Part# 159233

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.76

109227X

2

PAD IDLER TI

Part# 109227X (Superseded to 532109227)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

130812

3

ENGINE PULLEY

Part# 130812 (Superseded to 532130812)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74610812

4

BOLT.HEX.HEAD

Part# 74610812

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140404

5

BOLT

Part# 72140404 (Superseded to 872140404)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

121463X

6

KEEPER BELT

Part# 121463X

OEM Warranty Repair Part for Electrolux/AYP

Not available

104213X

7

NUT-CAP TI

Part# 104213X

OEM Warranty Repair Part for Electrolux/AYP

Not available

19091016

8

WASHER

Part# 19091016 (Superseded to 819091016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

131158X550

9

GUARD.PNT.BELT

Part# 131158X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140405

10

BOLT T

Part# 72140405 (Superseded to 872140405)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

9180R

11

V BELT STD

Part# 9180R

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $22.35

23230506

12

SET SCREW

Part# 23230506 (Superseded to 823230506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

12000028

13

SUB= 2267J

Part# 12000028 (Superseded to 812000028)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

151223

14

SHEAVE.TRANS

Part# 151223

OEM Warranty Repair Part for Electrolux/AYP

Not available

110528X

15

BOLT TI

Part# 110528X

OEM Warranty Repair Part for Electrolux/AYP

Not available

12000036

16

KLIP RING TI

Part# 12000036 (Superseded to 812000036)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73350600

17

NUT

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

161806

18

"PULLEY,IDLER"

Part# 161806

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $83.13

162290

19

"ARM, IDLER"

Part# 162290

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760620

20

SUB= 74780620

Part# 74760620 (Superseded to 874760620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

106968X

21

SHAFT IDLER TI

Part# 106968X

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350500

22

JAM NUT TI

Part# 73350500

OEM Warranty Repair Part for Electrolux/AYP

Not available

73220400

23

SUB= 50675

Part# 73220400 (Superseded to 873220400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040400

24

LOCKWASHER

Part# 10040400 (Superseded to 810040400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73510400

25

NUT

Part# 73510400

OEM Warranty Repair Part for Murray

Not available

19091416

26

WASHER

Part# 19091416 (Superseded to 819091416)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46
