T F500 F - Electrolux/AYP Tiller (1998)

Tiller

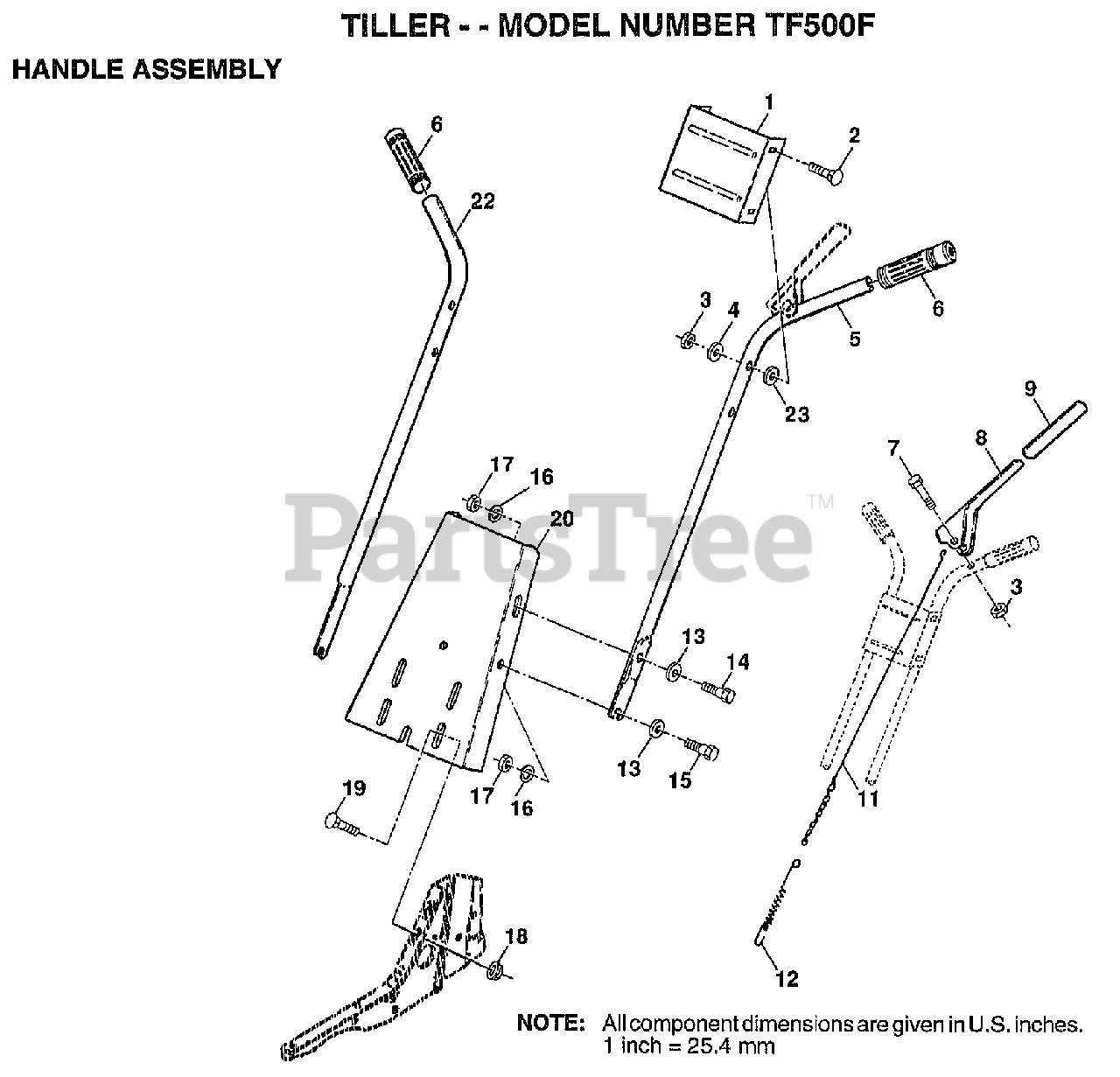

T F500 F - Electrolux/AYP Tiller (1998) > Parts Diagrams (6) > HANDLE ASSEMBLY

  • Title
137176X550

1

PANEL.CNTRL.HDLE.

Part# 137176X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140512

2

BOLT

Part# 72140512

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680500

3

SUB= 73690500

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

19111116

4

WASHER

Part# 19111116 (Superseded to 819111116)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

151473

5

HANDLE LH

Part# 151473

OEM Warranty Repair Part for Electrolux/AYP

Not available

9266R

6

SUB= 624A78

Part# 9266R

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760524

7

BOLT.HEX.5/16-1.5

Part# 74760524

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

3069J

8

SUB= 164937

Part# 3069J

OEM Warranty Repair Part for Electrolux/AYP

Not available

8206H

9

GRIP T

Part# 8206H (Superseded to 532008206)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

3067J

11

SUB= 100382K

Part# 3067J

OEM Warranty Repair Part for Electrolux/AYP

Not available

3070J

12

SPRING EXT TI

Part# 3070J

OEM Warranty Repair Part for Electrolux/AYP

Not available

19121414

13

WASHER

Part# 19121414 (Superseded to 819121414)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.03

74760516

14

SUB= 77394

Part# 74760516

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760512

15

BOLT

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

16

LOCKWASHER

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73220500

17

NUT.HEX.5/16-18

Part# 73220500 (Superseded to 873220500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

98000129

18

NUT

Part# 98000129 (Superseded to 898000129)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140506

19

BOLT

Part# 72140506 (Superseded to 872140506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

9209R550

20

PANEL.HANDLE.TILL

Part# 9209R550

OEM Warranty Repair Part for Electrolux/AYP

Not available

151474

22

HANDLE RH

Part# 151474

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131312

23

WASHER

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81
