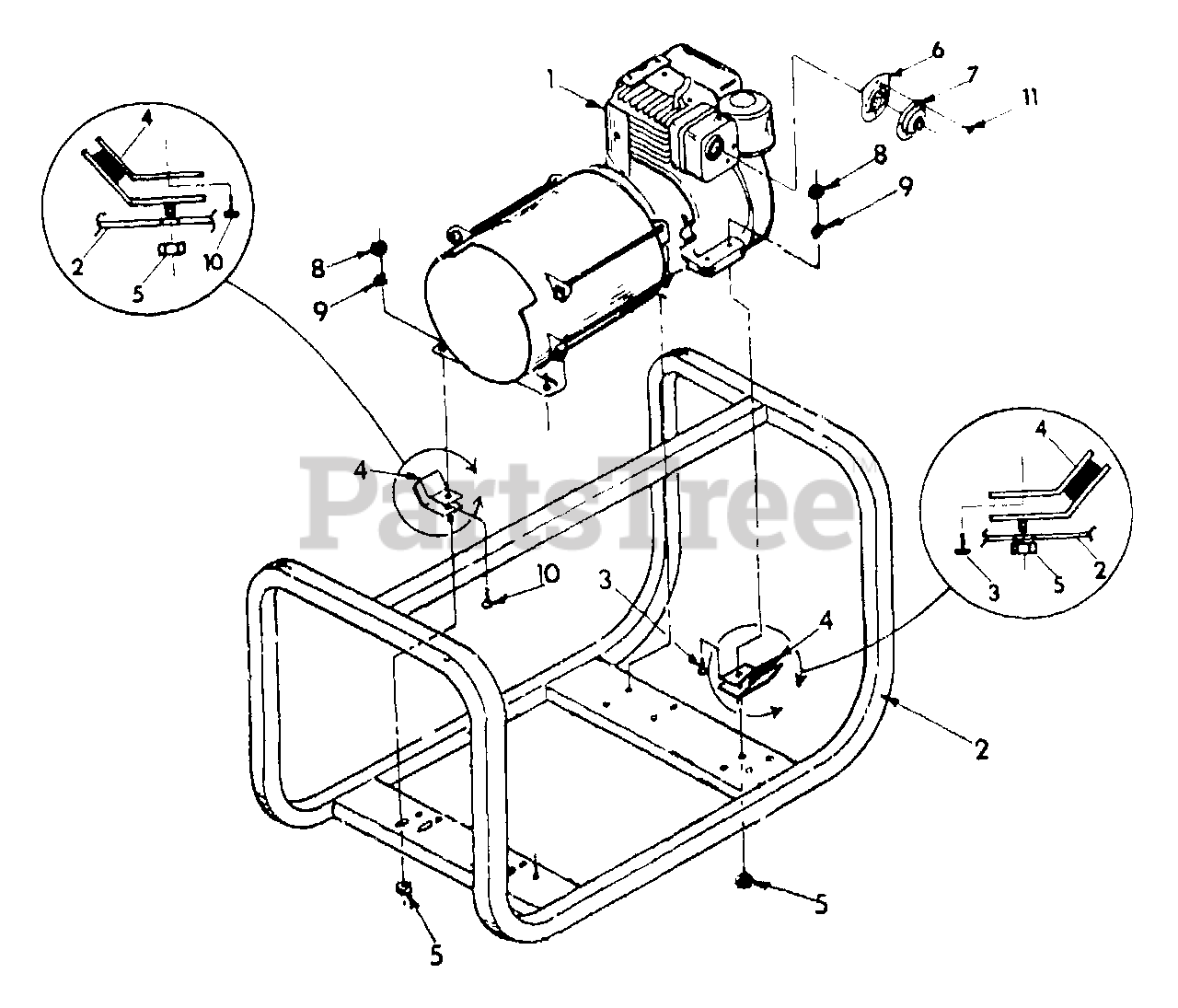

T4000 (9186-0) - Generac 4,000 Watt Portable Generator Engine And Cradle Parts Diagram

4,000 Watt Portable Generator

Engine And Cradle Parts Diagram

  • Title
1

Briggs & Stratton 76516

ENGINE-BRIGGS & STRATTON 8HP.

$

$

Currently unavailable

$

$

Currently unavailable

3

Briggs & Stratton 76222

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 40LG.
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 70642

VIBRATION MOUNT-45 DEGREE
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

5

Briggs & Stratton 52858

NUT-FLANGE-LOCK, M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 77601

SCREEN, SPARK ARRESTOR
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 77836

DEFLECTOR, SPARK ARRESTOR
(Superseded to 77836GS)

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 45771

HEX NUT-M8-1.25

$

$

Not available

9

Briggs & Stratton 22129

LOCKWASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 70644

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 20MM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 63063

SCREW, CRIMPTITE #8 x 1/4"

$

$

Not available
