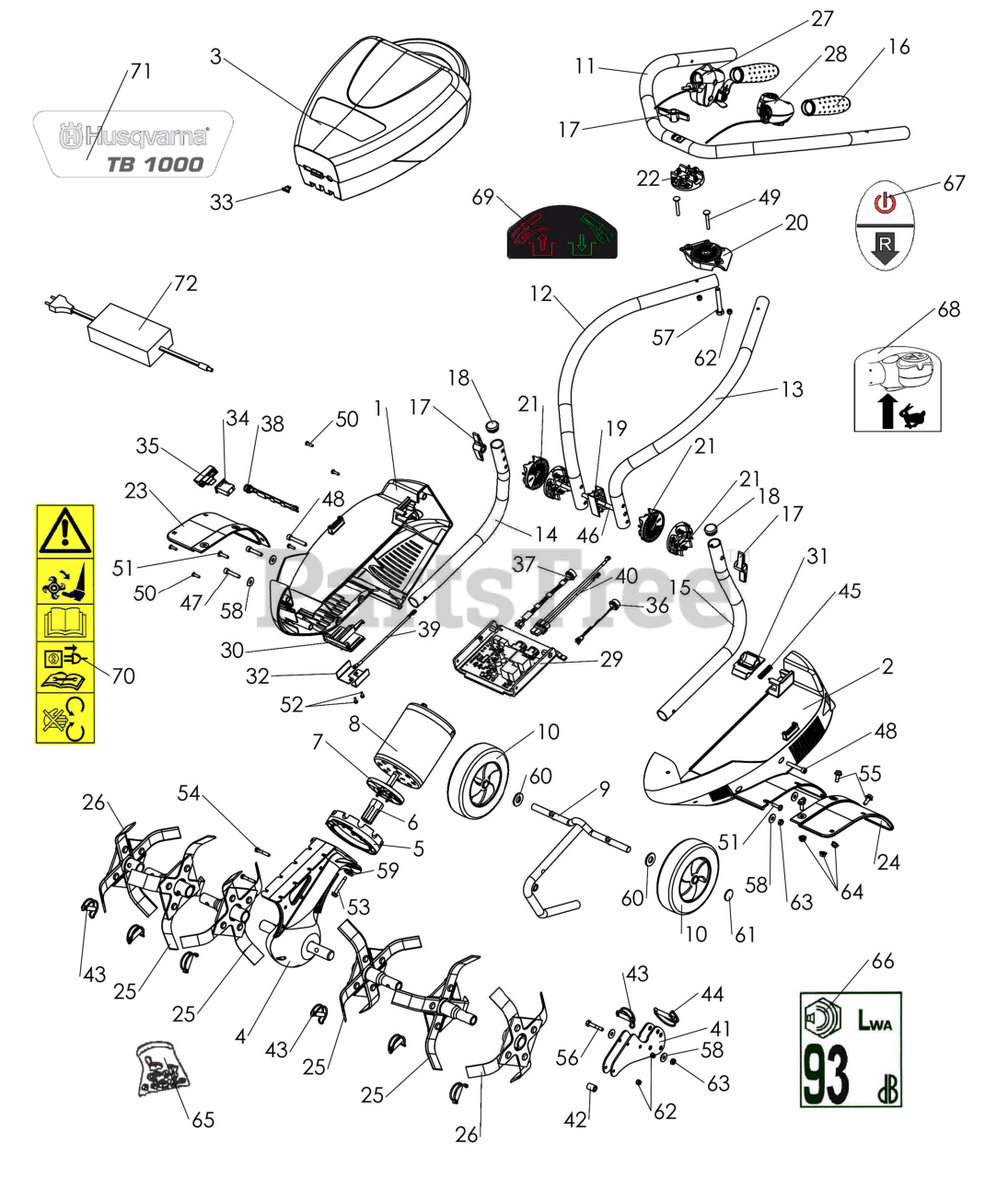

TB 1000 (965997001) - Husqvarna Cultivator, Electric (2009-01) Repair Parts Parts Diagram

Cultivator, Electric

Repair Parts Parts Diagram

  • Title

1

Husqvarna 522990401

Grey 627 right casing

Note: Corps droit Gris 627

$

$

Not available

2

Husqvarna 522990501

Grey 627 left casing

Note: Corps Gauche Gris 627

$

$

Not available

3

Husqvarna 522990701

Orange (RAL 2009) Battery pack
(Superseded to 966037101)

Note: Pack batterie Orange RAL 2009

$515.99

$

Usually ships in 3-10 days

0

4

Husqvarna 522990801

MBE transmission (1/18)

Note: Transmission Alu (1/18) MBE

$

$

Not available

5

Husqvarna 522990901

Engine/Transmission Adaptator

Note: Adaptateur Moteur/Transmission

$

$

Not available

6

Husqvarna 522991101

Engine hub

Note: Moyeu Moteur

$

$

Not available

7

Husqvarna 522991201

Fan Ø20

Note: Ventilateur Ø80

$

$

Not available

8

Husqvarna 522991301

Engine 800W 36V

Note: Moteur 800W 36V

$

$

Not available

9

Husqvarna 522991401

Wheel support + kickstand

Note: Support roue + béquille

$

$

Not available

10

Husqvarna 522991501

Black Wheel Ø125 Ø8

Note: Roue Ø150 jante noir ales. 12

$

$

Not available

11

Husqvarna 522991701

Grey 627 top handlebar

Note: Guidon haut Gris 627

$

$

Not available

12

Husqvarna 522991801

Grey 627 right intermediate handlebar

Note: Guidon intermédiaire droit Gris 627

$

$

Not available

13

Husqvarna 522991901

Grey 627 left intermediate handlebar

Note: Guidon intémédiaire gauche Gris 627

$

$

Not available

14

Husqvarna 522992001

Grey 627 right bottom handlebar

Note: Guidon bas droit Gris 627 (HVA)

$

$

Not available

15

Husqvarna 522992101

Grey 627 left bottom handlebar

Note: Guidon bas gauche Gris 627

$

$

Not available

16

Husqvarna 522992301

Rubber hand side grip

Note: Manchon caoutchouc

$

$

Not available

17

Husqvarna 531008462

Black handlebar tightening lever

Note: Poignée de serrage guidon noire

$

$

Not available

18

Husqvarna 522992401

Black plug Ø25

Note: Embout rond noir Ø25

$

$

Not available

19

Husqvarna 522992601

handlebar junction Ø25

Note: Liaison guidon Ø25

$

$

Not available

20

Husqvarna 522992701

inner handlebar junction

Note: Liaison guidon int.

$

$

Not available

21

Husqvarna 522992801

handlebar detent quadrant

Note: Secteur réglage guidon

$

$

Not available

22

Husqvarna 522992901

handlebard detent quadrant with flat

Note: Secteur réglage guidon + méplat

$

$

Not available

23

Husqvarna 522993001

Orange (RAL 2009) right protective fender

Note: Aile protection droite Orange RAL 2009

$

$

Not available

24

Husqvarna 522993101

Orange (RAL 2009) left protective fender

Note: Aile de protection gauche Orange RAL 2009

$

$

Not available

25

Husqvarna 531008458

Rotating blade 30x3 Ø240

Note: Fraise départ 30x3 Ø240

$

$

Not available

26

Husqvarna 531008460

Disk blade 30x3 Ø240

Note: Fraise disque 30x3 Ø240

$

$

Not available

27

Husqvarna 522993201

MBE right control

Note: Commande droite MBE

$

$

Not available

28

Husqvarna 522993301

MBE left control

Note: Commade gauche MBE

$

$

Not available

29

Husqvarna 522993701

card + heat sink 800W

Note: Ensemble Carte+radiateur 800w

$

$

Not available

30

Husqvarna 522993801

Thimbles support

Note: Support cosses

$

$

Not available

31

Husqvarna 522993901

Clip pack

Note: Clip pack

$

$

Not available

32

Husqvarna 522994101

Male Thimble V2

Note: Cosse Male V2

$

$

Not available

33

Husqvarna 522994201

Fuse 40A

Note: Fusible 40A

$

$

Not available

34

Husqvarna 522994301

Fuse support MTA 03.00331

Note: Porte fusible MTA 03.00331

$

$

Not available

35

Husqvarna 522994401

Cutout key

Note: Clef coupe circuit

$

$

Not available

36

Husqvarna 522996701

6 ways beam from card to casing

Note: Faisceau 6 voies de la carte au corps

$

$

Not available

37

Husqvarna 522996801

8 ways beam from card to casing

Note: Faisceau 8 voies de la carte au corps

$

$

Not available

38

Husqvarna 522996901

Charging beam plug

Note: Faisceau prise charge corps

$

$

Not available

39

Husqvarna 522997001

Positive plug cable from casing to security key

Note: Câble cosse positive du corps à la clef de sécurité

$

$

Not available

40

Husqvarna 522997101

Positive battery beam from security key to card

Note: Faisceau Batterie positif du corps à la clef de sécurité

$

$

Not available

41

Husqvarna 522994601

Kickstand MBE V2 support

Note: Support béquille MBE V2

$

$

Not available

42

Husqvarna 522994701

Spacer 6x12x17

Note: Entretoise 6x12x17

$

$

Not available

43

Husqvarna 519653360

Clip pin Ø8x32

Note: Goupille clip Ø8x32

$

$

Not available

44

Husqvarna 522994801

Clip pin Ø8x45

Note: Goupille clip Ø8x45

$

$

Not available

45

Husqvarna 522994901

Locking spring

Note: Ressort CP 8x34x10/10 galva

$

$

Not available

46

Husqvarna 522995001

Stud M8x175 / 30

Note: Goujon M8x175 / 30

$

$

Not available

47

Husqvarna 522995201

Screw CHC M6x30z

Note: Vis CHC M 6x30z

$

$

Not available

48

Husqvarna 522995101

Screw CHC M6x40z

Note: Vis CHC M 6x40z

$

$

Not available

49

Husqvarna 522995301

Screw TBCC M z

Note: Vis TBCC M5x40 z

$

$

Not available

50

Husqvarna 522995401

Screw WN 1451 K 40x14 Trox

Note: Vis WN 1451 K 40x14 Torx

$

$

Not available

51

Husqvarna 522995501

Screw WN5151 K50 x 16 z

Note: Vis WN5151 K50 x 16 z

$

$

Not available

52

Husqvarna 531008252

Screw PT K 35x12 WM 1452 z

Note: Vis PT K 35x12 WM 1452 z

$

$

Not available

53

Husqvarna 544207001

Self-tapping screw HM6x40 z (GC engine)

Note: Vis HM 6x40 z autotaraudeuse (moteur GC)

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 522995601

Screw HM 5x30z

Note: Vis HM 5x30z

$

$

Not available

55

Husqvarna 519653435

Screw HM 6x16 z notched shoulder

Note: Vis HM 6x16 z emb cr

$

$

Not available

56

Husqvarna 519653437

Screw HM6x35z

Note: Vis HM6x35z

$

$

Not available

57

Husqvarna 531008510

Screw HM 8x55 z cl 10.9

Note: Vis HM 8x55 z cl 10.9

$

$

Currently unavailable

58

Husqvarna 519653449

Washer M6x18x1.2 Z

Note: Rondelle M6x18x1.2 Z

$

$

Not available

59

Husqvarna 531008390

Washer 6.3x19x2.5 Z

Note: Rondelle 6.3x19x2.5 Z

$

$

Not available

60

Husqvarna 519653453

Washer M 12x27x2.5 Z

Note: Rondelle M 12x27x2.5 Z

$

$

Not available

61

Husqvarna 519653175

Starlock washer Ø12

Note: Enjoliveur Starlock Ø12

$

$

Currently unavailable

62

Husqvarna 522995701

Blocking nut M5 Z

Note: Ecrou frein M5 Z

$

$

Not available

63

Husqvarna 732261601

Blocking nut M 6 Z

Note: Ecrou frein M 6 Z

$

$

Not available

64

Husqvarna 519653432

Nut H M6 z notched shoulder

Note: Ecrou HM 6 z emb cr

$

$

Not available

65

Husqvarna 522996101

Bag of MBE screws

Note: Pochette visserie MBE

$

$

Not available

66

Husqvarna 501962501

level noise label

Note: Etiquette niveau de bruit

$

$

Not available

67

Husqvarna 522995801

On/Off/R label

Note: Autocollant On/Off/R

$

$

Not available

68

Husqvarna 522996001

Vmax label

Note: Etiquette Vmax

$

$

Not available

69

Husqvarna 519653085

Label "clutch lever"

Note: Etiq. "Embrayage"

$

$

Not available

70

Husqvarna 522996201

Safety label

Note: Etiquette sécurité

$

$

Not available

71

Husqvarna 522995901

Husqvarna TB 1000 label

Note: Etiquette Husqvarna TB 1000

$

$

Not available

72

Husqvarna 522996401

UL battery charger

Note: Chargeur UL

$

$

Not available
