TB 105 (11A-A22J766) - Troy-Bilt Walk-Behind Mower (2016) Axle Assembly Parts Diagram

Walk-Behind Mower

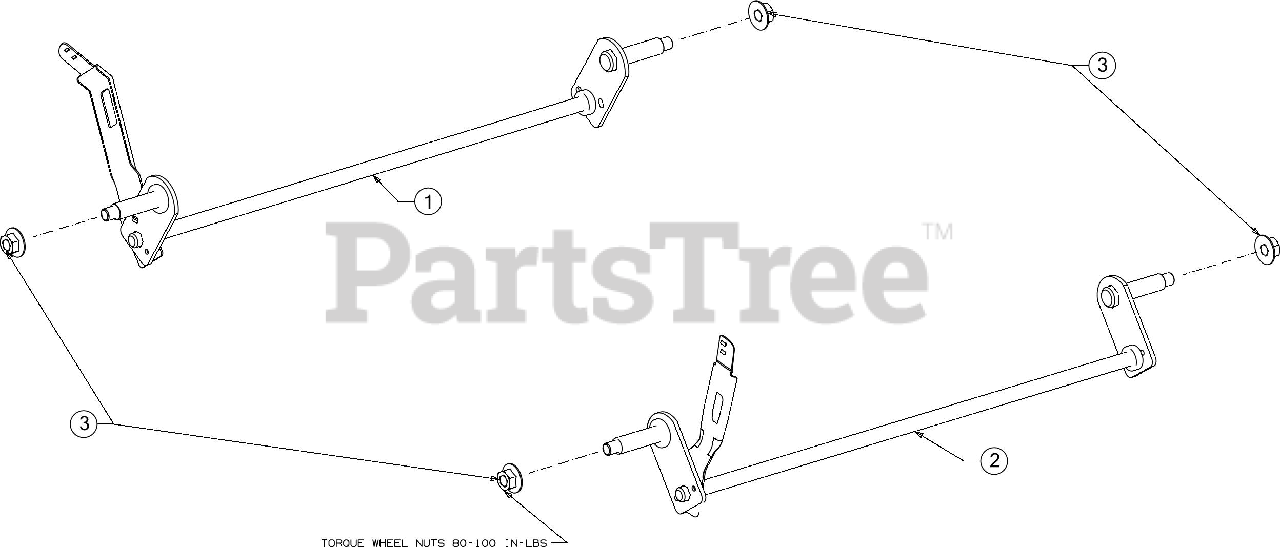

Axle Assembly Parts Diagram

  • Title

1

Troy-Bilt 911-04142A

8" REAR AXLE ASSEMBLY
(Superseded to 611-04142A)

$31.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 611-05107

7" FRONT AXLE ASSEMBLY
(Superseded to 911-05107A)

$

$

Not available

3

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0
