TB 138 PS (41AC138C966) - Troy-Bilt Pole Saw, Electric Pole Saw Assembly Parts Diagram

Pole Saw, Electric

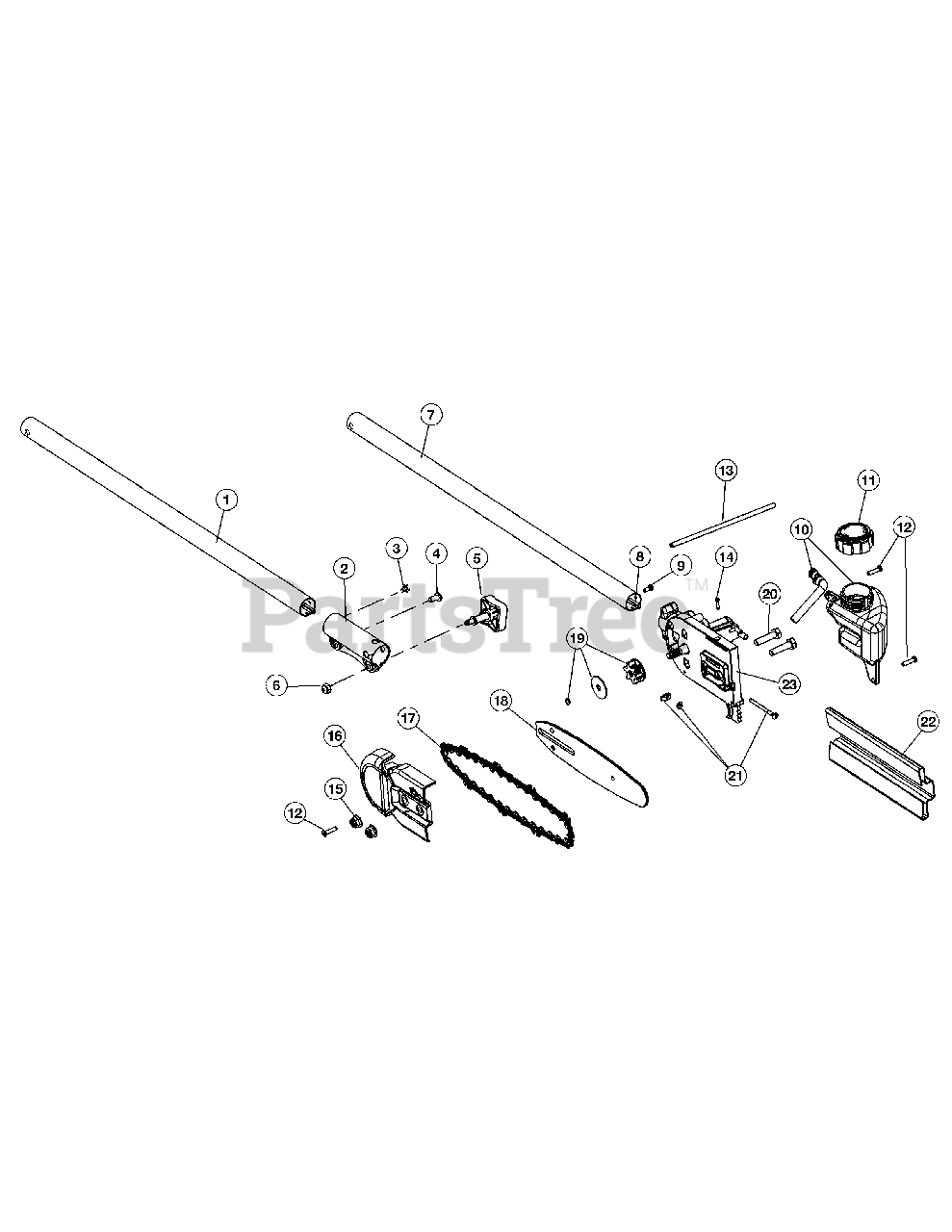

Pole Saw Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04352

Extension Boom

$85.99

$

In Stock, Qty 5

0

2

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 3-6)

$24.99

$

In Stock, Qty 10

0

3

Troy-Bilt 791-182057

Screw

$4.99

$

In Stock, Qty 7

0

4

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

5

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 753-05724

Drive Shaft Housing (Incl. 8)

$42.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 791-181166

Flexible Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-180288

Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-05586

Oil Tank Assembly

$32.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05587

Fuel Cap Assembly

$9.49

$

In Stock, Qty 6

0

12

Troy-Bilt 791-181345

Screw

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05588

Oil Line

$10.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-04696

Screw

$4.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 712-04063

Nut

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05593

Chain Guard

$14.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05592

Chain

$40.99

$

In Stock, Qty 10

0

18

Troy-Bilt 753-05594

Bar

$58.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-05595

Sprocket Assembly

$12.99

$

In Stock, Qty 13

0

20

Troy-Bilt 710-0528

Bolt

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-05597

Chain Tension Hardware Assembly

$10.99

$

In Stock, Qty 8

0

22

Troy-Bilt 731-05906

Chain Cover
(Superseded to 731-25531)

$7.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05599

Gearbox Assembly (Incl. 14 & 19)

$112.99

$

In Stock, Qty 6

0

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

Note: Not shown

$2.99

$

In Stock, Qty 20+

0
