TB 146 EC (21CK146G966) - Troy-Bilt Tiller (2011) General Assembly Parts Diagram

Tiller

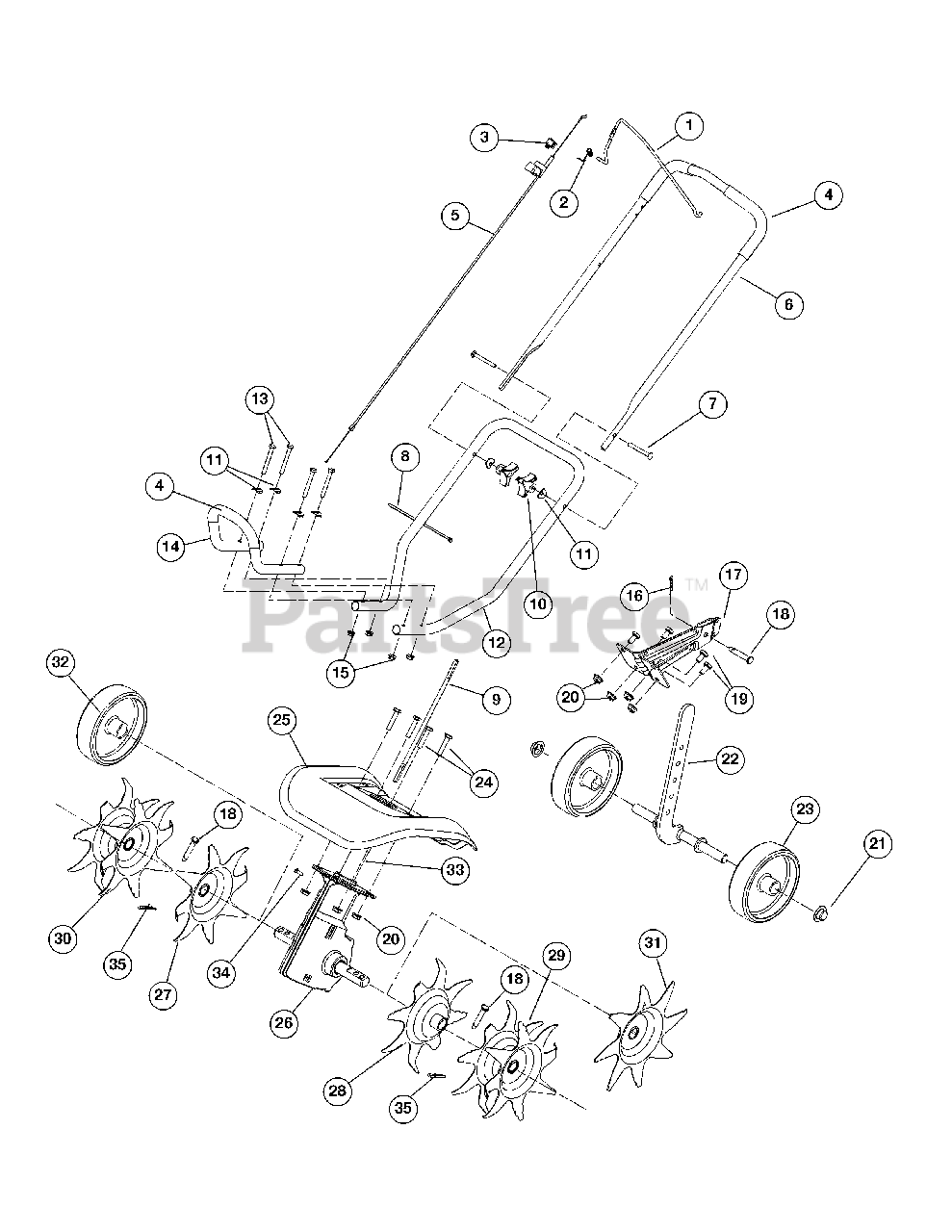

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04042

Throttle Control

$

$

Not available

2

Troy-Bilt 753-05940

Torsion Spring

$3.49

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182405

On/Off Switch

$9.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 720-0294

Foam Grip
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

5

Troy-Bilt 753-06050

Throttle Cable

$24.99

$

In Stock, Qty 8

0

6

Troy-Bilt 753-06319

Upper Handle

$21.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 753-04499

Flex Shaft

$27.99

$

In Stock, Qty 6

0

10

Troy-Bilt 791-182677

Knob

$13.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 936-0451

Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 749-1295A-0637

Lower Handle

$55.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-0805

Screw
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

14

Troy-Bilt 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-3004A

Lock Nut

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-04058

Tailpiece Bracket Assembly

$38.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 711-1017

Clevis Pin

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 710-3013

Cap Screw

$4.49

$

In Stock, only 2 left!

0

20

Troy-Bilt 912-3027

Lock Nut

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 753-04063

Wheel Support Bracket Assembly

$54.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 1917754

Wheel
(Superseded to 734-04261)

$19.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 6109

Bolt

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-06010

Tine Shield

$48.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-06063

Gear Box Assembly

$124.99

$

In Stock, Qty 8

0

27

Troy-Bilt 753-05986

Tine (Right Inner)

$40.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 753-05987

Tine (Left Inner)

$40.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 753-06015

Tine (Left Outer)

$25.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 753-06016

Tine (Right Outer)

$25.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 753-05988

Edger Tine

$19.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 753-04068

Edger Wheel

$17.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-06242

Drive Shaft Housing

$20.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-180288

Sleeve Retaining Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 753-06013

Bow Clip

$3.99

$

Usually ships in 3-6 days

0
