TB 15 CS (41ADT15C066) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

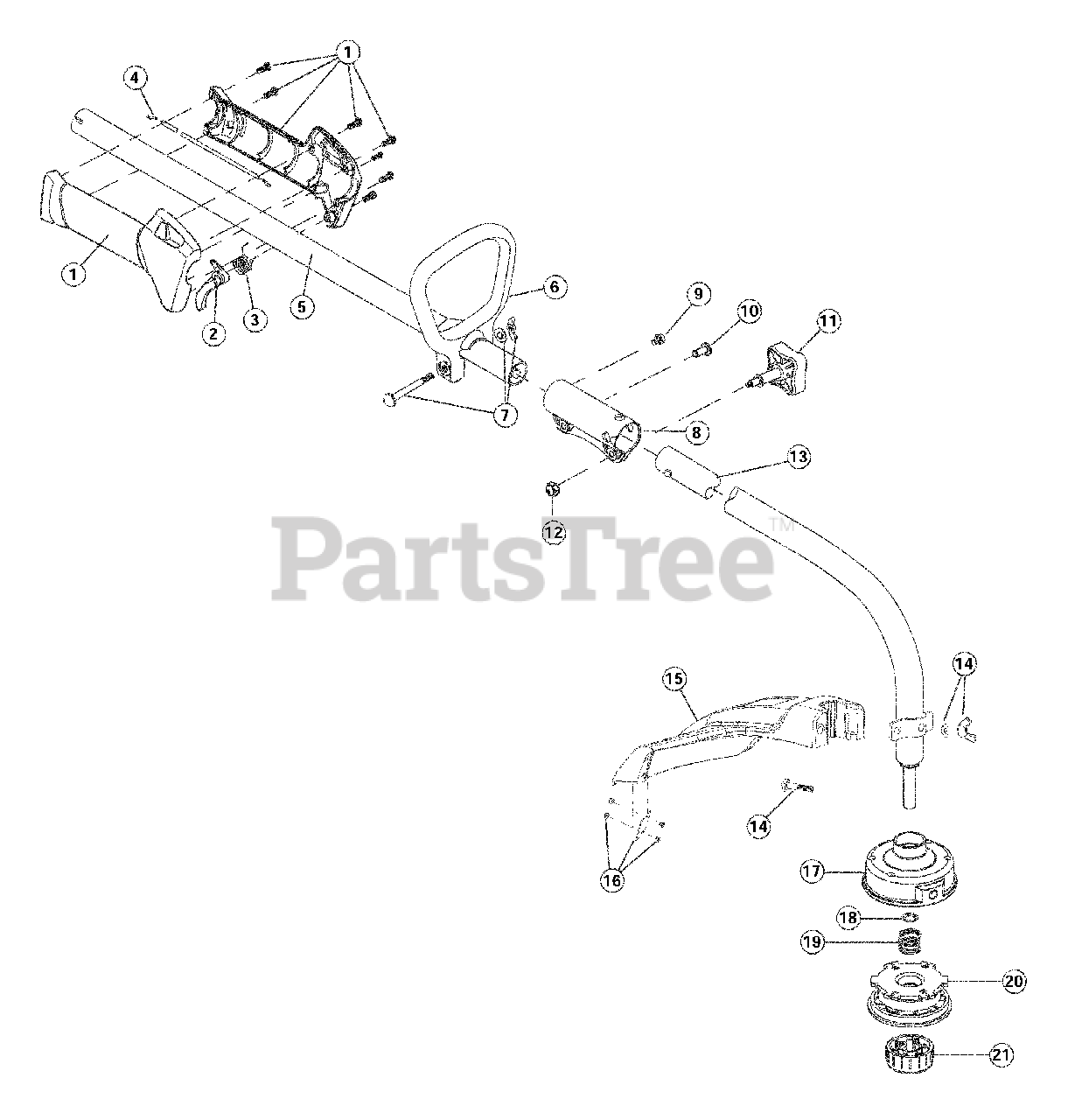

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04114

Throttle Housing Assembly

Note: (Includes 2 & 3)

$

$

Not available

2

Troy-Bilt 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-04115

Throttle Trigger

$10.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-04278

Throttle Cable
(Superseded to 746-04085A)

$11.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 791-153064

D-Handle

Note: (Includes 7)

$

$

Not available

7

Troy-Bilt 791-153317

Handle Hardware
(Superseded to 791-181587)

$20.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Includes 9-12)

$24.99

$

In Stock, Qty 8

0

9

Troy-Bilt 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

11

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 753-04508

Lower Drive Shaft Housing Assembly

$85.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-04282

Guard Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 753-04283

Guard

Note: (Includes 16)

$54.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 5

0

17

Troy-Bilt 753-04284

Outer Spool Assembly

Note: (Includes 18)

$29.99

$

In Stock, Qty 17

0

18

Troy-Bilt 791-610660

Retainer

$5.49

$

In Stock, Qty 8

0

19

Troy-Bilt 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-1155

Inner Reel

$24.99

$

In Stock, Qty 16

0

21

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$14.99

$

In Stock, Qty 19

0

Troy-Bilt 791-153577B

Reel and Line Assembly - Optional Accessories

Note: Not shown

$29.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-682075B

Shoulder Strap Assembly - Optional Accessories

Note: Not shown

$41.99

$

Usually ships in 3-6 days

0
