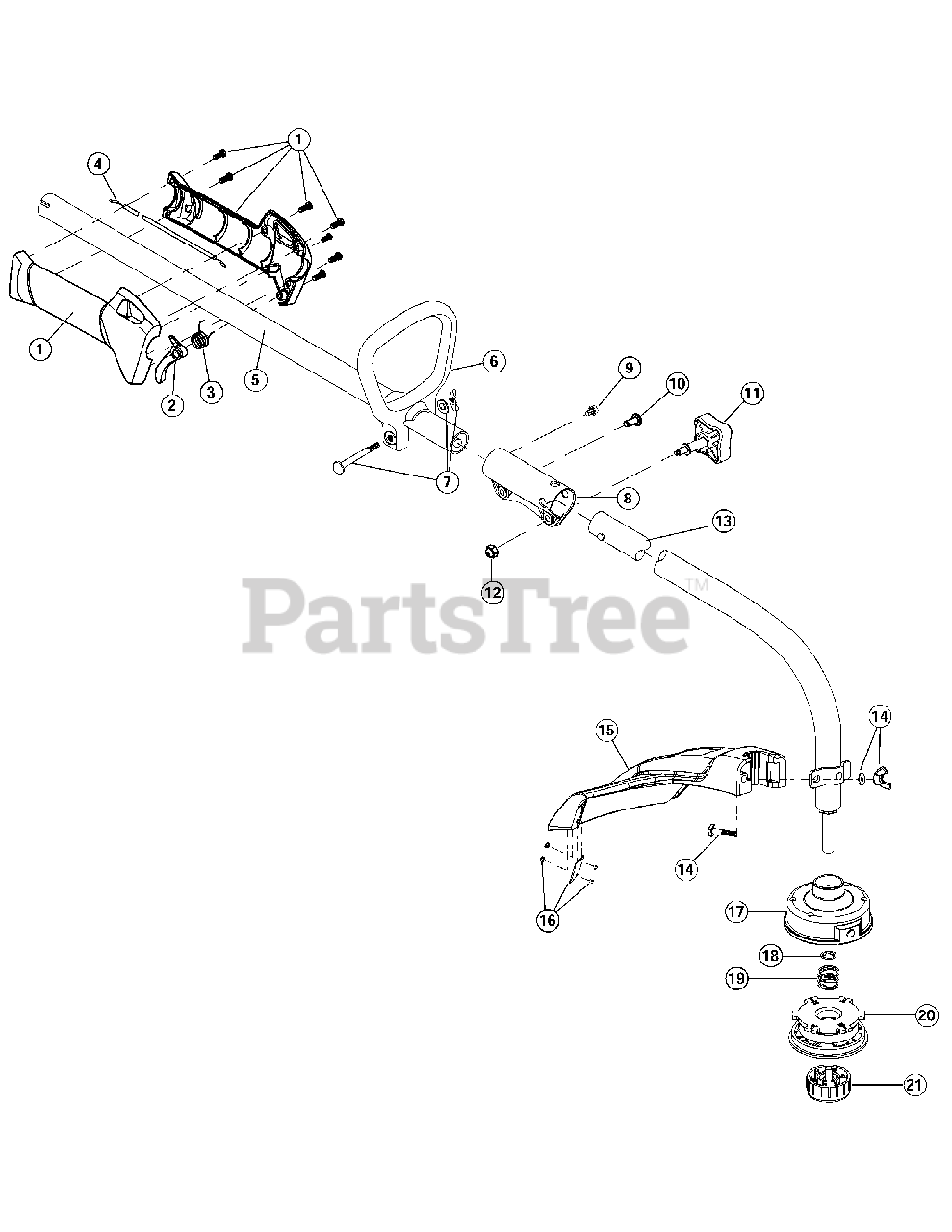

TB 15 CS (41ADT15C966) - Troy-Bilt String Trimmer Boom & Trimmer Parts Diagram

String Trimmer

Boom & Trimmer Parts Diagram

  • Title

1

MTD 753-04114

Throttle Housing Assembly (includes 2 & 3)

$

$

Not available

2

Troy-Bilt 791-610314

Throttle Trigger

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-04115

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-04278

Throttle Cable
(Superseded to 746-04085A)

$9.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

6

Troy-Bilt 791-153064

D-Handle (includes 7)

$

$

Not available

7

Troy-Bilt 791-153317

Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-1190

Split Boom Coupler (includes 9-12)

$21.99

$

In Stock, Qty 6

0

9

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

11

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

13

Troy-Bilt 753-04508

Lower Drive Shaft Housing Assembly

$76.99

$

In Stock, Qty 8

0

14

Troy-Bilt 753-04282

Guard Mounting Hardware

$23.99

$

In Stock, Qty 6

0

15

Troy-Bilt 753-04283

Guard (includes 16)

$47.99

$

In Stock, Qty 5

0

16

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 753-04284

Outer Spool Assembly (includes 18)

$26.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

Troy-Bilt 791-153577B

Reel and Line Assembly (optional accessories - not shown)

$26.99

$

In Stock, only 4 left!

0

Troy-Bilt 791-682075B

Shoulder Strap Assembly (optional accessories - not shown)

$36.99

$

Usually ships in 3-6 days

0
