TB 2 BV EC (41AS2BVG966) - Troy-Bilt Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

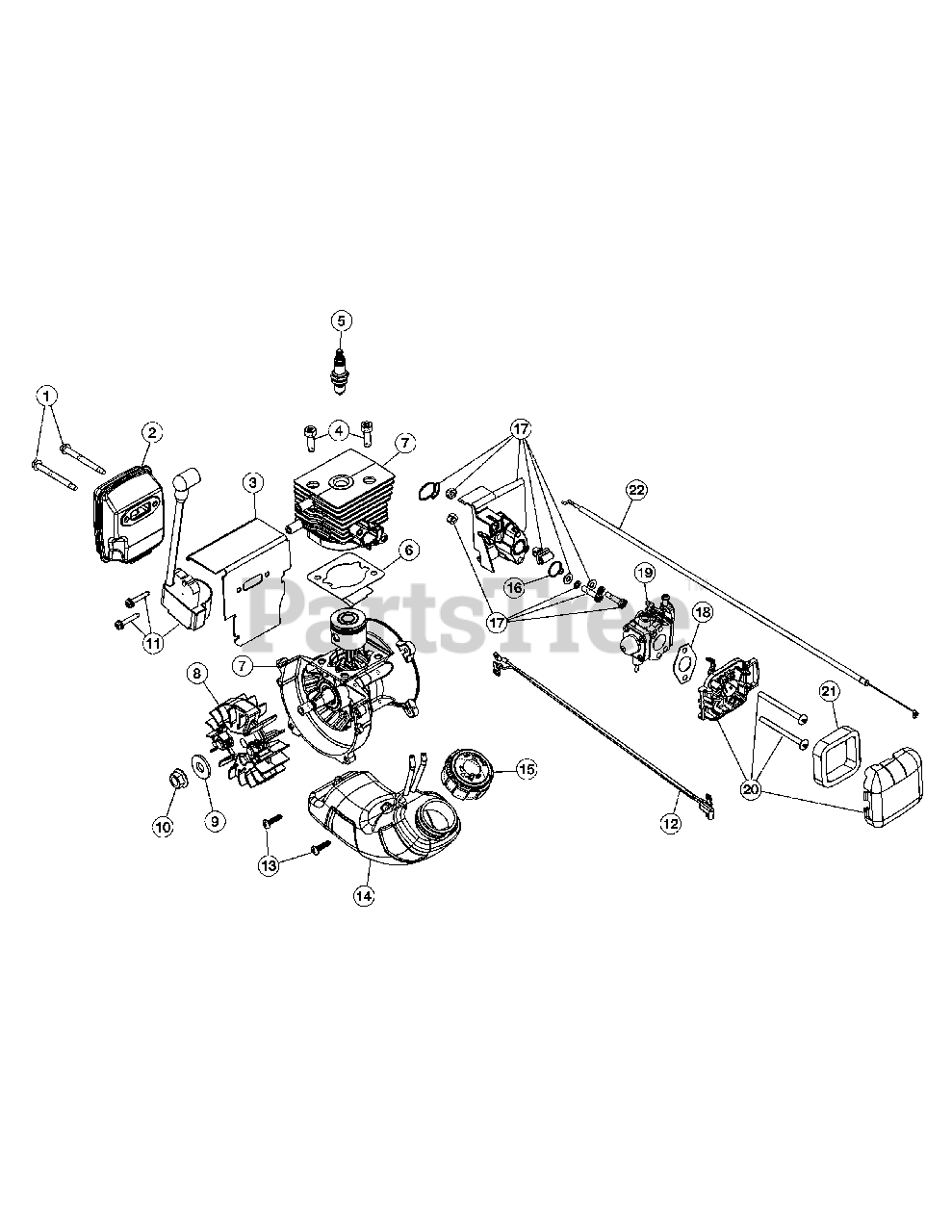

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04188A

Muffler Screws

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06027

Muffler Assembly (Incl. 1 & 3)

$43.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05946

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04715

Screw

$7.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06252

Cylinder Gasket

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06687

Shortblock Assembly (Incl. 4-6 & 8-11)

$98.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06175

Flywheel Assembly

$20.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 736-04107

Washer

$4.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 712-04137

Nut

$7.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 753-06443

Module Assembly

$28.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 753-05949

Lead Wire

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-06720

Fuel Tank Assembly (Incl. 13 & 15)

$26.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 791-182529

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-06185

Insulator O-Ring

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06189

Insulator Assembly (Incl. 16)

$8.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06253

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-06442

Carburetor Assembly (Incl. 18)

Note: 6/13/2011 & Before

$41.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-06753

Carburetor Assembly (Incl. 18) (Zama)

Note: 6/13/2011 & After

$37.99

$

In Stock, Qty 6

0

20

Troy-Bilt 753-06689

Aircleaner Assembly (Incl. 21)

$

$

Not available

21

Troy-Bilt 791-181757

Air Filter

$4.49

$

In Stock, Qty 14

0

22

Troy-Bilt 753-06709

Throttle Cable
(Superseded to 753-06690)

$8.49

$

Usually ships in 3-6 days

0
