TB 2 MB (41CS2MEB866) - Troy-Bilt Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

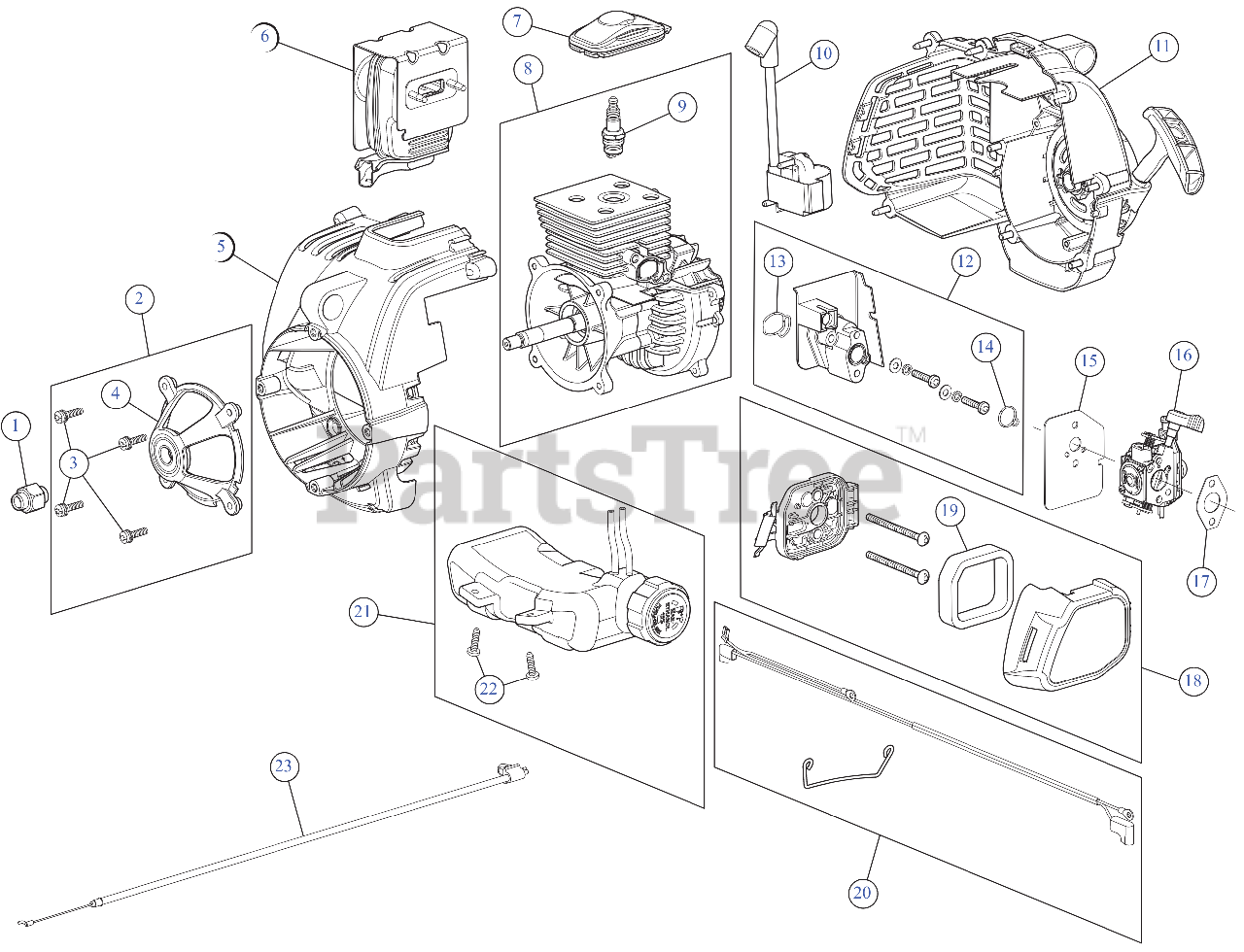

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05705

FLYWHEEL ADPT

$9.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 753-08280

BEARING HLDR ASSEMBLY

Note: (Incl. 3 and 4)

$12.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04742A

SCREW M5X0.8-20

Note: (x4)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-08281

BEARING HOLDER

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-08282

ENGINE COVER FRT

$16.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 751-14556

MUFFLER ASSEMBLY

$27.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06362

SPARK PLUG COVER

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-08283

SHORT BLOCK

Note: (Incl. 9)

$89.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 794-00097

SPARK PLUG 14MM
(Superseded to 753-06847)

$7.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-08369

MODULE INT

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-08370

ENGINE CVR RR

$30.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 753-08287

INTAKE ASSEMBLY BLOWER

Note: (Incl. 13 and 14)

$12.99

$

In Stock, Qty 6

0

13

Troy-Bilt 753-06184

O-RING

$3.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-06185

O-RING

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 721-04882

CARBURETOR GASKET

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-06288

CARBURETOR

$39.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06253

GASKET CARB

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06500

AIRCLEANER COVER ASSEMBLY

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-08289

WIRE LEAD BLOWER

$10.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 753-08288

FUEL TANK ASSEMBLY

Note: (Incl. 22)

$22.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181930

SCREW:10-6 x .75

Note: (x2)

$7.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 946-05128

THROTTLE CABLE

$3.99

$

Usually ships in 3-6 days

0
