TB 2 SC (41AS2SCG966) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

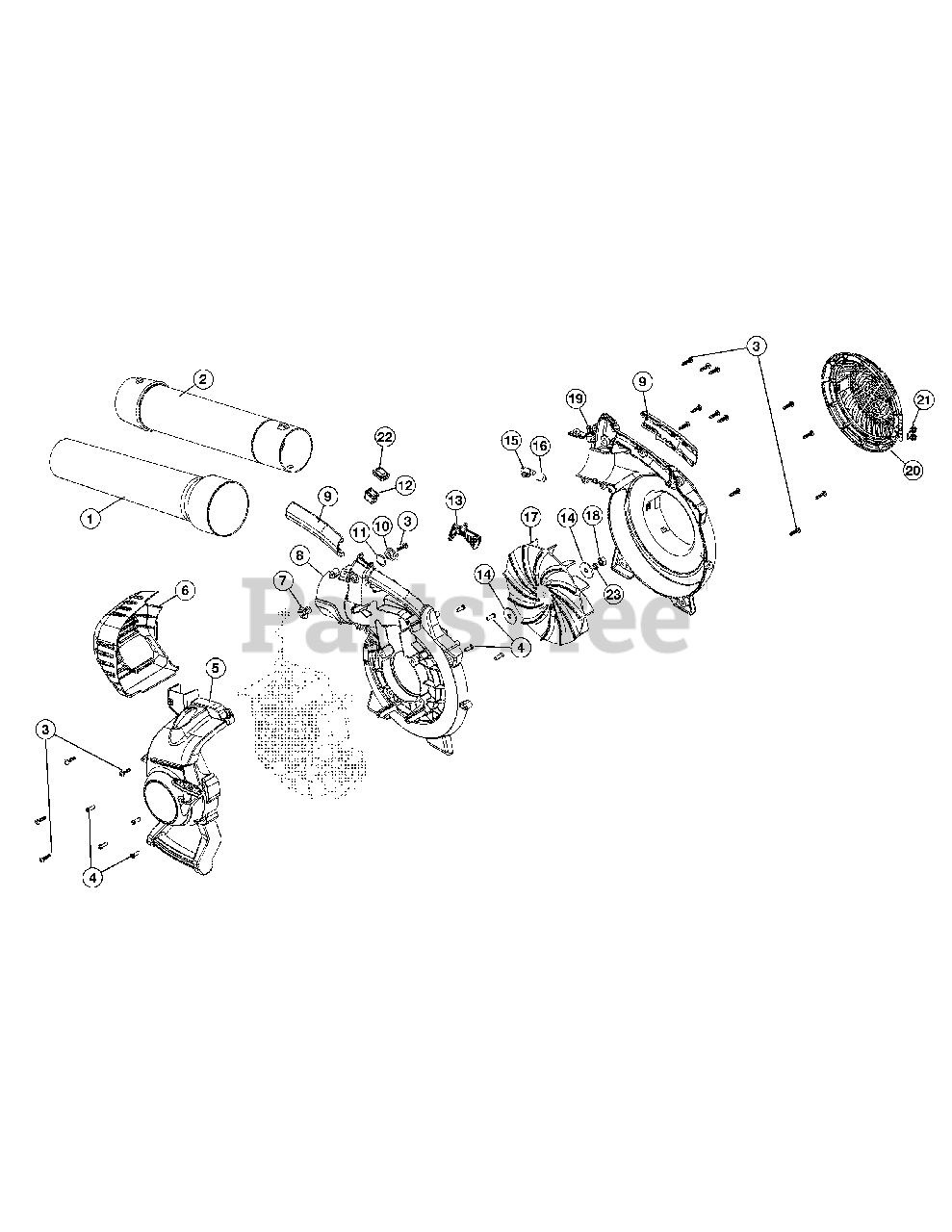

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05937

Lower Tube

$18.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05936

Upper Tube

$19.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-181862

Screw

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05943

Engine Cover Assembly

Note: (Incl. Ref No. 3 & 4)

$30.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05944

Muffler Cover Assembly

Note: (Incl. Ref No. 3)

$

$

Not available

7

Troy-Bilt 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05921

Impeller Housing
(Superseded to 753-06693)

Note: (Incl. Ref No. 9)

$17.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 753-05930

Throttle Trigger

$

$

Not available

14

Troy-Bilt 753-05928

Washer

$2.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05929

Impeller

$13.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 753-05927

Nut

$3.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-05920

Impeller Housing

Note: (Incl. Ref No. 9)

$36.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-05917

Intake Cover

$7.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-05942

Switch Cover

$

$

Not available

23

Troy-Bilt 736-04110A

Lock Washer

$5.49

$

Usually ships in 3-6 days

0
