TB 2000 (41ADTB 2G063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

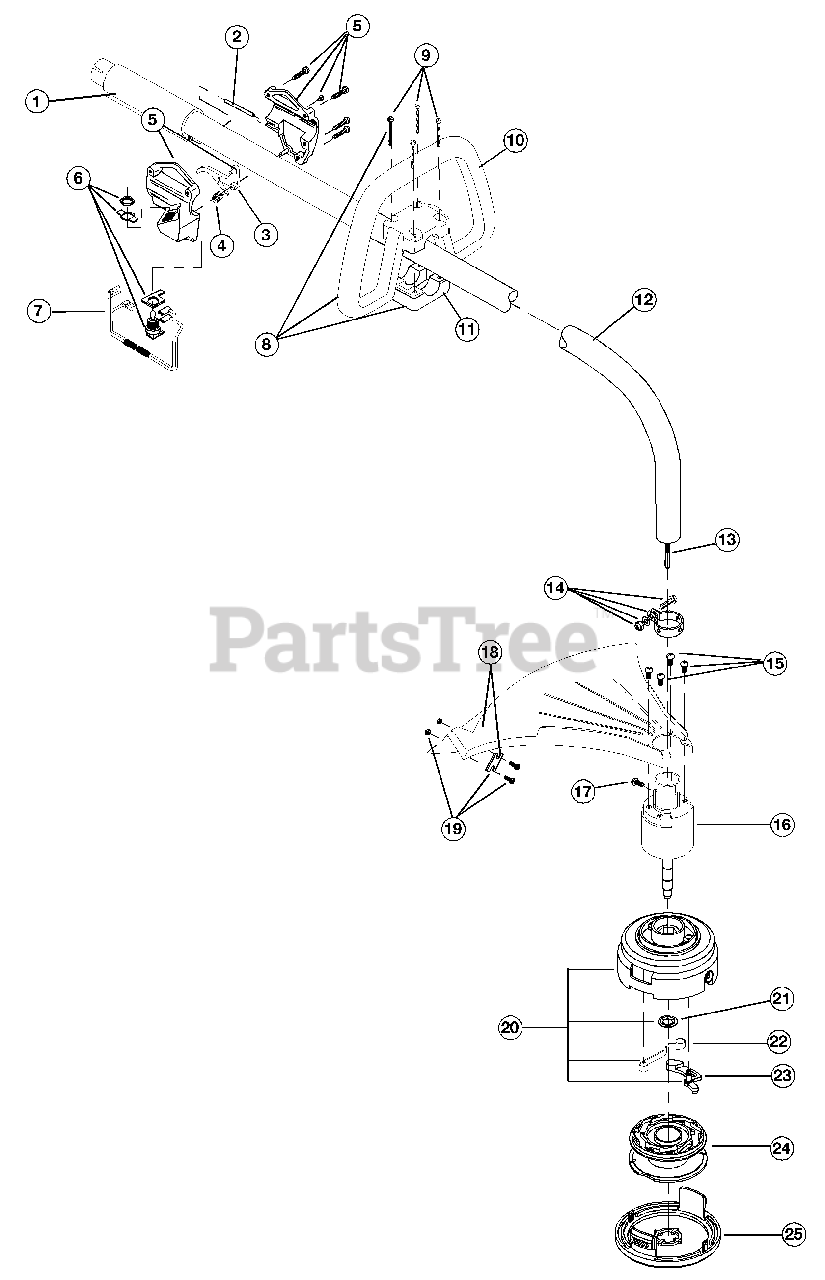

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 791-180866

Grip

$

$

Not available

2

Troy-Bilt 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, Qty 6

0

3

Troy-Bilt 791-181556

Throttle Trigger
(Superseded to 791-181807)

$9.49

$

In Stock, Qty 9

0

4

Troy-Bilt 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

5

MTD 791-182603

Throttle Trigger Assembly

Note: (includes 3 & 4)

$

$

Not available

6

Troy-Bilt 791-180252

Switch Assembly

$

$

Not available

7

Troy-Bilt 791-181690

Wire Lead Assembly

$

$

Not available

8

MTD 791-180869

Loop Handle Assembly

Note: (includes 9-11)

$

$

Not available

9

Troy-Bilt 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-182167

Loop Handle

$76.99

$

Usually ships in 3-6 days

0

11

MTD 791-182168

Bottom Clamp

$

$

Not available

12

Troy-Bilt 791-182838

Drive Shaft Housing Assembly

$

$

Not available

13

Troy-Bilt 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$75.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

16

MTD 791-182870

Bushing Housing Assembly

$

$

Not available

17

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

18

Troy-Bilt 791-180341

Shield and Blade Assembly

Note: (includes 19)

$53.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

20

MTD 791-182841

Outer Spool w/ Retainer

Note: (includes 21-23)

$

$

Not available

21

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 791-182842

Pawl Spring

$

$

Not available

23

MTD 791-182843

Ratchet Pawl

$

$

Not available

24

MTD 791-182844

Inner Reel

$

$

Not available

25

MTD 791-182845

Spool Cover

$

$

Not available

Troy-Bilt 791-49U0134L063

Replacement Line, 0.080 Diameter

Note: Optional Accessory; not shown

$

$

Currently unavailable

Troy-Bilt 791-49U0333L063

Reel and Line Assembly

Note: Optional Accessory; not show

$

$

Currently unavailable

MTD 791-182840

Automatic Line Feed Head Assembly

Note: (includes 20-25); Optional Accessory; not shown

$

$

Not available

Troy-Bilt 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Optional Accessory; not shown

$36.99

$

Usually ships in 3-6 days

0
