TB 2044 XP (41CDL2PC766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

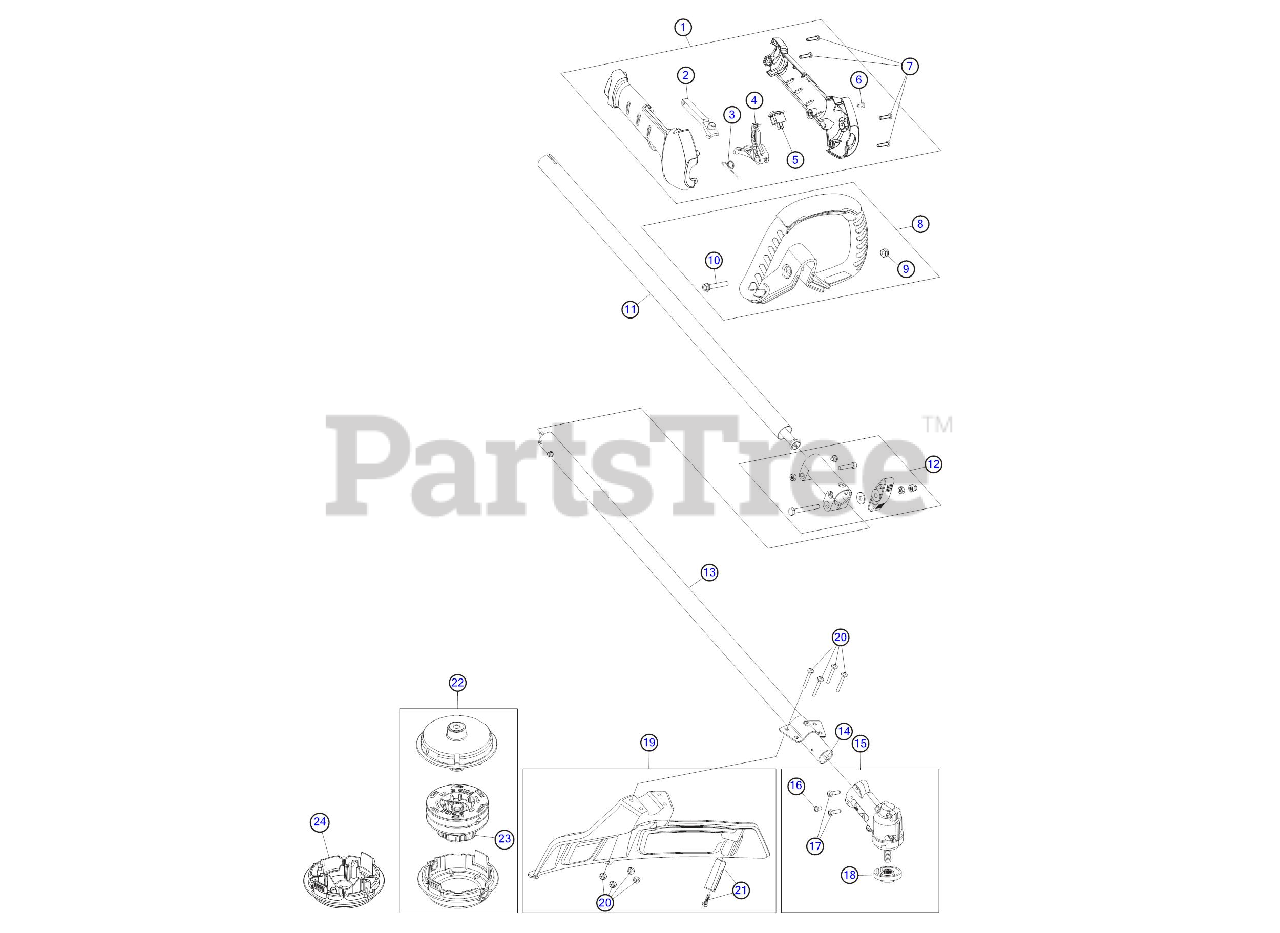

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08564

Throttle Housing Assembly

Note: (Incl. 2-7)

$25.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-08378

Throttle Lockout
(Superseded to 731-08433C-10)

$3.49

$

In Stock, Qty 11

0

3

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 731-11788-10

Throttle Trigger

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 791-182405

Switch Assembly

$11.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 791-182519

Grip Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04508

Screw

$4.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-06889

D-Handle Assembly

Note: (Incl. 9 & 10)

$9.99

$

In Stock, Qty 8

0

9

Troy-Bilt 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-06040

Bolt

$7.49

$

In Stock, Qty 15

0

11

Troy-Bilt 753-06682

Upper Drive Shaft Housing

$19.99

$

In Stock, Qty 8

0

12

Troy-Bilt 753-06886

Split Boom Coupler

$11.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 753-08162

Lower Drive Shaft Housing Assembly

Note: (Incl. 14)

$

$

Not available

14

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 19

0

15

Troy-Bilt 753-08180

Gearbox Assembly

Note: (Incl. 16-18)

$48.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 791-182519

Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 18

0

18

Troy-Bilt 748-05052

Cutting Head Driver

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-05820

Shield Assembly

Note: (Incl. 20 & 21)

$25.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 753-06125

Shield Mounting Screws and Nuts

$7.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 753-05821

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 841-012478S

Cutting Head Assembly

Note: (Incl. 23)

$20.99

$

In Stock, Qty 9

0

23

Troy-Bilt 753-08563

Bump Knob

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 841-032560S

Cap Assembly (with Plug)

$11.99

$

In Stock, Qty 18

0

Troy-Bilt 753-05756

Cutting Blades

Note: (Not Shown)

$8.49

$

In Stock, Qty 11

0
