TB 21 EC (41ADT21C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

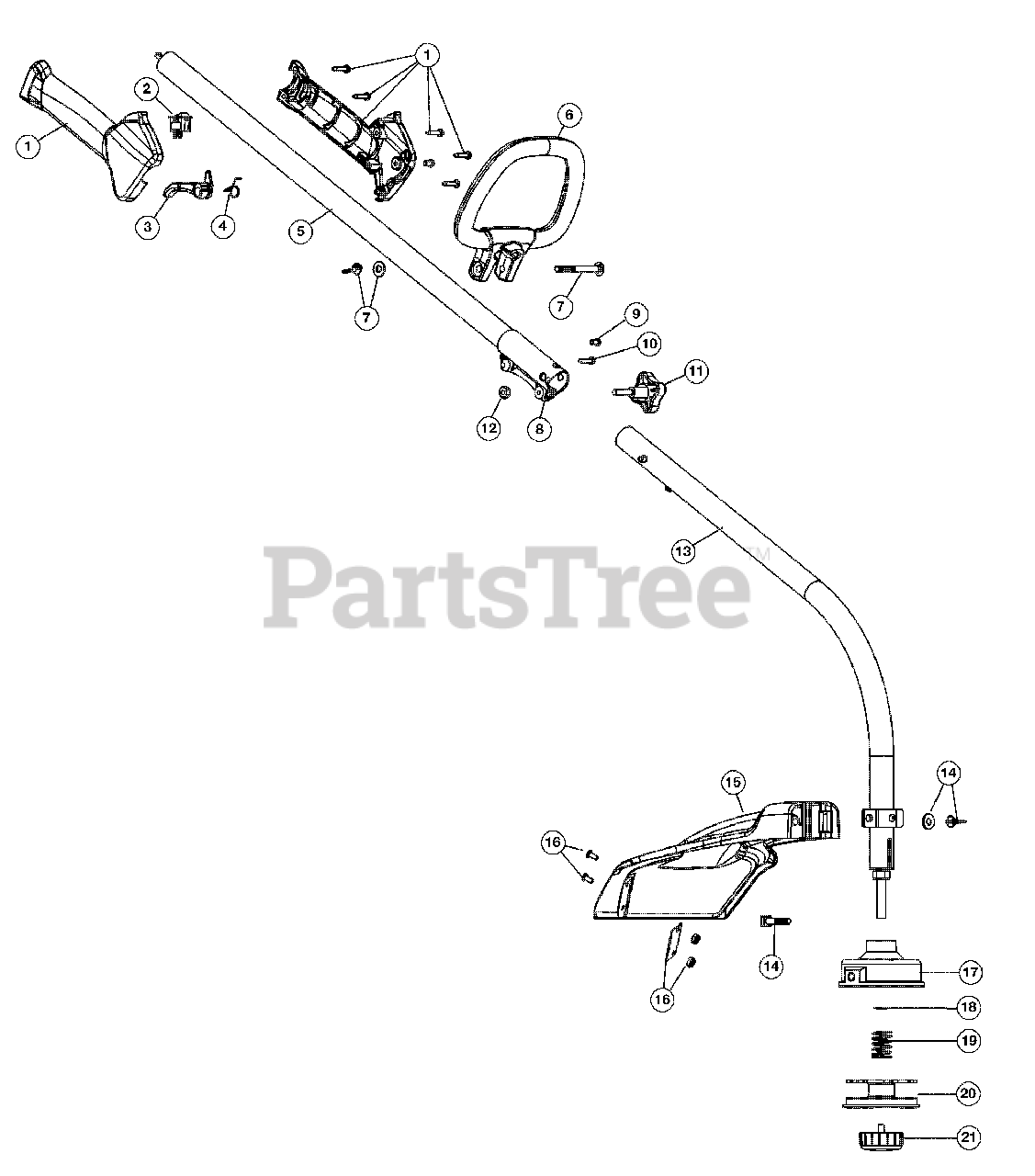

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (Incl. Ref 2-4)

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 791-182405

Switch

$11.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 7

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-04344

Upper Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-05461

D-Handle

Note: (Incl. Ref 7)

$23.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181587

D-Handle Hardware Assembly

$20.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref 9-12)

$24.99

$

In Stock, Qty 8

0

9

Troy-Bilt 791-182057

Anti Rotation Screw

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

11

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-04018A

Knob Retainer Nut

$4.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 753-04508

Lower Shaft Housing Assembly

$85.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-04282

Shield Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 753-04283

Shield Assembly

Note: (Incl. Ref 16)

$54.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 5

0

17

Troy-Bilt 753-04284

Outer Spool Assembly

Note: (Incl. Ref 18)

$29.99

$

In Stock, Qty 17

0

18

Troy-Bilt 791-610660

Retainer

$5.49

$

In Stock, Qty 8

0

19

Troy-Bilt 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-1155

Inner Reel

$24.99

$

In Stock, Qty 16

0

21

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$14.99

$

In Stock, Qty 19

0

Troy-Bilt 953-1156

Reel & Line Assembly

Note: Optional, Not shown

$33.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-05778

Fixed Line Insert

Note: Optional, Not shown

$8.49

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180920

.095 Replacement Line

Note: Optional, Not shown

$

$

Currently unavailable
