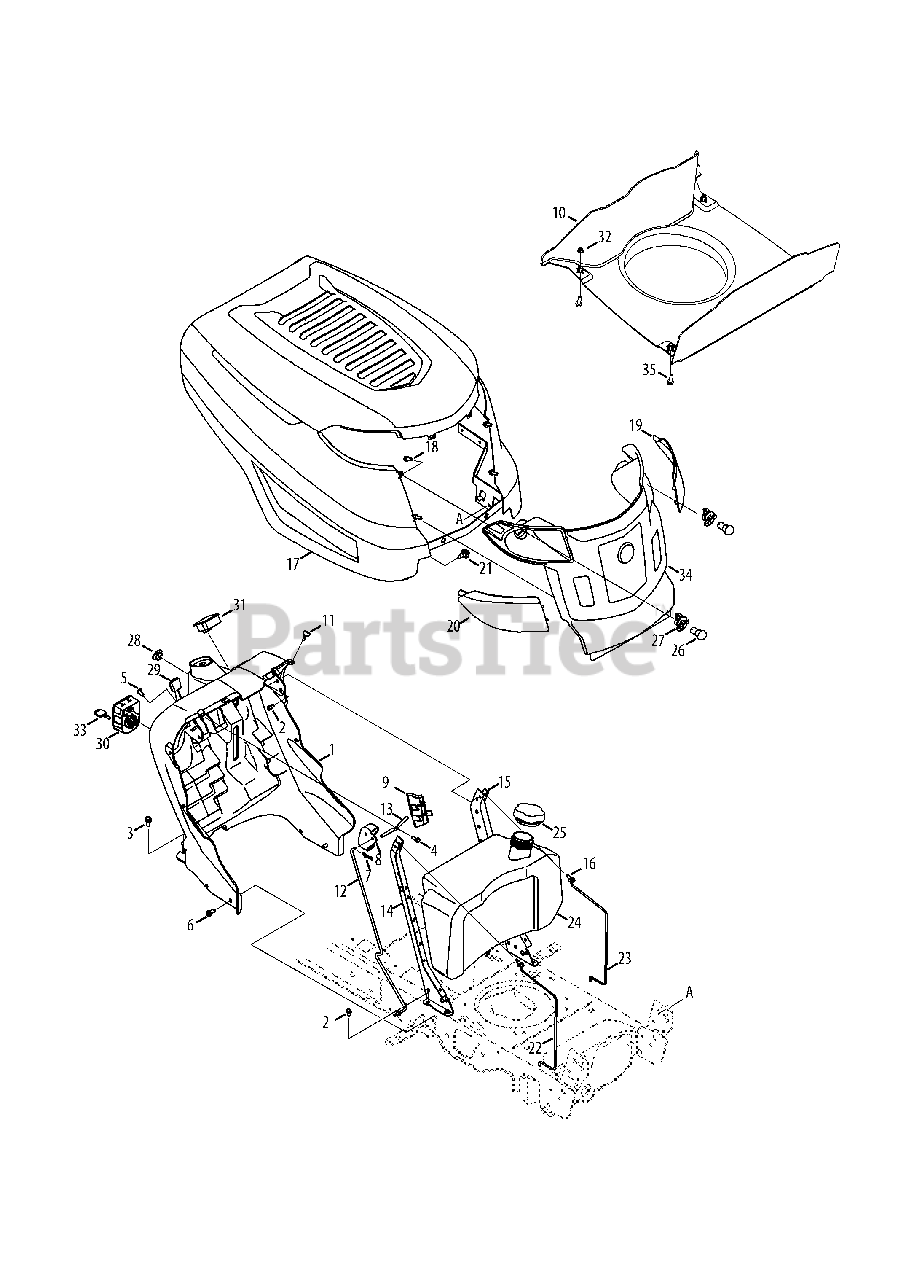

TB 2142 (13AL91KS066) - Troy-Bilt 42" Lawn Tractor (2013) Hood & Dash Parts Diagram

42" Lawn Tractor

Hood & Dash Parts Diagram

  • Title

1

Troy-Bilt 931-04663

Dash Assenbly

$116.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0599

Taptite Screw ,1/4-20:0.500

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Taptite Screw ,5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15:0.750

$5.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1017

Screw, 1/4-14:0.625

$7.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1611B

Taptite Screw ,5/16-18:0.750

$6.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-06639

Dash Lever

$

$

Not available

9

Troy-Bilt 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 931-06212

Plenum

$36.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 735-0271A

Bumper

$8.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 747-05008

Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 747-1196

Lever

$14.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04285F-0637

RH Support Plate

$

$

Not available

15

Troy-Bilt 783-04323F-0637

LH Support Plate

$34.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-1652

Tap Screw, 1/4-20, 0.625

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 683-04441A-0638

Hood Assembly

$332.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-05108

Screw, 1/4 DIA:.750

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-06095

LH Lens

$11.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-06096

RH Lens

$11.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 738-04091A

Shoulder Screw, .43 x .29

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-04161

LH Tank Support Rod

$

$

Not available

23

Troy-Bilt 747-04946

RH Tank Support Rod

$

$

Not available

24

Troy-Bilt 951-04309

Fuel Tank

$185.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-12182

Fuel Cap

$34.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 925-05239

Headlight Assembly - LED
(Superseded to 925-06095A)

Note: (replaces 925-0963 bulb in this application)

$48.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-08160

Headlight Assembly Kit - LED
(Superseded to 753-08160A)

Note: (includes 2 Headlights, Label & instructions)

$64.99

$

Usually ships in 3-6 days

0

27

N/A

Lamp Socket

Note: (no longer used in this application, See Ref 26)

$

$

Not available

28

Troy-Bilt 731-1999

Choke Plug

$9.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 746-04364

Throttle/Choke Cable, 25"

$44.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 925-04036C

Hour Meter
(Superseded to 925-06170B)

$65.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 625-05002

Key, Assembly
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 631-04272

Grill

$65.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0751

Hex Screw, 1/4-20:.620

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 726-04096

Choke Hole Plug (Not Shown)

$3.99

$

Usually ships in 3-6 days

0
