TB 22 TM (25A-26SD766) - Troy-Bilt Walk-Behind Trimmer (2021) Handle Parts Diagram

Walk-Behind Trimmer

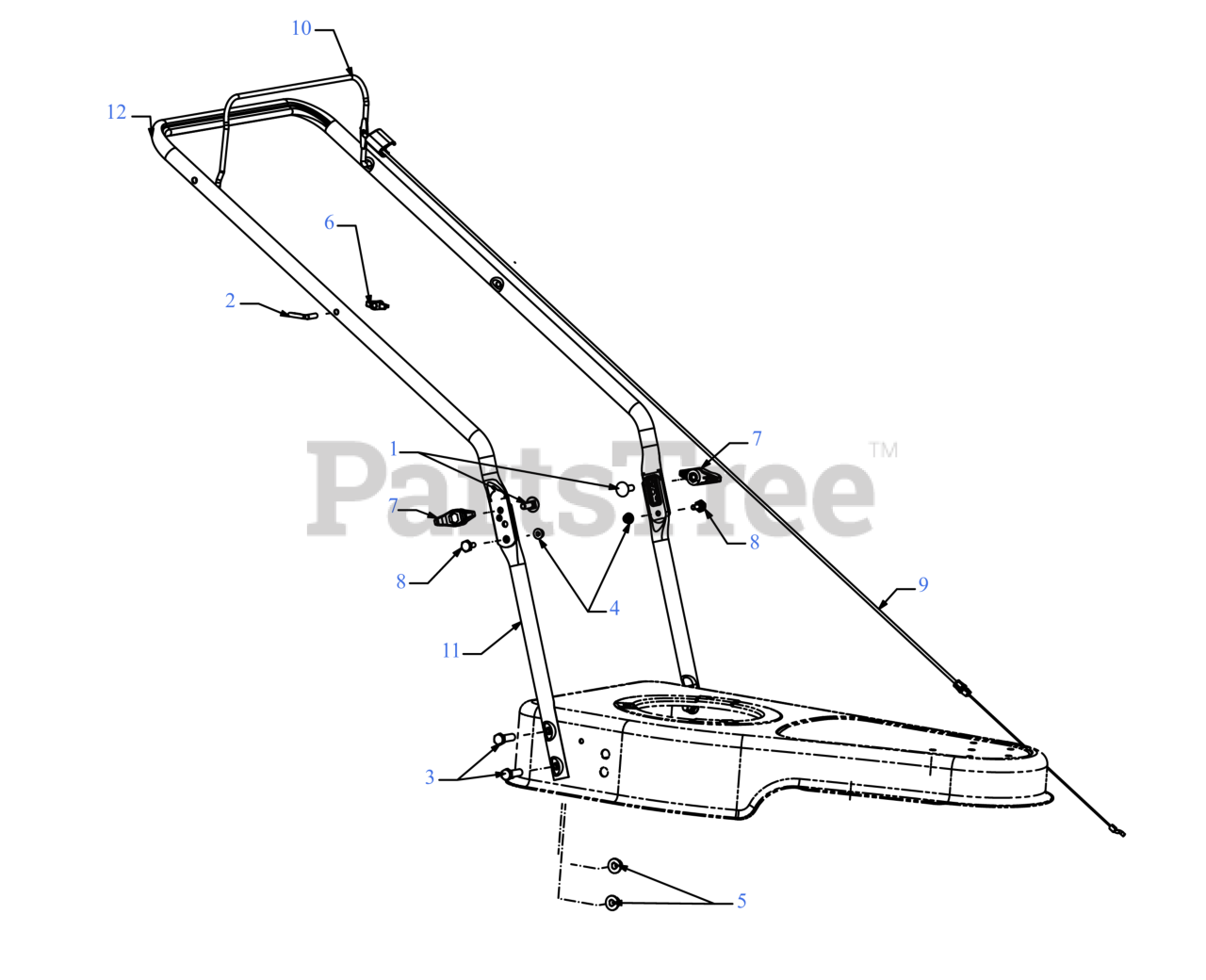

Handle Parts Diagram

  • Title

1

Troy-Bilt 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 13

0

3

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 946-05141

CONTROL CABLE 40"

$22.99

$

In Stock, Qty 16

0

10

Troy-Bilt 747-06246

OPERATOR BAIL

Variations

Troy-Bilt 747-06246-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 20+

0

$13.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 749-05102

LOWER HANDLE (ADJUSTABLE)

Variations

Troy-Bilt 749-05102-0637

Lower Handle with Adjust - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 9

0

$10.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 749-05103

UPPER HANDLE (ADJUSTABLE)

Variations

Troy-Bilt 749-05103-0637

Upper Adjust Handle - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0
