TB 225 (21AK225G766) - Troy-Bilt Front-Tine Tiller (2013) Engine Assembly Parts Diagram

Front-Tine Tiller

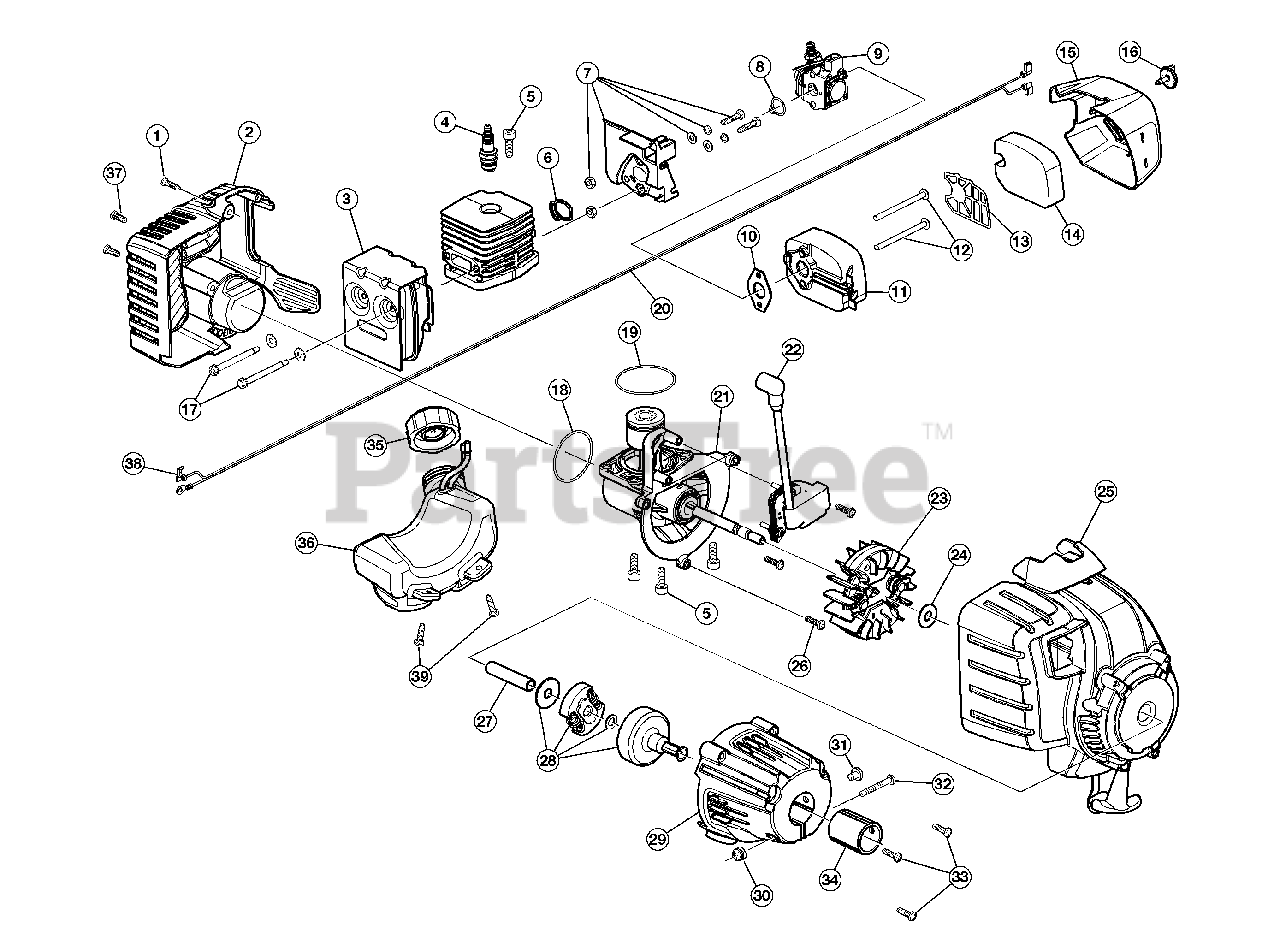

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 17

0

2

Troy-Bilt 753-06833

Housing, Rear (Incl. 1, 18 and 37)

$11.99

$

In Stock, Qty 6

0

3

Troy-Bilt 753-06792

Muffler

$30.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 791-182723

Screw

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06184

O-Ring

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-06189

Insulator Assembly (Incl. 6 and 8)

$7.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 753-06185

O-Ring

$3.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 753-06423

Carburetor
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-06253

Gasket

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 753-06834

Air Cleaner Base

$

$

Not available

12

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 6

0

13

Troy-Bilt 753-06835

Plate

$3.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 753-06836

Filter

$3.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-06837

Air Cleaner Cover

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-06838

Screw

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06294

Muffler Screw

$2.99

$

In Stock, Qty 11

0

18

Troy-Bilt 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-06275

O-Ring

$2.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06839

Lead Wire

$7.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-06841

Shortblock (Incl. 4, 5, 19, 22)

$106.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06840

Module

$36.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 753-06175

Flywheel

$19.99

$

In Stock, Qty 7

0

24

Troy-Bilt 753-06247

Washer

$3.49

$

In Stock, Qty 5

0

25

Troy-Bilt 753-06842

Housing, Starter

$30.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 753-06843

Clutch Cover

$11.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 712-0161

Nut

$4.49

$

In Stock, Qty 8

0

31

Troy-Bilt 710-05401

Bolt

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-04003

Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 17

0

34

Troy-Bilt 735-04278

Spacer, Rubber

$4.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-182612

Fuel Cap

$20.99

$

In Stock, Qty 18

0

36

Troy-Bilt 753-06846

Fuel Tank (Incl. 35 and 39)

$16.99

$

In Stock, Qty 6

0

37

Troy-Bilt 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 791-181930

Fuel Tank Screw

$6.99

$

In Stock, Qty 9

0
