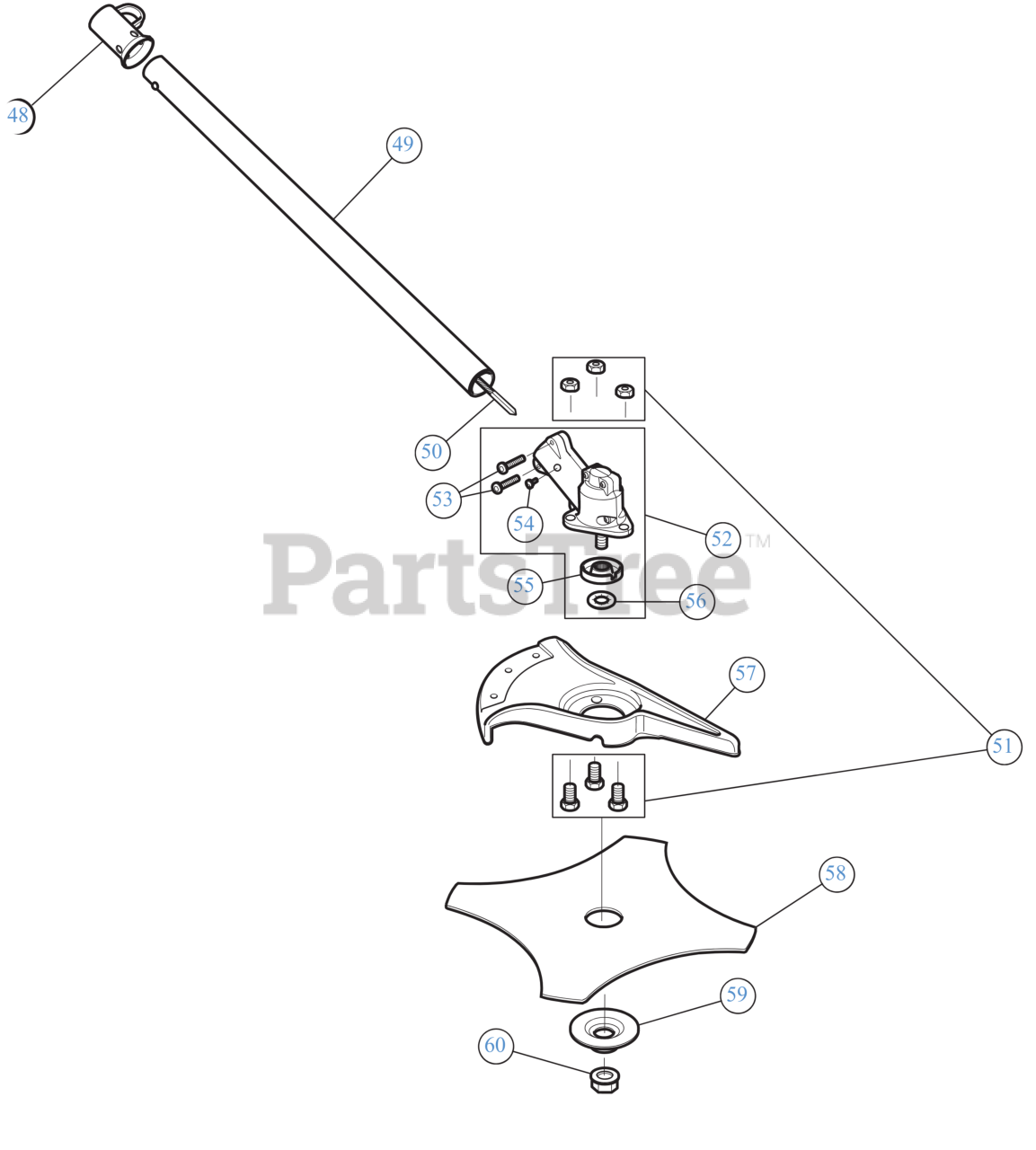

TB 227 XP (41AD272X966) - Troy-Bilt String Trimmer Brushcutter Parts Diagram

String Trimmer

Brushcutter Parts Diagram

  • Title

48

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, Qty 14

0

49

Troy-Bilt 753-06789

BOOM ASSEMBLY LOWER

$23.99

$

In Stock, Qty 6

0

50

Troy-Bilt 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, Qty 6

0

51

Troy-Bilt 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 753-07006

GEARBOX ASSEMBLY
(Superseded to 753-11244)

Note: (incl. 53 - 56)

$22.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 7

0

54

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 3 left!

0

56

Troy-Bilt 753-04348

PALNUT:3/8" DIAM

$6.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, Qty 8

0

59

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, Qty 6

0

60

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 59 and 60)

$12.99

$

Usually ships in 3-6 days

0

Troy-Bilt 732-05168

LOCKING ROD TOOL

$2.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
