TB 2350 (13AAA1KQ066) - Troy-Bilt 50" Lawn Tractor, Hydro Drive (2015) Frame Parts Diagram

50" Lawn Tractor, Hydro Drive

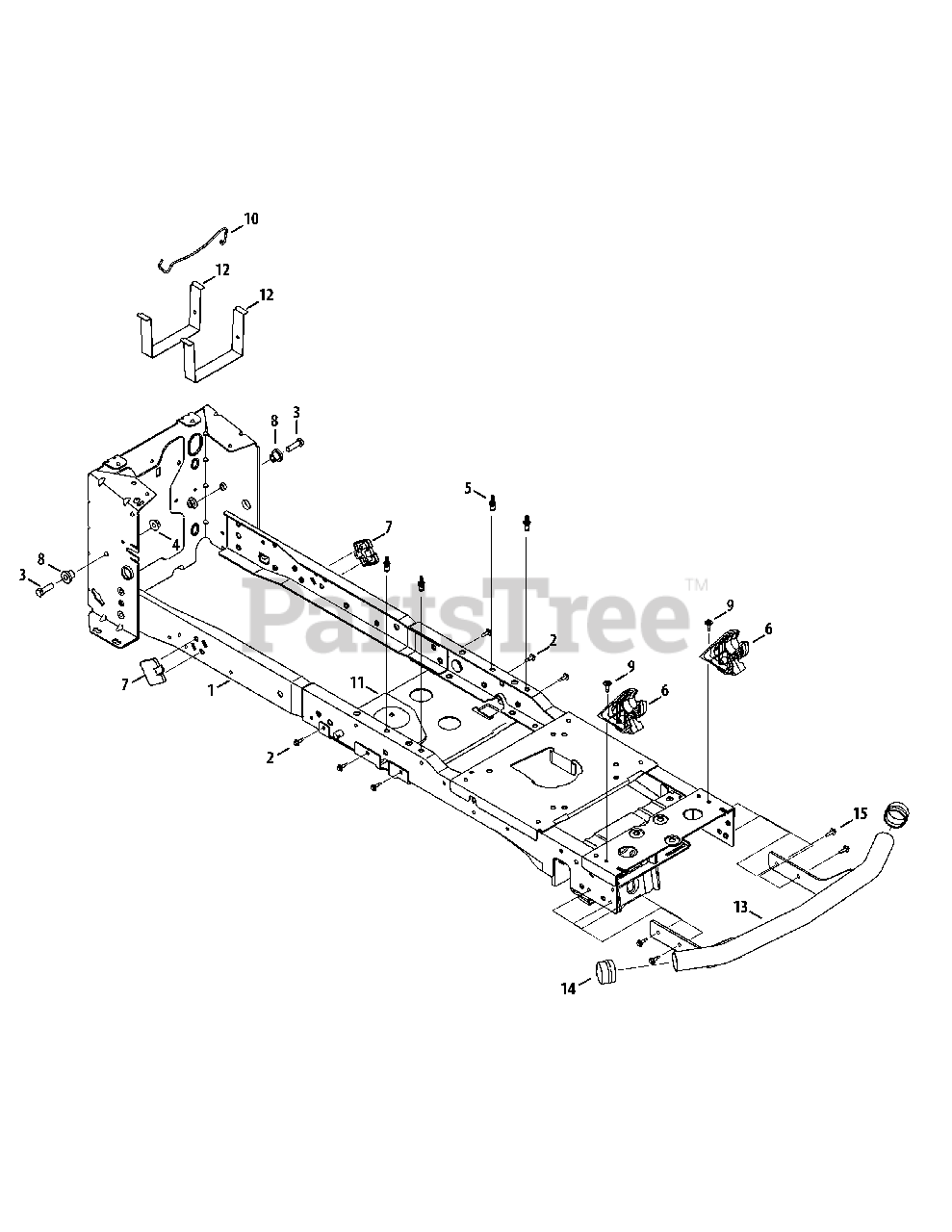

Frame Parts Diagram

  • Title

1

Troy-Bilt 983-05067

Frame Assembly
(Superseded to 983-05067F)

$424.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 728-05015

Rivet, 1/4-20 x .750

$4.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-10069A

Pivot Bracket
(Superseded to 731-10069D)

$10.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-10281A

Wear Pad

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, Qty 7

0

9

Troy-Bilt 738-05090

Shoulder Screw, M6-1

$2.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 747-06329-0637

Rod, Battery
(Superseded to 747-06929-0637)

$8.99

$

In Stock, Qty 6

0

11

Troy-Bilt 783-08276

Lower Frame Brace Bracket

Variations

Troy-Bilt 783-08276-0637

Frame Bracket - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 783-08567-0637

Battery Bracket

$6.99

$

In Stock, Qty 9

0

13

Troy-Bilt 683-05155-0638

Bumper Assenbly

Note: If Equipped

$84.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-05368

Hub Cap

Note: If Equipped

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-06012A

Hex Flange Screw, 3/8-16

Note: If Equipped

$3.49

$

In Stock, Qty 15

0
