TB 2350 (13AAA1KQ066) - Troy-Bilt 50" Lawn Tractor, Hydro Drive (2015) Front & Rear Wheels Parts Diagram

50" Lawn Tractor, Hydro Drive

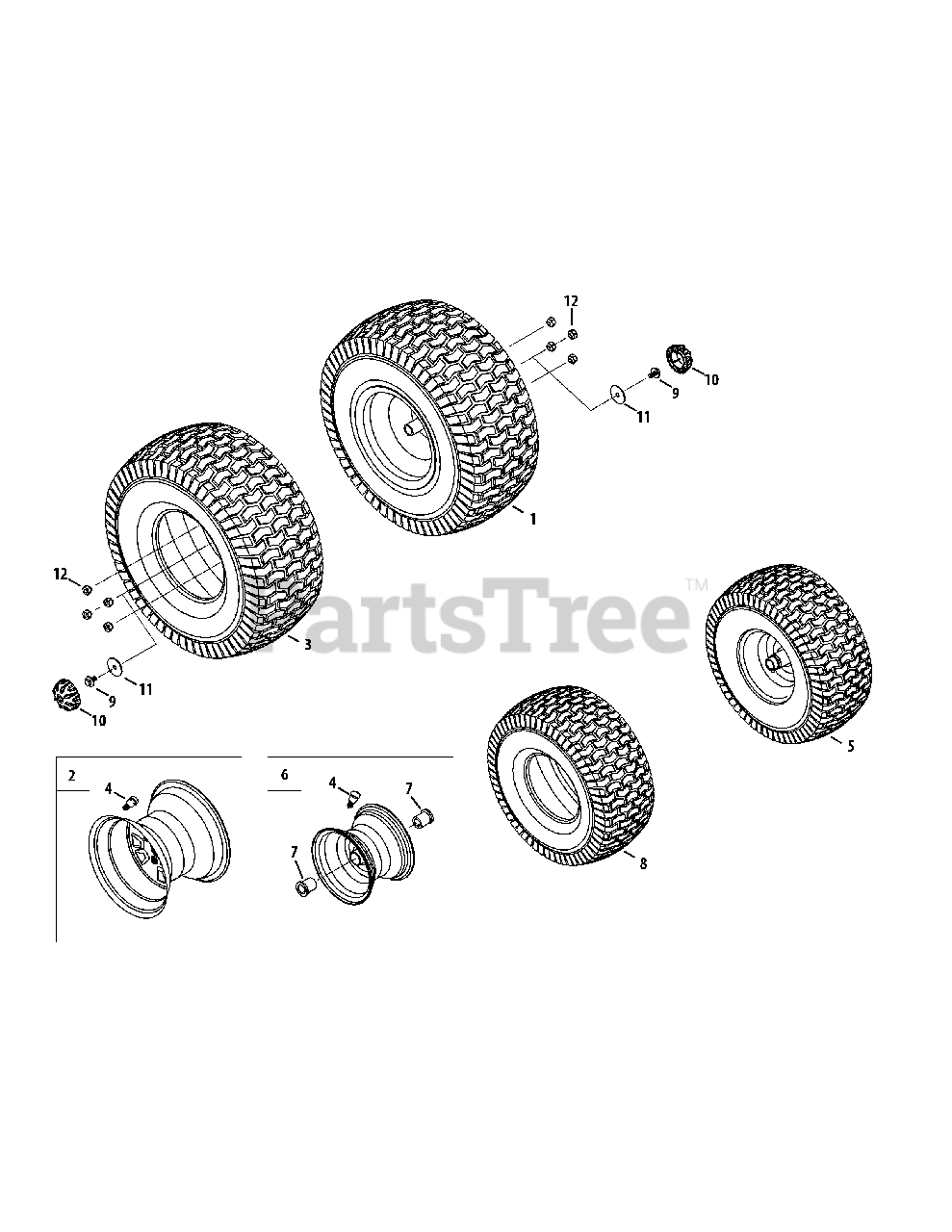

Front & Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 634-0104-0916

Wheel, Complete, 20 x 8 x 8

$509.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 634-04369-0662

Rim Ass’y, 8.0 x 7.0 x .750 ID

$153.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 734-1730-0906

Tire, 20 x 8 x 8 Sq Shoulder
(Superseded to 734-1730-0901)

$92.99

$

In Stock, Qty 8

0

4

Troy-Bilt 934-0255

Valve, Tubeless Air

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 634-05149

Wheel, Complete, 15 x 6 x 6 (46")

Variations

Troy-Bilt 634-05149-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$195.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-05149-0911

WHEEL-COMP 15X6X6 - Carlisle Gray (0911)

$195.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-05149-4028

WHEEL-COMP 15X6X6 - SEARS YELLOW (4028)

$200.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-05149-4042

WHEEL ASSEMBLY (15 x 6 x 6)(CRAFTSMAN GREY) - CRAFTSMAN GRAY (4042)

$175.99

$

In Stock, only 1 left!

0

$163.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 634-05081-0662

Rim Ass’y, 6.0 x 4.5, Flnge Bearings
(Superseded to 634-05081B-0662)

$87.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 741-05094

Bearing, Flange, .760 ID

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 734-1731-0901

Tire, 15 x 6 x 6 Sq Shoulder (46")

$46.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-06154B

Screw, 5/16-24 x .850

$4.49

$

In Stock, Qty 18

0

10

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0430

Flat Washer, .350 x 1.59 x .062

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt n/a

Lug Nut 7/16-14 (54")

Note: Not used on this model

$

$

Currently unavailable
