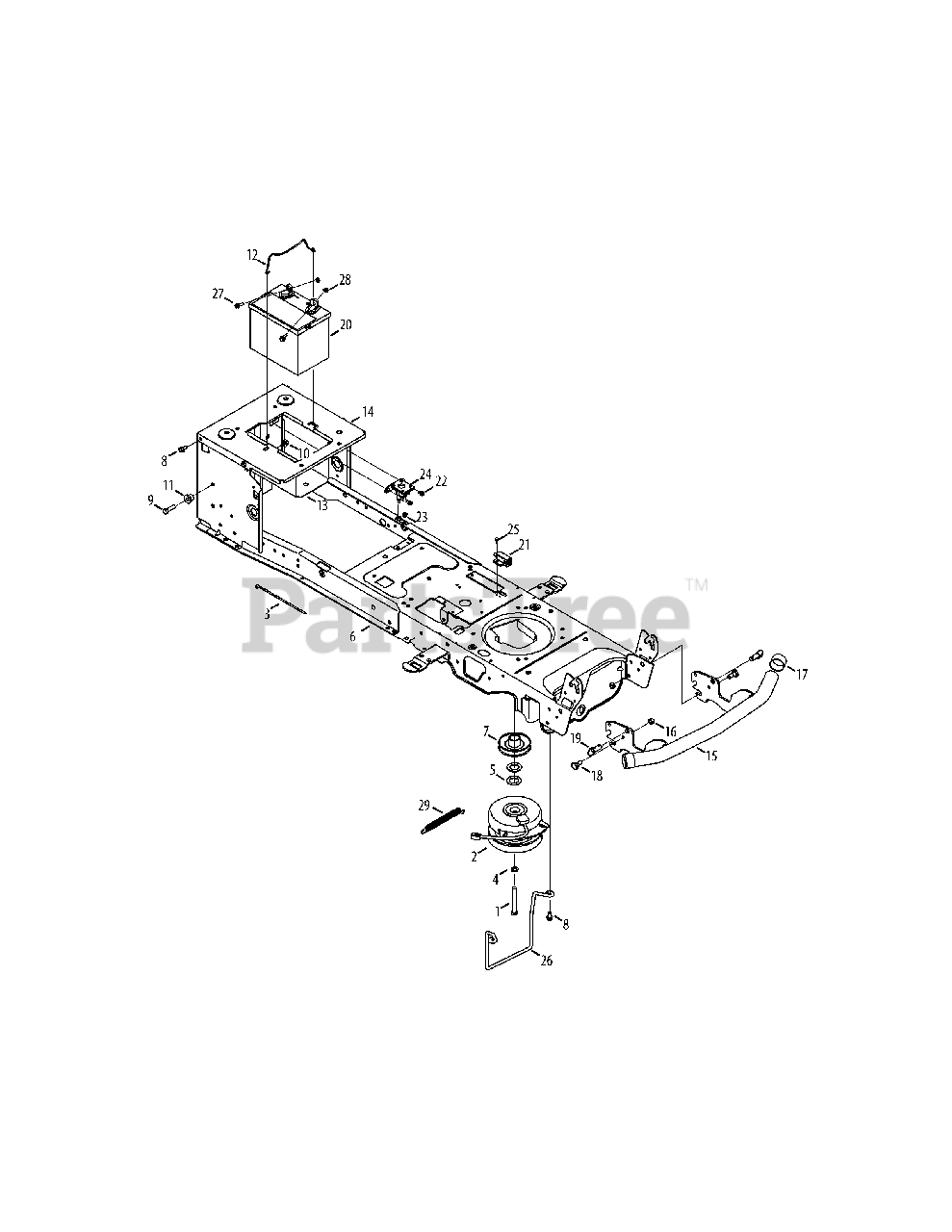

TB 2450 (13WQ92KP066) - Troy-Bilt 50" Lawn Tractor (2011) PTO & Battery Parts Diagram

50" Lawn Tractor

PTO & Battery Parts Diagram

  • Title

1

Troy-Bilt 710-04379A

Hex Head Screw, 7/16-20:3.50

$5.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 917-04174A

Electric PTO Clutch

$631.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

4

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.620 x .095

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 683-04469B-0637

Frame
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 756-0978B

Electric PTO Engine Pulley

$61.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04484

Taptite Screw, 5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3005

Hex Head Screw, 3/8-16:1.25

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, Qty 7

0

12

Troy-Bilt 747-04121A

Battery Holder Rod

$5.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 783-0349-0637

Battery Tray

$

$

Not available

14

Troy-Bilt 783-06089-0638

Seat Frame Bracket

$49.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 683-04219B-0637

Bumper

$57.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 912-3000

Hexlock Nut, 3/8-16
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-05674

Bumper Cap

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-0143

Shoulder Bolt, .496 x .336

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-04061

Quick Release Pin

$20.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 925-1707D

Battery

$

$

Not available

21

Troy-Bilt 725-04363

Interlock Switch

$14.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0653

Taptite Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 16

0

23

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 725-04439

Solenoid, 12 V
(Superseded to 725-04439B)

$37.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 738-04237A

Shoulder Screw, #10-32:.500

$5.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 747-05195

Belt Keeper Rod

$33.99

$

In Stock, Qty 14

0

27

Troy-Bilt 710-04666

Hex Head Flange, 1/4-20:.75

$6.49

$

In Stock, Qty 9

0

28

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 732-0814

Spr, Extn, .56 Dia X 5.52

$7.49

$

In Stock, Qty 20+

0

Troy-Bilt 925-04104

Wire harness, Main

Note: Not shown

$205.99

$

Usually ships in 3-6 days

0
