TB 2454 (13AAA2KW066) - Troy-Bilt 54" Lawn Tractor (2015) Hood Parts Diagram

54" Lawn Tractor

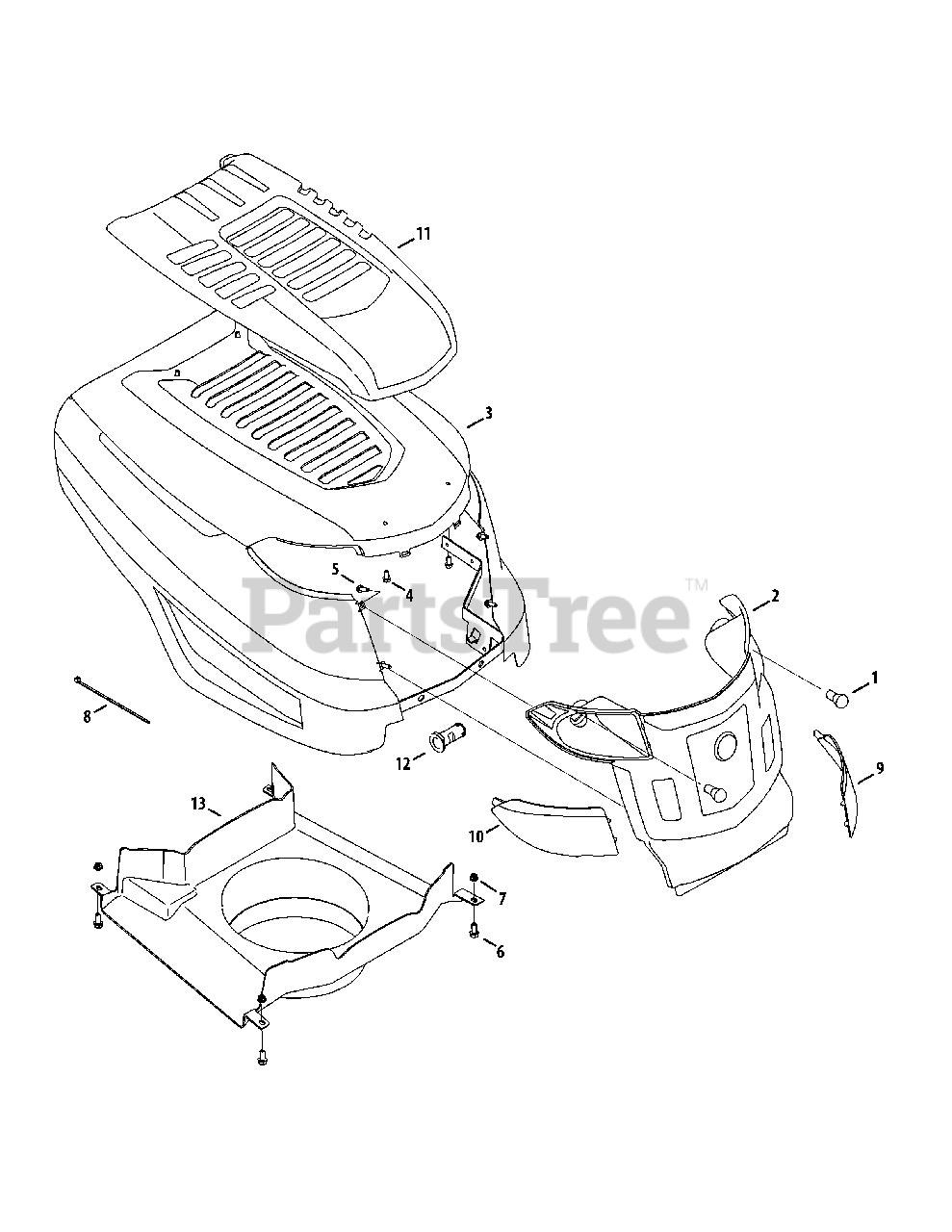

Hood Parts Diagram

  • Title

1

Troy-Bilt 925-0963

Miniature lamp 12V socket

$7.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 631-04272

Grill

$74.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 683-05172

Hood Assembly

Variations

Troy-Bilt 683-05172-0638

Hood Assembly, K Style MTD Red - MTD/TROY-BILT RED (0638)

$401.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-05172-0662

HOOD ASM-K STYLE - OYSTER GRAY (0662)

$461.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-05172-4033

HOOD ASM-K STYLE FLINT MICA - FLINT MICA (4033)

$495.99

$

Usually ships in 3-6 days

0

$401.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04187

Screw, 1/4-15 x 0.50
(Superseded to 710-04187A)

$7.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-06147

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 17

0

6

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-06095

Grill Lens - LH

$13.99

$

In Stock, Qty 5

0

10

Troy-Bilt 731-06096

Grill Lens - RH

$12.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 731-06194B

Hood Scoop

$59.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-10070A

Hood Pin

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 931-10635

Plenum
(Superseded to 931-13555)

$51.99

$

Usually ships in 3-6 days

0
