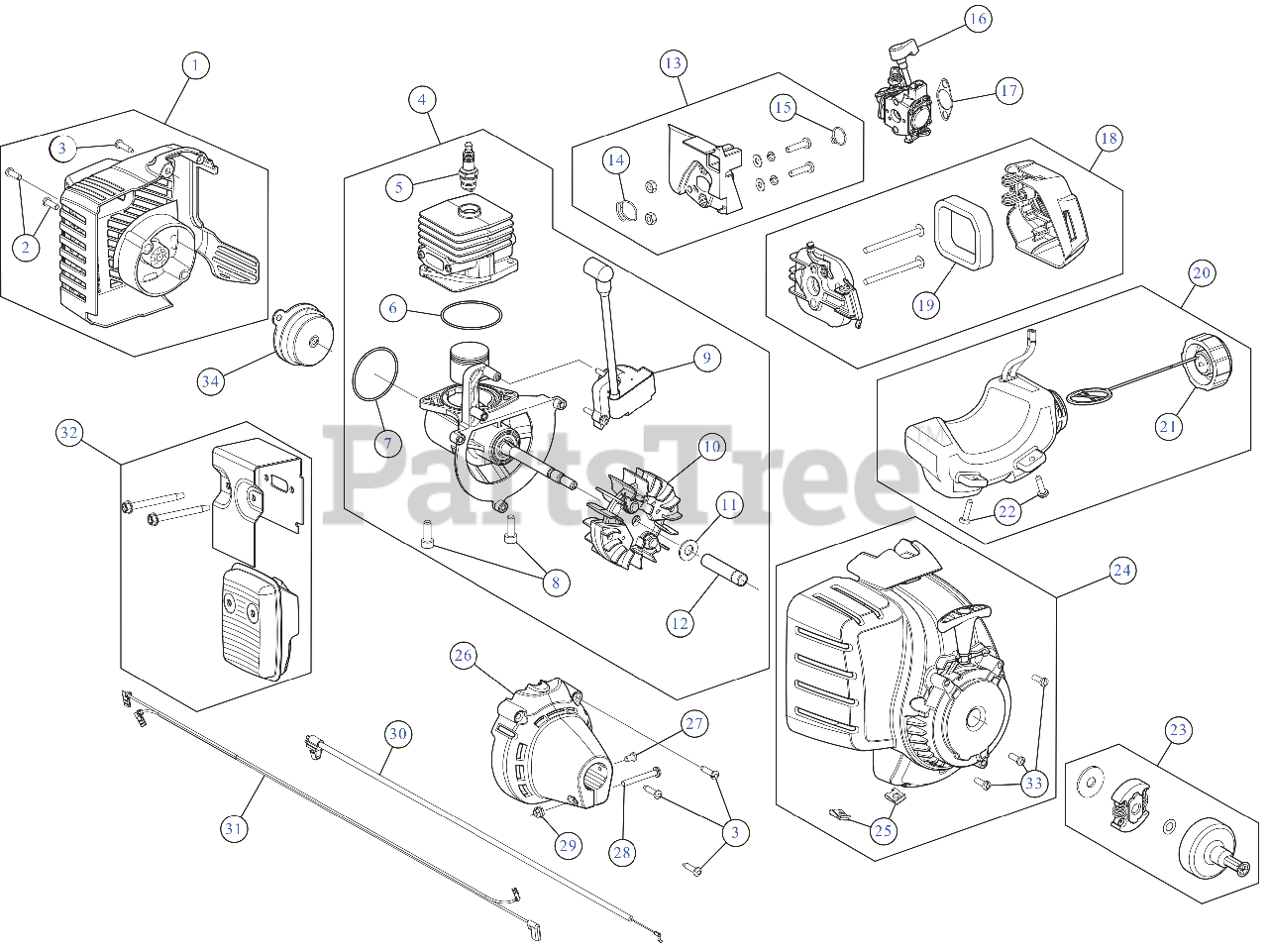

TB 25 C EC (41AD25CA766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06177

REAR ENG CVR

Note: (Incl. 2 & 3)

$18.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 13

0

3

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 17

0

4

Troy-Bilt 753-06523

SHORT BLOCK

Note: (Incl. 5 - 12)

$95.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06275

O-RING

$2.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-06174

O-RING

$2.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 791-182723

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 753-06763

MODULE 27CC DIG

$27.99

$

In Stock, Qty 16

0

10

Troy-Bilt 753-06175

FLYWHEEL ASSEMBLY

$19.99

$

In Stock, Qty 7

0

11

Troy-Bilt 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 5

0

12

Troy-Bilt 753-06218

SPACER

$2.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-06189

INTAKE ASSEMBLY

Note: (Incl. 14 & 15)

$7.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-06288

CARBURETOR

$37.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06500

AIRCLEANER COVER ASSEMBLY

Note: (Incl. 19)

$6.49

$

In Stock, Qty 14

0

19

Troy-Bilt 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06183

FUEL TANK ASSEMBLY

Note: (Incl. 21 & 22)

$13.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 18

0

22

Troy-Bilt 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, Qty 9

0

23

Troy-Bilt 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 753-06522

STARTER HOUSING RED

Note: (Incl. 25 & 33)

$26.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 753-06181

CLUTCH COVER

Note: (Incl. 3)

$3.99

$

In Stock, Qty 6

0

27

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

30

Troy-Bilt 746-05231

THROTTLE CABLE

$4.99

$

In Stock, Qty 6

0

31

Troy-Bilt 753-06583

LEAD WIRES

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$26.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-06173

ELECTRIC START COVER

$19.99

$

In Stock, only 3 left!
