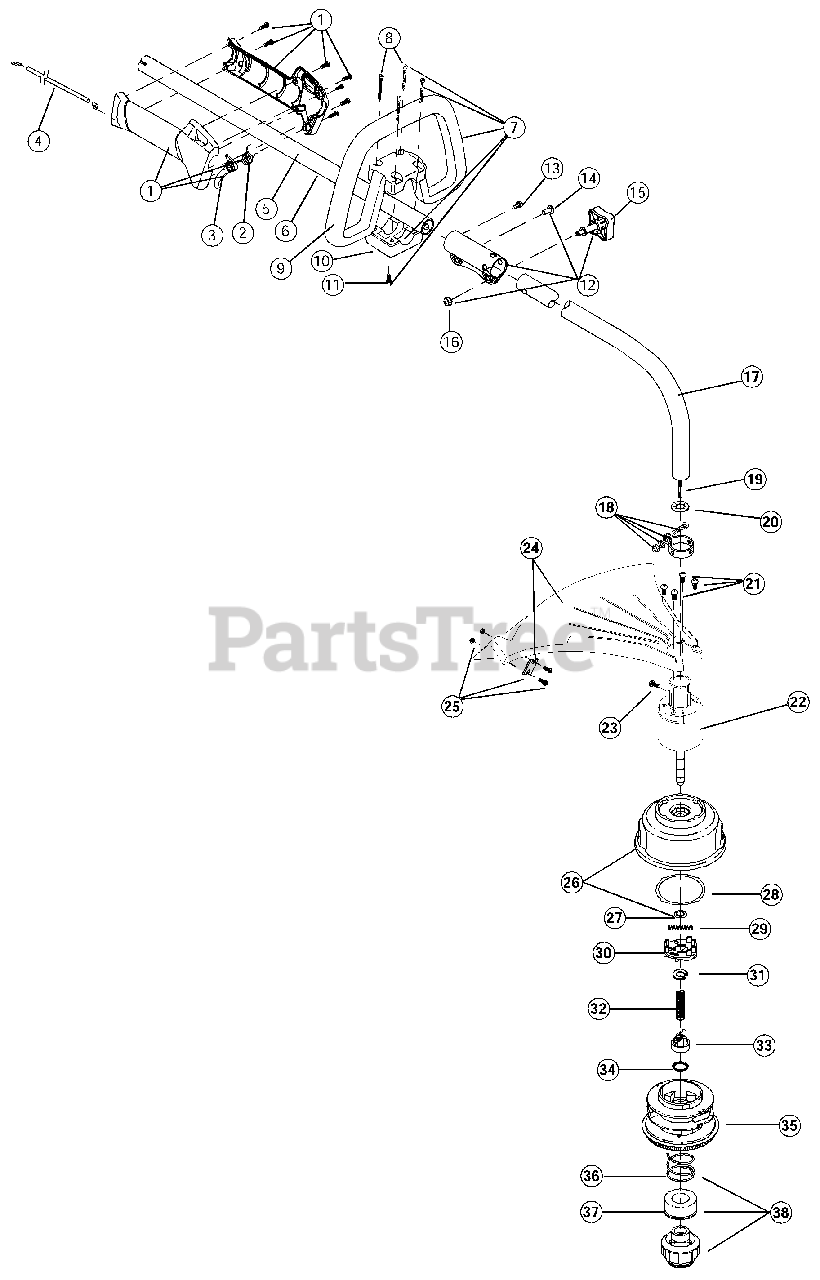

TB 25 CS (41ADT25C063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing and Trigger Assembly (includes 2 & 3)

$19.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

6

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-180687

Deluxe D-Handle Assembly (includes 8-10)

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

12

Troy-Bilt 753-1190

EZ-Link Coupler (includes 13-16)

$21.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

14

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

15

Troy-Bilt 791-181981

Adjustment Knob (includes 12)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 791-181560

Palnut
(Superseded to 753-04348)

$6.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

22

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

23

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

24

Troy-Bilt 791-181659

Shield and Blade Assembly (includes 29)

$

$

Not available

25

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 791-181457

Outer Spool and Eyelet Assembly w/ Retainer

$37.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

28

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

29

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

30

Troy-Bilt 791-181461

Slider
(Superseded to 753-04257)

$6.99

$

In Stock, Qty 8

0

31

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

32

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

33

Troy-Bilt 791-181462

Plunger

$

$

Not available

34

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

35

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

36

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

38

Troy-Bilt 791-181468

Bump Head Knob Assembly w/Spring & Foam Seal
(Superseded to 791-181468B)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181460

Reel and Line Assembly Optional Accessories; Items not shown
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

Troy-Bilt 791-682075

Shoulder Strap Assembly Optional Accessories; Items not shown
(Superseded to 791-682075B)

$36.99

$

Usually ships in 3-6 days

0
