TB 25 CS (41ADT25C766) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

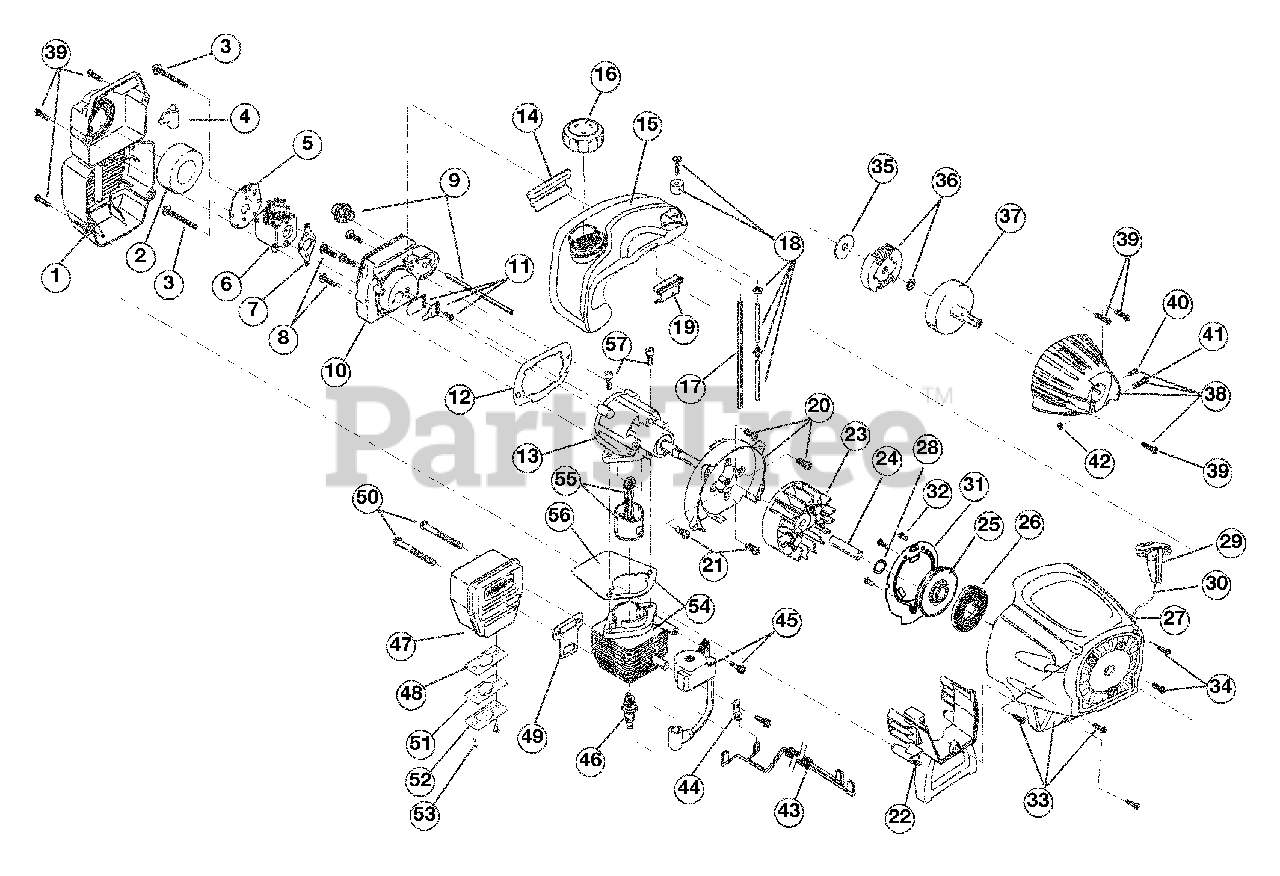

Engine Parts Parts Diagram

  • Title

1

MTD 753-04317

Air Cleaner/Muffler Cover Assembly

Note: (Incl. Ref No. 2 & 39)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 753-1193

Choke Extension
(Superseded to 753-04227)

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04318

Carburetor Assembly
(Superseded to 753-04338)

$89.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

Note: (Incl. Ref No. 7 & 18)

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer & Hose Assembly

$21.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-1196

Carb Mount Assembly

Note: (Incl. Ref No. 8 & 11)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 753-04108

Crank Case Service Assembly

Note: (Incl. Ref No. 8 & 21)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly

Note: (Incl. Ref No. 16-18)

$

$

Not available

16

Troy-Bilt 753-04084

Fuel Cap Assembly

$21.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$18.99

$

In Stock, Qty 11

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 791-153520

Shroud Assembly

$

$

Not available

21

Troy-Bilt 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-182064

Shroud Extension & Stand
(Superseded to 753-04611)

Note: (Incl. Ref No. 39)

$

$

Not available

23

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

24

MTD 791-181065

Spacer

$

$

Not available

25

Troy-Bilt 753-1199

Recoil Pulley Assembly

$22.99

$

In Stock, Qty 5

0

26

Troy-Bilt 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

27

Troy-Bilt 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 791-181247

Pulley Retainer
(Superseded to 753-04288)

$9.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 753-1201

Pressure Plate Assembly
(Superseded to 753-04417)

$

$

Not available

32

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-1203

Starter Housing Assembly

Note: (Incl. Ref No. 25-32, 34 & 39)

$

$

Not available

34

Troy-Bilt 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

36

Troy-Bilt 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$23.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

38

MTD 753-1204

Clutch Cover Assembly

Note: (Incl. Ref No. 39-42)

$

$

Not available

39

Troy-Bilt 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

40

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

43

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

44

MTD 791-611063

Ground Tab

$

$

Not available

45

Troy-Bilt 753-04109

Module Assembly

$

$

Not available

46

Troy-Bilt 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

47

Troy-Bilt 753-04110

Muffler Assembly

Note: (Incl. Ref No. 48-53)

$

$

Not available

48

Troy-Bilt 753-04312

Spark Arrestor Screen
(Superseded to 797-00006)

$

$

Not available

49

Troy-Bilt 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

50

Troy-Bilt 791-147575

Muffler Mounting Bolts

$

$

Not available

51

Troy-Bilt 753-04313

Spark Arrestor Plate
(Superseded to 753-04110)

$

$

Not available

52

Troy-Bilt 753-04314

Spark Arrestor Hood
(Superseded to 753-04110)

$

$

Not available

53

Troy-Bilt 753-04315

Spark Arrestor Screws
(Superseded to 753-04110)

$

$

Not available

54

Troy-Bilt 753-04111

Cylinder Assembly
(Superseded to 753-04814)

Note: (Incl. Ref No. 56-57)

$78.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

56

Troy-Bilt 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 791-180602

O.E.M. Carburetor Repair Kit

Note: Not Shown

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181069

Gasket Diaphragm Repair Kit

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1209

Piston Ring Set

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1209

Piston Ring Set

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04112

Short Block Assembly

Note: Not Shown (Incl. Ref No. 13, 21, 46, 54 & 55)

$

$

Not available

Troy-Bilt 791-181599

Clutch Springs

Note: Not Shown

$10.99

$

In Stock, only 1 left!

0
