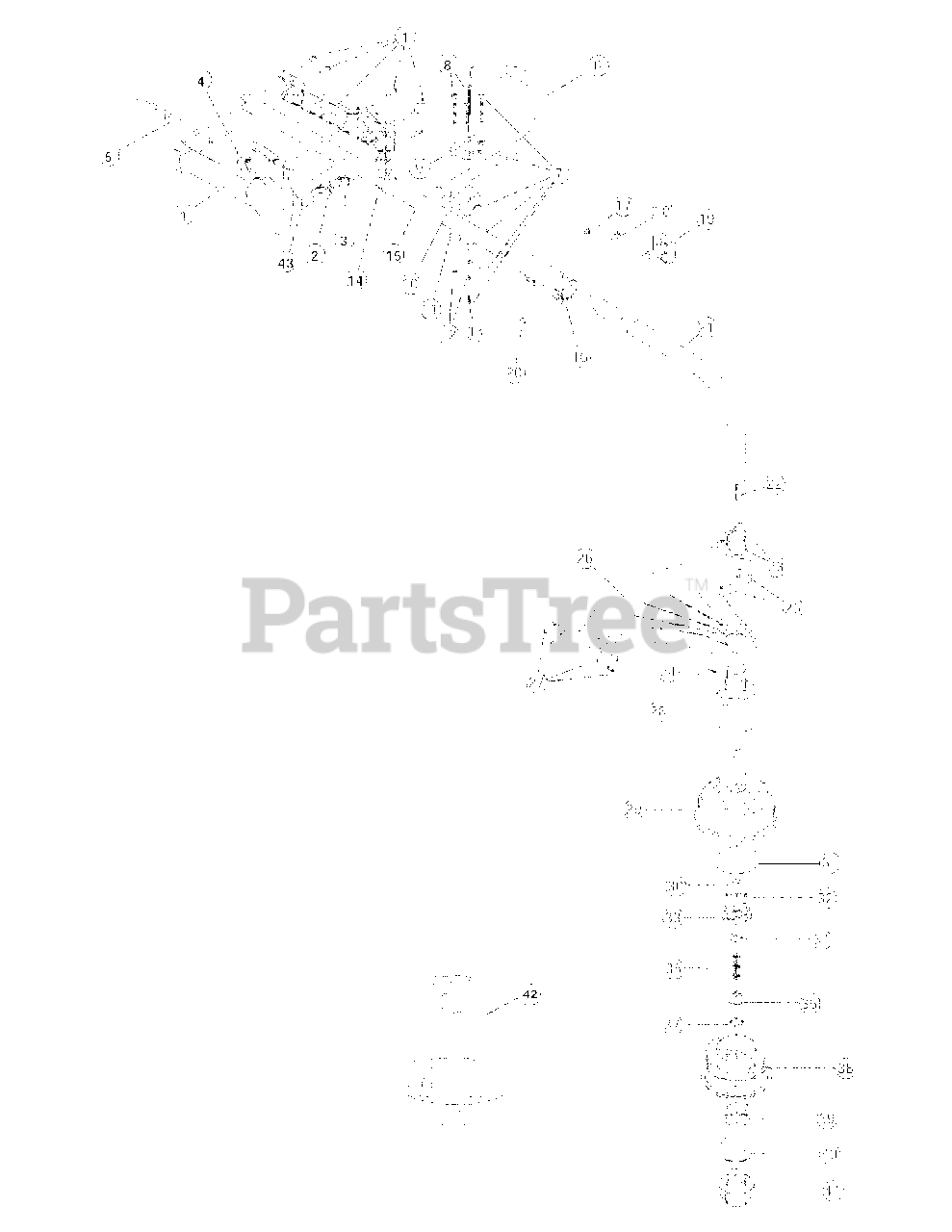

TB 25 ET (41ADT2EC066) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04118

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (Incl. Ref No. 2-4,)

$

$

Not available

2

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 746-04085A

Throttle Cable

$9.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 791-180687

J-Handle Assembly

$38.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-683295

Handle Bracket Assembly

Note: (Incl. Ref No. 8-13)

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

14

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

16

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 17-20)

$21.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

18

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

19

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl. Ref No. 20)

$7.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 753-1218

Lower Drive Shaft Housing Assembly

Note: Replaces 791-180340

$98.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

25

Troy-Bilt 791-181858

Shield Mounting Hardware

Note: Replaces 791-180531

$

$

Not available

26

Troy-Bilt 791-181659

Shield Assembly

Note: (Incl. Ref No. 28)

$

$

Not available

27

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

28

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

29

Troy-Bilt 791-181457

Outer Spool Assembly

Note: (Incl. Ref No. 31)

$37.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

31

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

32

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

33

Troy-Bilt 753-04257

Slider

$6.99

$

In Stock, Qty 8

0

34

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

35

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

36

Troy-Bilt 791-181462

Plunger

$

$

Not available

37

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

38

Troy-Bilt 791-181460B

Inner Reel

Note: Replaces 791-181464

$30.99

$

In Stock, Qty 7

0

39

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

41

Troy-Bilt 791-181468B

Bump Head Knob Assembly

Note: (Incl. Ref No. 40 & 41)

$15.99

$

Usually ships in 3-6 days

0

42

MTD 791-181469B

Complete Cutting Head Assembly

$

$

Not available

43

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

Troy-Bilt 953-1156

Replacement Line, 0.095 Diameter

Note: Replaces 791-180120, Optional Accessory; Not Shown

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 753-04218

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$

$

Not available

Troy-Bilt 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$36.99

$

Usually ships in 3-6 days

0
