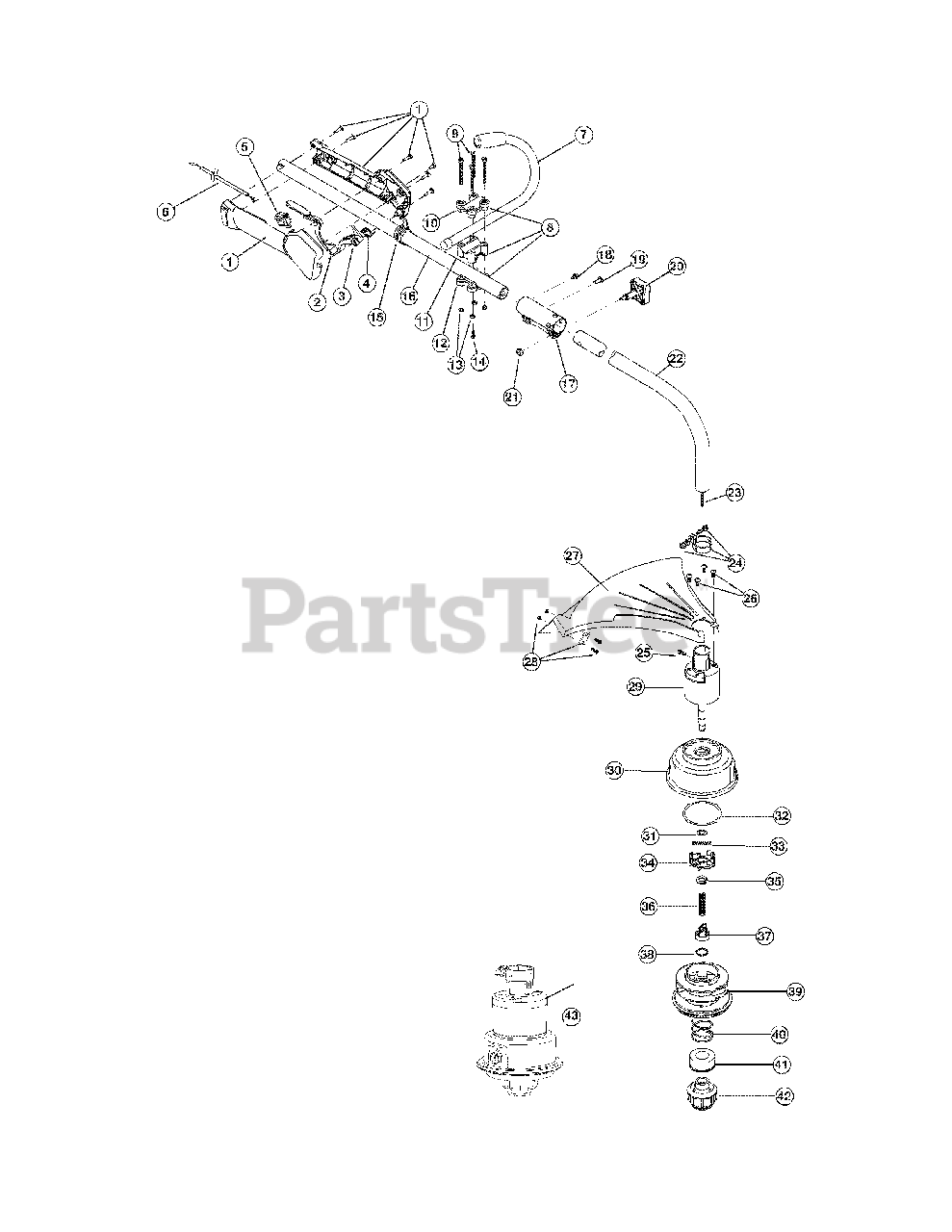

TB 25 ET (41ADT2EC711) - Troy-Bilt String Trimmer Boom and Trimmer Parts Parts Diagram

String Trimmer

Boom and Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04118

Throttle Housing Assembly (includes 2-5)
(Superseded to 753-05321)

$

$

Not available

2

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

3

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

5

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-04405

Throttle Cable

$7.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-180687

J-Handle Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 9-14)

$42.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

15

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

17

Troy-Bilt 753-1190

Split Boom Coupler (includes 17-21)

$21.99

$

In Stock, Qty 6

0

18

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

20

Troy-Bilt 791-181981

Adjustment Knob (includes 21)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

22

Troy-Bilt 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

26

Troy-Bilt 791-180531

Shield Mounting Hardware
(Superseded to 791-181858)

$

$

Not available

27

Troy-Bilt 791-181659

Shield Assembly (includes 28)

$

$

Not available

28

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

29

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

30

Troy-Bilt 791-181457

Outer Spool Assembly (includes 32)

$37.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

32

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

33

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-04257

Slider

$6.99

$

In Stock, Qty 10

0

35

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

36

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

37

Troy-Bilt 791-181462

Plunger

$

$

Not available

38

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 6

0

39

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

40

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

42

Troy-Bilt 791-181468B

Bump Head Knob Assembly (includes 40 & 41)

$15.99

$

Usually ships in 3-6 days

0

43

MTD 791-181469B

Complete Cutting Head Assembly (includes 24 & 29-41)

$

$

Not available

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter (NOT SHOWN)
(Superseded to 953-1156)

$31.99

$

In Stock, Qty 8

0

Troy-Bilt 753-04218

Reel and Line Assembly (NOT SHOWN)

$

$

Not available

Troy-Bilt 791-682075

Shoulder Strap Assembly (NOT SHOWN)
(Superseded to 791-682075B)

$36.99

$

Usually ships in 3-6 days

0
