TB 25 HT (41BD25HT766) - Troy-Bilt Hedge Trimmer Engine Assembly Parts Diagram

Hedge Trimmer

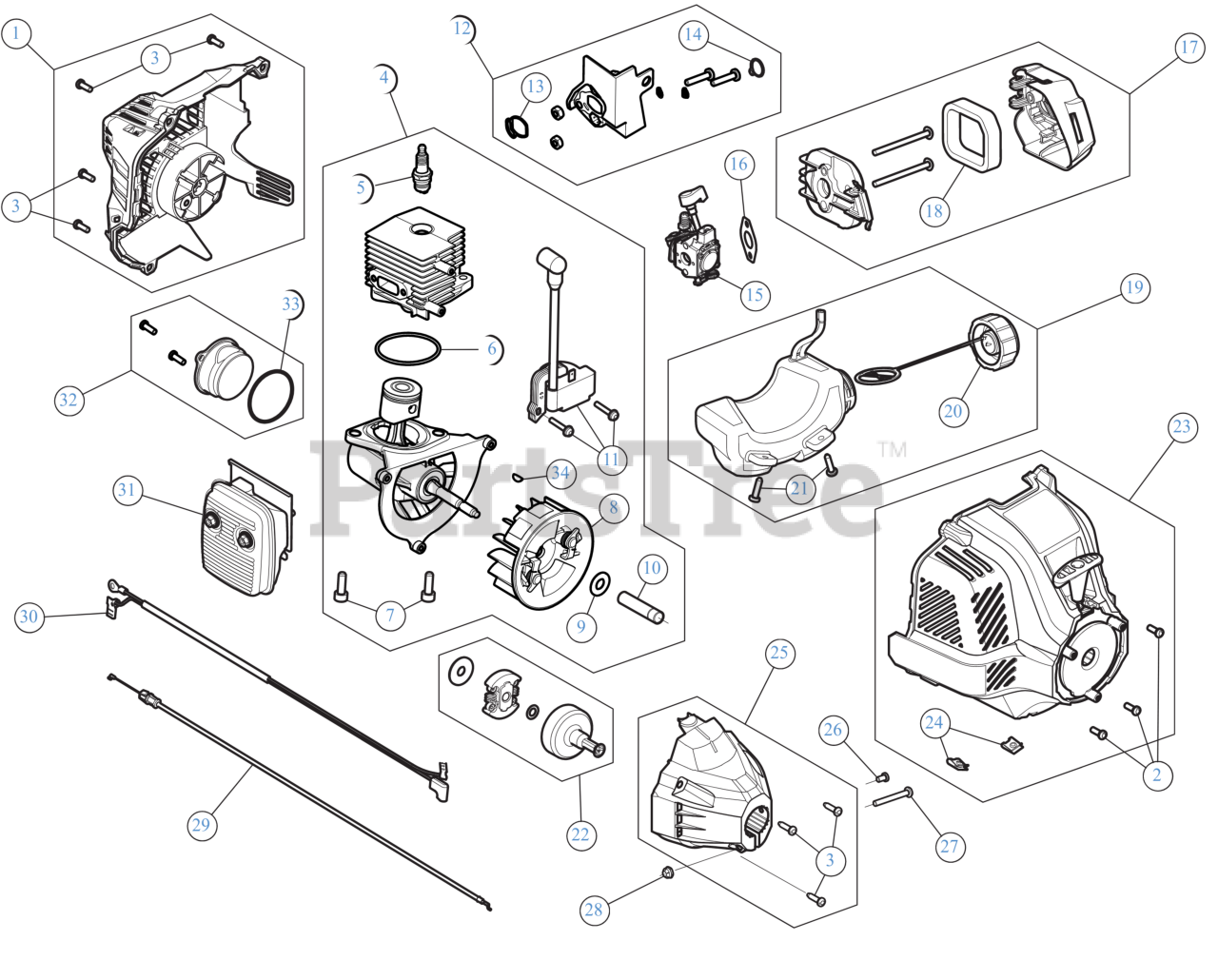

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-10406

REAR ENGINE COVER

Note: (Incl. 3)

$5.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182195

SCREW #

$6.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 841P014182S

SHORT BLOCK 25cc

Note: (Incl. 2 & 5 - 11)

$85.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 753-06847

SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-09085

O-RING SEAL CYLINDER

$2.99

$

In Stock, Qty 11

0

7

Troy-Bilt 710-06241

SCREW 5/16-18x3/4 T40

$2.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-09125

FLYWHEEL ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 5

0

10

Troy-Bilt 750-04434

SPACER :2.165"

$6.49

$

In Stock, Qty 5

0

11

Troy-Bilt 753-10464

MODULE

$32.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 753-09105

INTAKE ASSEMBLY

Note: (Incl. 13 & 14)

$4.49

$

In Stock, Qty 10

0

13

Troy-Bilt 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 721-04972

CARBURETOR SEAL

$0.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-06288

CARBURETOR

$34.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-10484

AIR CLEANER

Note: (Incl. 18)

$5.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-06183

FUEL TANK ASSEMBLY

Note: (Incl. 20 & 21)

$12.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 791-182612

FUEL CAP ASSEMBLY

$18.99

$

In Stock, Qty 17

0

21

Troy-Bilt 791-181930

SCREW:10-6 x .75

$6.49

$

In Stock, Qty 9

0

22

Troy-Bilt 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$23.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-10644

STARTER HOUSING

Note: (Incl. 2 & 24)

$17.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-182366

NUT, TINNERMAN U-T

$5.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 753-10405

CLUTCH COVER

Note: (Incl. 3)

$2.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 2986

SCREW 10-24 X 1.12

$0.99

$

In Stock, Qty 10

0

28

Troy-Bilt 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 746-06311A

THROTTLE CABLE
(Superseded to 746P06311A)

$5.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 794-00244

LEAD WIRES

$3.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 841P014184S

MUFFLER

$24.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 841P014301S

CRANKCASE COVER

Note: (Incl. 33)

$7.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-09086

O-RING SEAL CRANKCASE

$2.99

$

In Stock, Qty 5

0

34

Troy-Bilt 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
