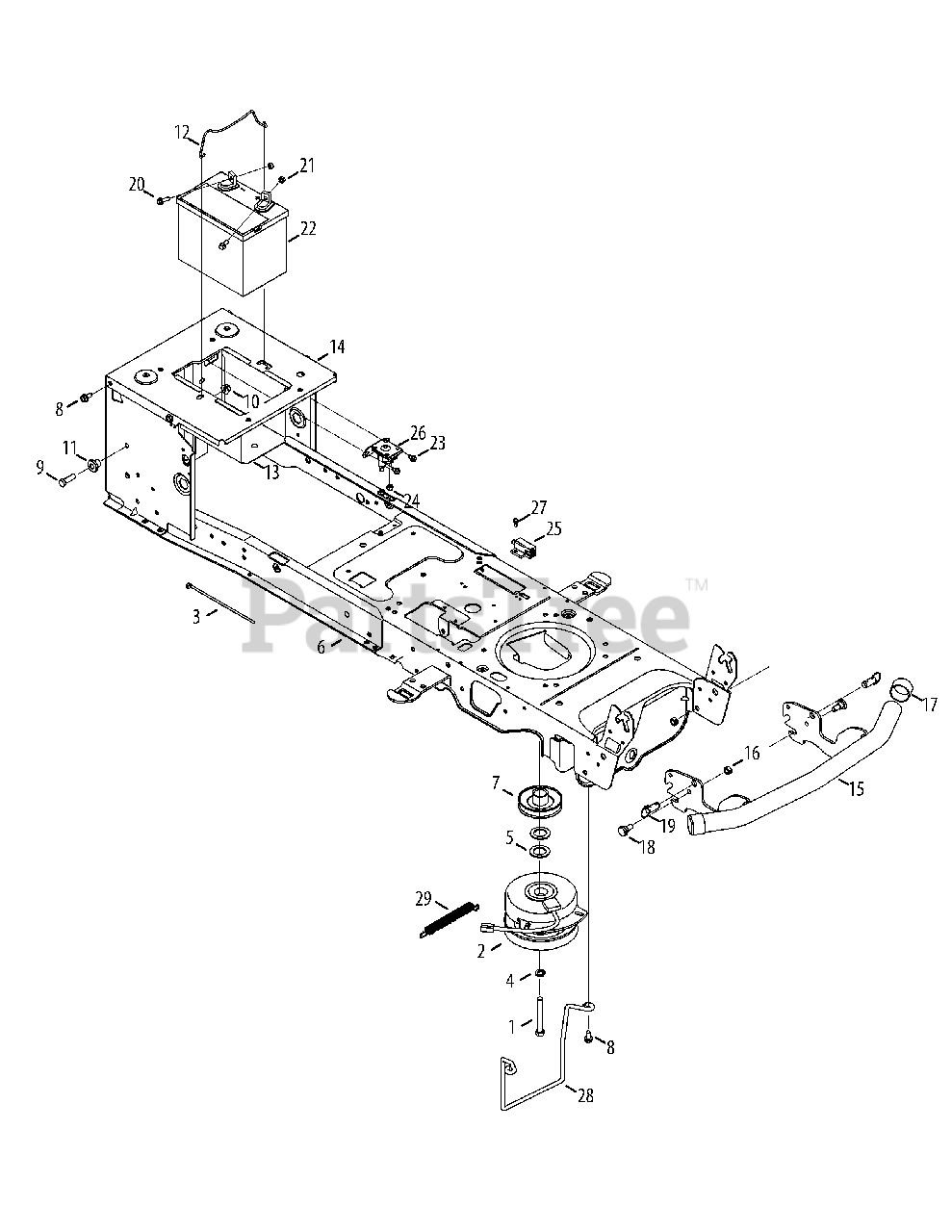

TB 2654 (14AK94KK066) - Troy-Bilt 54" Garden Tractor (2012) PTO & Battery Parts Diagram

54" Garden Tractor

PTO & Battery Parts Diagram

  • Title

1

Troy-Bilt 710-04379A

Hex Head Screw, 7/16-20x3.50

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 917-05001

Electric PTO Clutch

$668.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 683-04469B-0637

Frame
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 756-0978B

Electric PTO Engine Pulley

$70.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04484

Taptite Screw, 5/16-18x.750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3005

Hex Head Screw, 3/8-16x1.25

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 747-04121A

Battery Holder Rod

$6.99

$

In Stock, Qty 16

0

13

Troy-Bilt 783-0349-0637

Battery Tray

$

$

Not available

14

Troy-Bilt 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 683-04219B-0637

Bumper

$64.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 912-3000

Hexlock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 8

0

17

Troy-Bilt 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-0143

Shoulder Bolt, .496 x .336

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-04061

Quick Release Pin

$23.99

$

In Stock, Qty 12

0

20

Troy-Bilt 710-04666

Hex Head Flange, 1/4-20x.75

$7.49

$

In Stock, Qty 11

0

21

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

22

Troy-Bilt 925-1707D

Battery

$

$

Not available

23

Troy-Bilt 710-0653

Taptite Screw, 1/4-20x0.375

$4.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 725-04363

Interlock Switch

$16.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 725-04439

Solenoid, 12 V
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 738-04237A

Shoulder Screw, #10-32x.500

$6.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 747-05195

Belt Keeper Rod

$37.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 732-0814

Spring, Extn, .56 Dia X 5.52

$8.49

$

In Stock, Qty 13

0

Troy-Bilt 925-04104

Wire harness, Main

Note: Not shown

$233.99

$

Usually ships in 3-6 days

0
