TB 27 BV EC (41AS27VA766) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

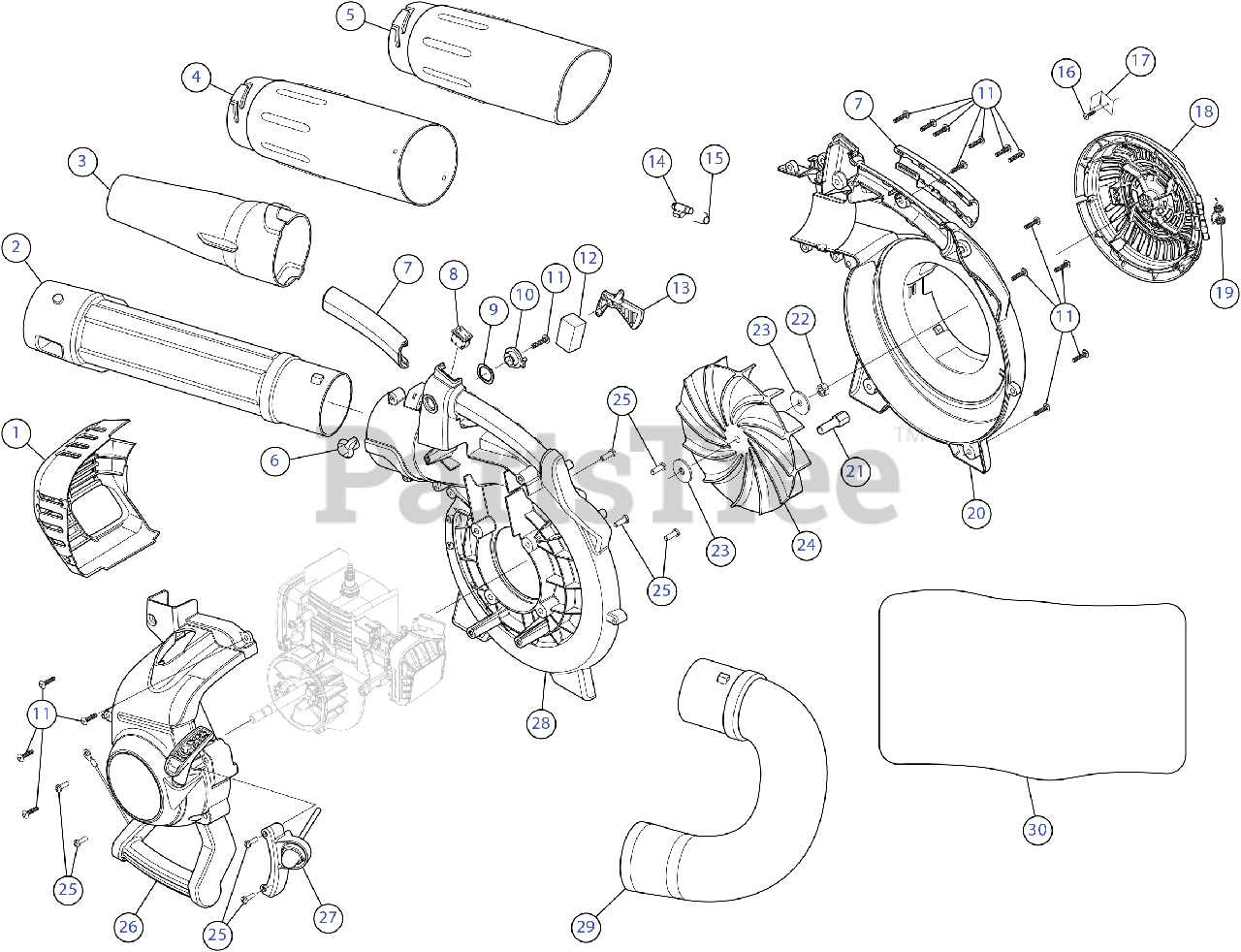

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06694

MUFFLER COVER

Note: (Incl. 11)

$3.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05936

UPPER TUBE

$17.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 753-06000

NOZZLE BKPK CUB

$12.99

$

In Stock, Qty 7

0

4

Troy-Bilt 753-06660

UPPER VAC TUBE SCBLO

$12.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-180467

TUBE, LOWER VACUUM (ELEC BLWR-

$35.99

$

In Stock, Qty 5

0

6

Troy-Bilt 753-05932

TRIGGER LOCK OTR

$2.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05919

ANDLE GRIP ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$9.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 753-05925

WASHER WAVEY
(Superseded to 736-04353)

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05924

TRIGGER LOCK INR

$2.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-1122

SCREW 1/4-20 x 2.50 GR5

$6.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-05254

AIR FILTER

$5.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 753-05930

THROTTLE TRIGGER

$

$

Not available

14

Troy-Bilt 753-05926

LATCH TUBE

$2.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-05939

SPRING LATCH

$2.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 1755

SCREW-10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06696

DOOR LOCK SC

$2.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-06716

INTAKE COVER ASSEMBLY

$5.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05918

SPRING

$2.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-06679

IMPELLER HOUSING OTR

$19.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 753-06700

ADAPTER STARTER

$5.49

$

In Stock, Qty 8

0

22

Troy-Bilt 912-0237

HEX NUT CENTER
(Superseded to 712-0237)

$

$

Not available

23

Troy-Bilt 753-05928

WASHER FLAT

$2.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 753-05929

IMPELLER

$12.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 791-181862

SCREW:10-32X.562:#8P

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-08679

STARTER ASSEMBLY

Note: (Incl. 11 & 25)

$28.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-08521

PRIMER BRACKET

$12.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 753-06693

IMPELLER HOUSING INR

$16.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-06658

ELBOW TUBE

$13.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 753-06659

VAC BAG SCBLO

$16.99

$

In Stock, only 1 left!

0
