TB 280 ES (12AGA2A6711) - Troy-Bilt Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

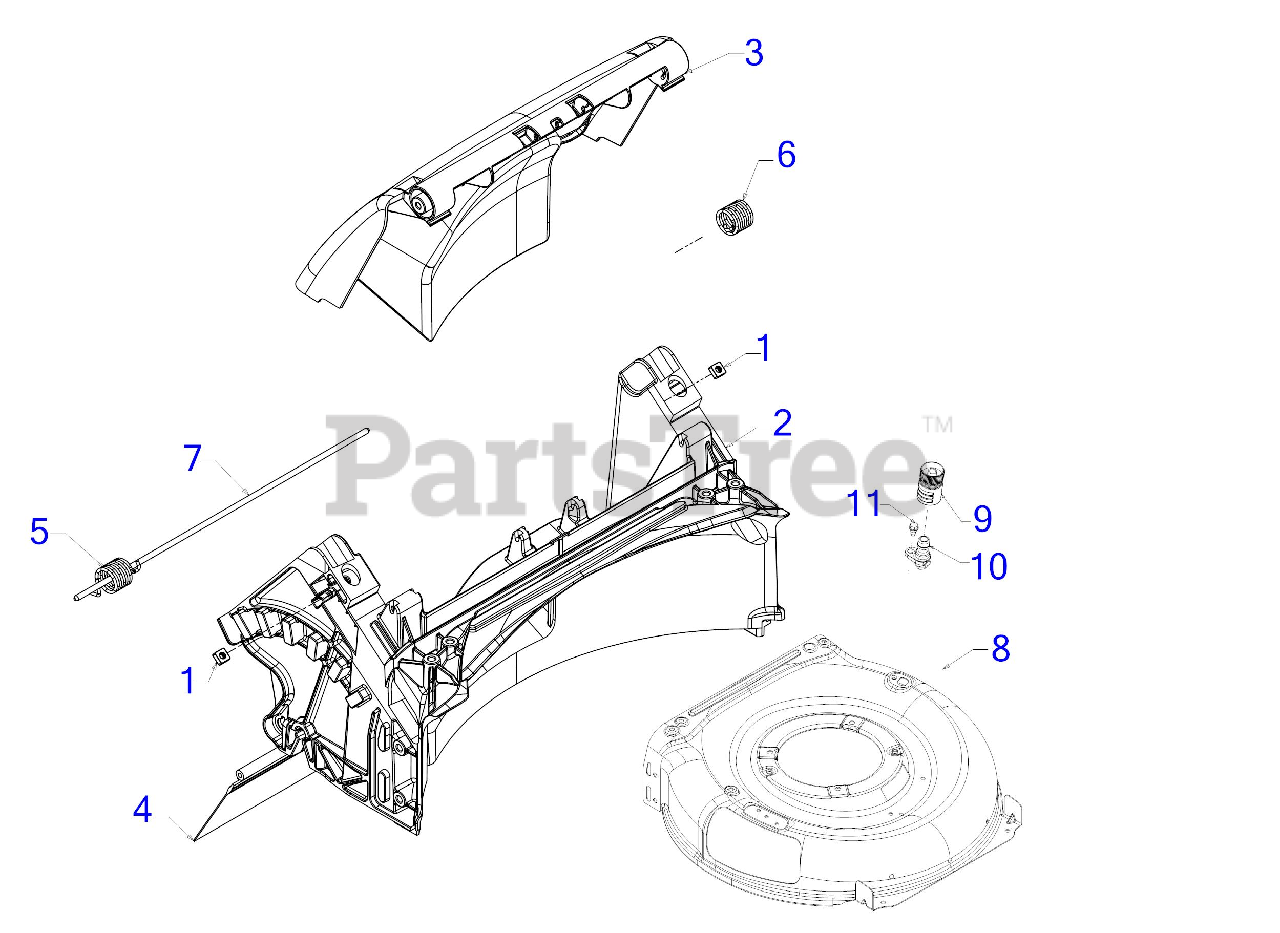

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 712-04222

SQUARE NUT 1/4-20

$5.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 631-04369A

DOOR ASSEMBLY
(Superseded to 631-08159)

$59.99

$

In Stock, Qty 16

0

3

Troy-Bilt 631-04371A

REAR BAG DOOR ASSEMBLY
(Superseded to 631-08159)

$59.99

$

In Stock, Qty 16

0

4

Troy-Bilt 731-07203

TRAILSHIELD

$11.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.99

$

In Stock, Qty 15

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.99

$

In Stock, Qty 8

0

7

Troy-Bilt 747-05183

REAR DOOR PIVOT ROD

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 787-01875C-0638

21" DECK (3N1)

$134.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 921-04041

WATER NOZZLE

$24.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.99

$

In Stock, Qty 17

0

11

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
