TB 30 E (131Z27JD711) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2018) Deck Parts Diagram

30" Rear-Engine Riding Mower, Electric

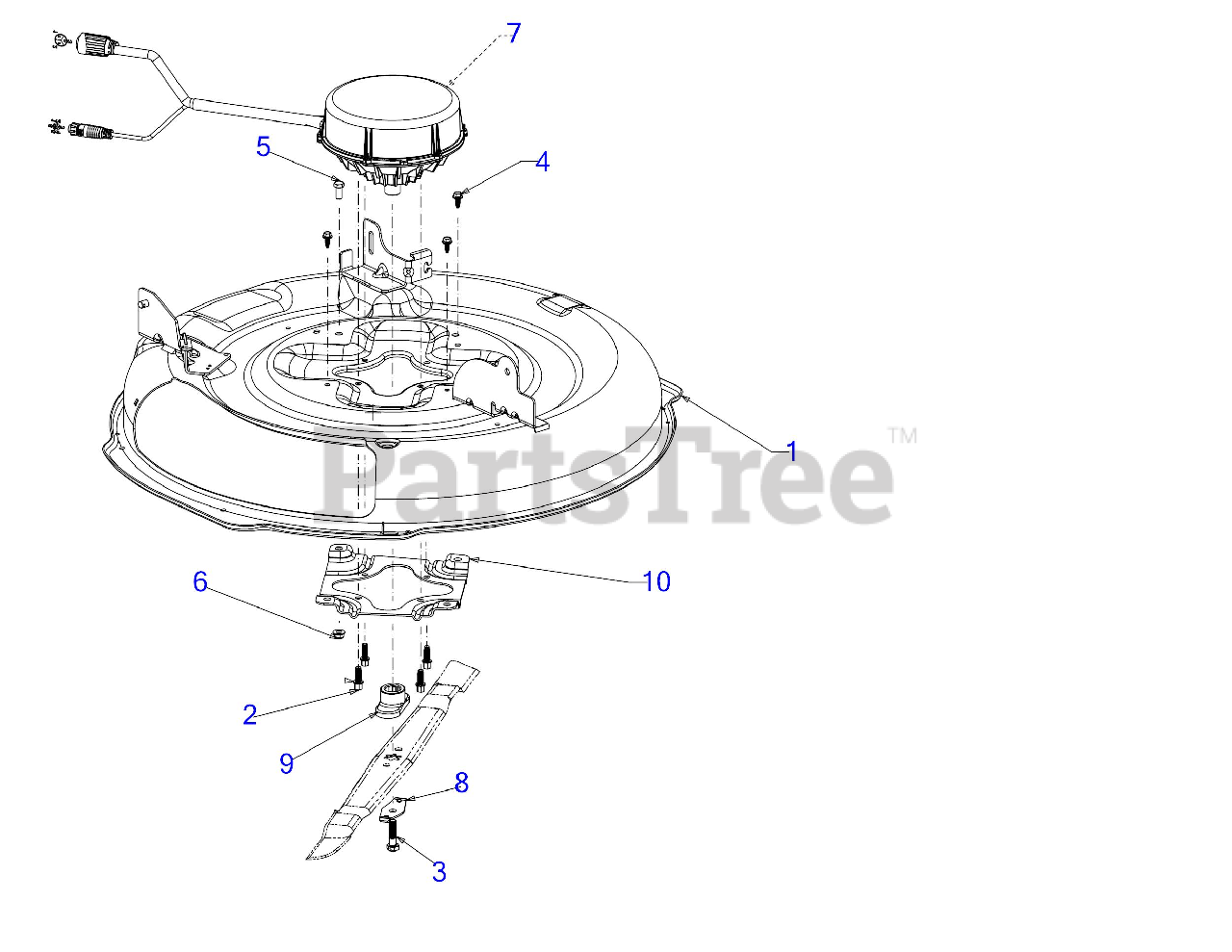

Deck Parts Diagram

  • Title

1

Troy-Bilt 683-05494

30" DECK ASSEMBLY (W/O NOZZLE)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

683-05494-0637

Troy-Bilt 683-05494-0637

30" DECK ASSEMBLY (W/O NOZZLE) (POWDER BLACK) - POWDER BLACK (0637)

$289.99

$

Usually ships in 3-6 days

0

683-05494-4021

Troy-Bilt 683-05494-4021

30" DECK ASSEMBLY (W/O NOZZLE) (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$251.99

$

Usually ships in 3-6 days

0

$251.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-06322

SCREW 5/16-18 X .875

$5.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-1044

SCREW 3/8-24 x 1.50 GR8

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 924-04334

30" DECK MOTOR

$557.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 748-05185

BLADE ADAPTER (#6 X 1.19 W/STAR)

$16.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 783-08047A

SPINDLE SUPPORT BRACKET

Variations

783-08047A-0637

Troy-Bilt 783-08047A-0637

Spindle Support Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0
