TB 30 E XP (33AA27JDB66) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2023) Fender Parts Diagram

30" Rear-Engine Riding Mower, Electric

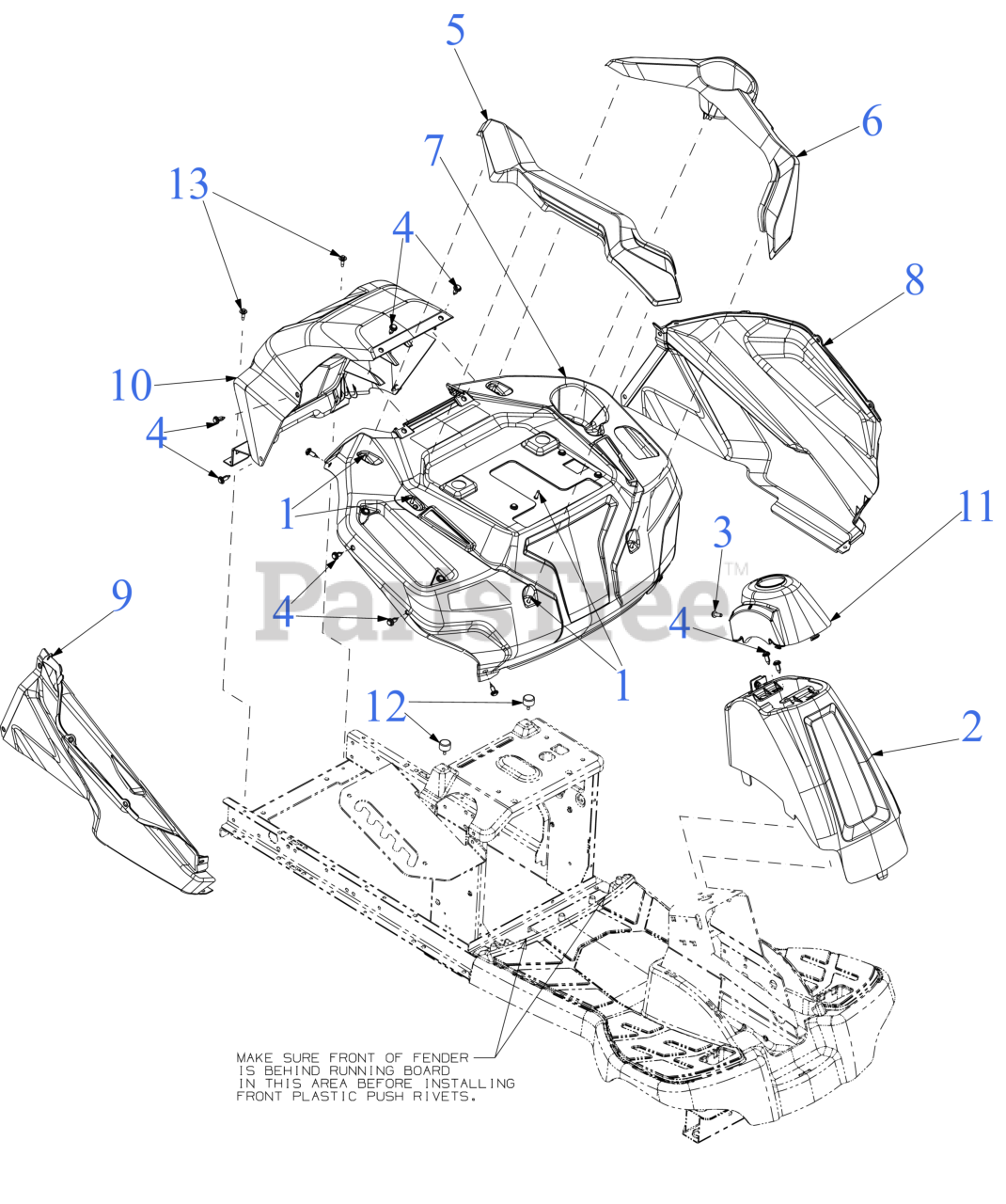

Fender Parts Diagram

  • Title

1

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-05649A

COLUMN COVER (BLACK)

$28.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-04092

U NUT

$6.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 731-13410A

FENDER TRIM (RH)

$20.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-17291A

FENDER TRIM (LH) (NO USB)

$35.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731P27035

FENDER

$92.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731P27036

BODY PANEL (LH)

$42.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731P27037

BODY PANEL (RH)

$41.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731P27038B

REAR COVER

$50.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-27655

STEERING COLUMN CAP

$25.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, only 1 left!

0
