TB 30 R (13AC21JD011) - Troy-Bilt 30" Rear-Engine Riding Mower, Hydro Drive (2018) Fender Parts Diagram

30" Rear-Engine Riding Mower, Hydro Drive

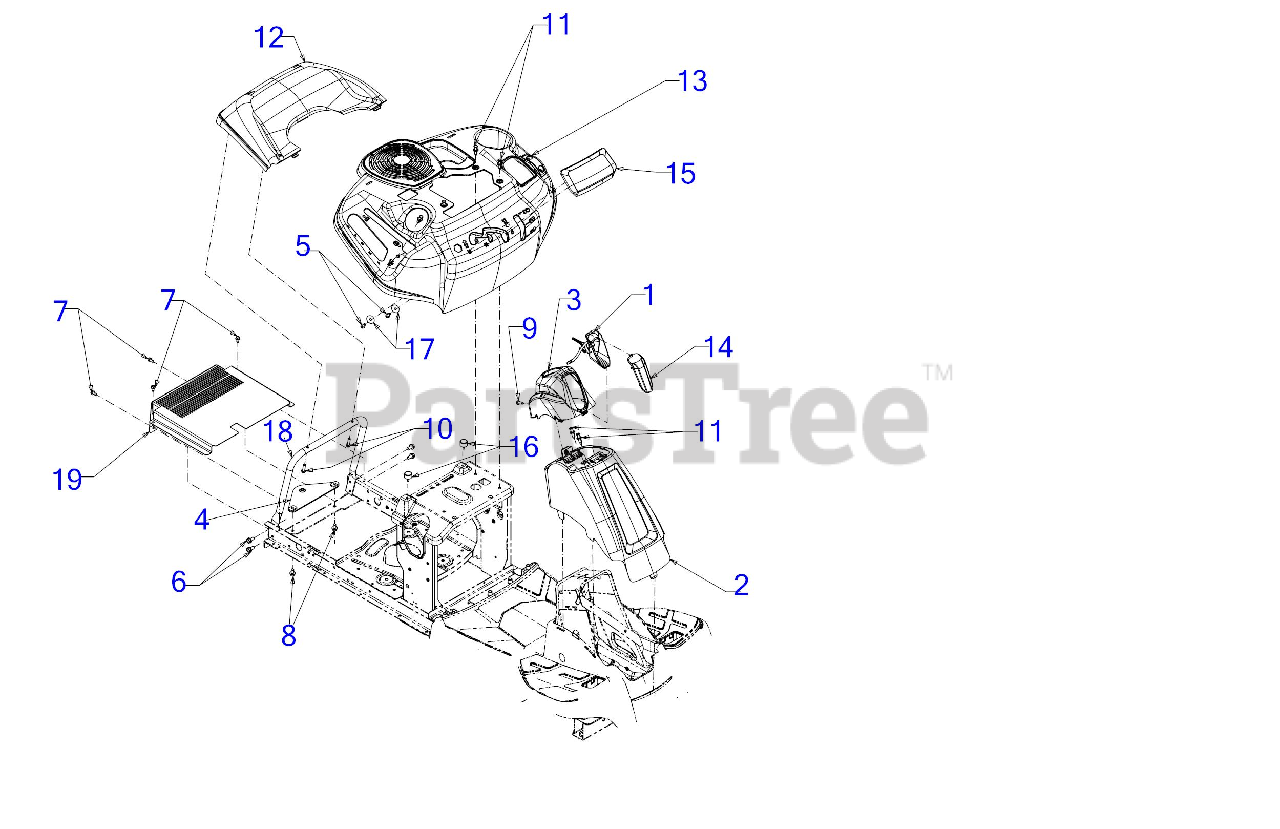

Fender Parts Diagram

  • Title

1

Troy-Bilt 925-05119

HEADLIGHT HARNESS ASSEMBLY

$63.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$36.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-04092

U NUT

Note: (Not Shown)

$6.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 631-05369

STEERING COLUMN CAP (MTD RED)

$41.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

9

Troy-Bilt 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 731-08620A

REAR COVER

$35.99

$

In Stock, Qty 6

0

13

Troy-Bilt 931-08708A

FENDER
(Superseded to 931-08708B)

$91.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-11484

LED HEADLIGHT LENS

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-11496

FENDER COVER

$14.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-3092

FLAT WASHER

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 6

0

$29.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 783-09147B

HYDRO COVER HEAT SHIELD (B&S)
(Superseded to 783-09147D)

$87.99

$

Usually ships in 3-6 days

0
