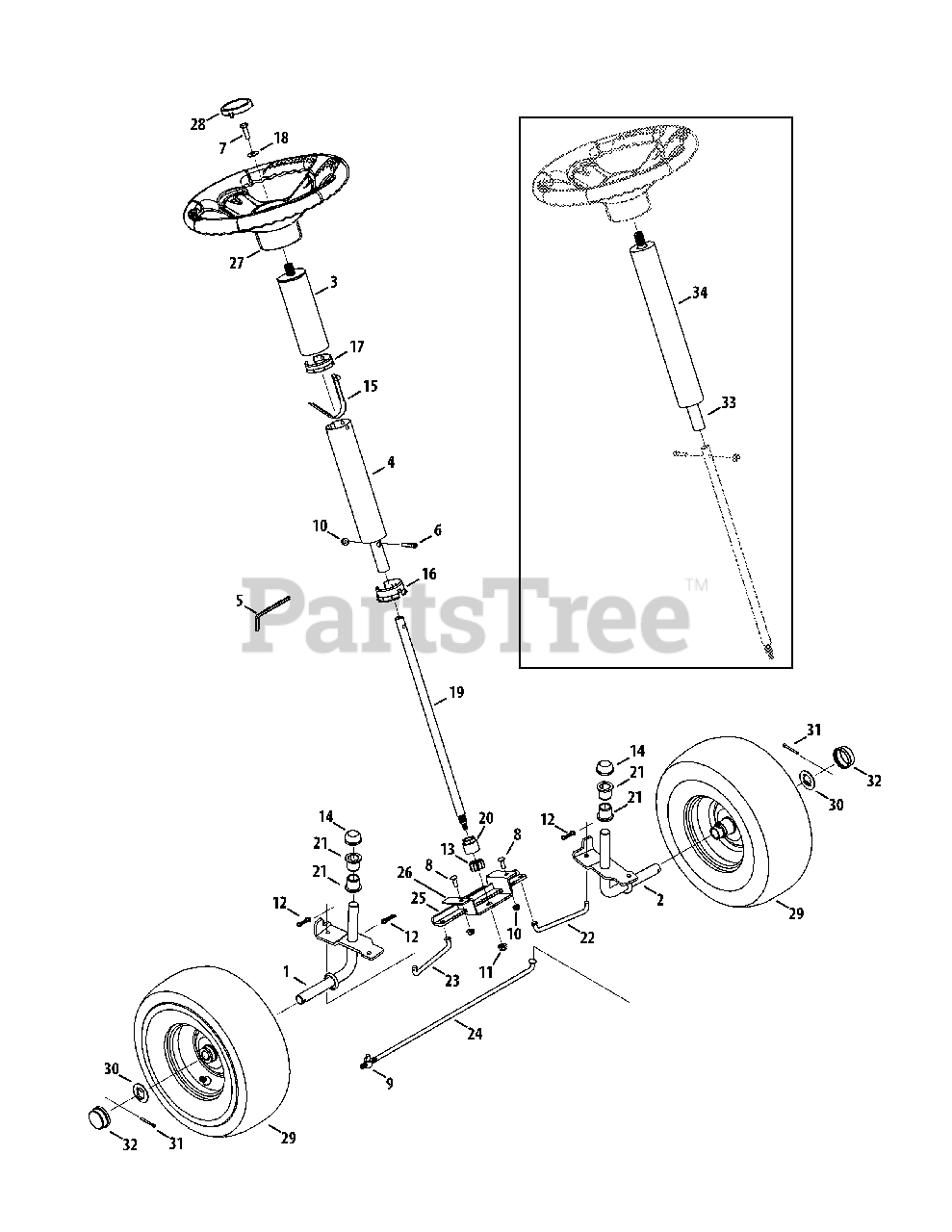

TB 30 R (13AC26JD211) - Troy-Bilt 30" Rear-Engine Riding Mower (2012) Front End Steering Parts Diagram

30" Rear-Engine Riding Mower

Front End Steering Parts Diagram

  • Title

1

Troy-Bilt 683-04726-0637

Front Axle Assembly, RH

$38.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 683-04727-0637

Front Axle Assembly, LH

$38.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 683-04761

Upper Tube Assembly

$49.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-04762

Lower Tube Assembly

$71.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-05046

Allen Wrench, 3/16

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-05386

Screw, 1/4-20 X 1.25

$4.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0643

Hex Head Screw, 5/16-18:1.00

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0703

Carriage Screw, 1/4-20, .75

$4.49

$

In Stock, Qty 14

0

9

Troy-Bilt 711-04448

Ferrule, 5/16-24 X .312 Dia.

$10.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-04127

Snap Butt

$11.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-08690

Lower Steering Collar

$4.49

$

In Stock, Qty 11

0

17

Troy-Bilt 731-08691

Upper Steering Collar

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 736-0242

Bevel Washer, .340X.872X.060

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04537

Steering Shaft, .625 OD X 18.03
(Superseded to 738-04537B)

$36.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 741-04542

Hex Flange Bearing, 5/8
(Superseded to 741-04542A)

$5.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0660A

Flange Bearing, .760 X .941 X 1.0

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-05514

Steering Rod, LH

$15.99

$

In Stock, Qty 9

0

23

Troy-Bilt 747-05585

Steering Rod, RH

$15.99

$

In Stock, Qty 7

0

24

Troy-Bilt 747-05686

Front Tie Rod

$

$

Not available

25

Troy-Bilt 783-06988

Steering Rack Plate
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 783-07239

Lower Steering Bearing
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 631-04028

Steering Wheel, Standard Grip

$73.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 631-04008A

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

Note: (If equipped)

$100.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 634-04726

Complete Wheel Assembly

Variations

Troy-Bilt 634-04726-0911

Wheel, 13" X 5X6 SQ - Carlisle Gray (0911)

$153.99

$

In Stock, only 2 left!

0

Troy-Bilt 634-04726-0916

Wheel, 13" X 5X6 SQ - Kenda Gray (0916)

$153.99

$

In Stock, only 2 left!

0

Troy-Bilt 634-04726-0966

Wheel Complete, 13 - Kenda Gray (0966)

$110.99

$

In Stock, Qty 16

0

Troy-Bilt 634-04726-0926

WHEEL-COMPLETE 13 - Kenda White (0926)

$156.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-04726-0931

WHEEL-COMPLETE 13 - Carlisle Beige (0931)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04726-0936

WHEEL-COMPLETE 13 - Kenda Beige (0936)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04726-0946

WHEEL-COMPLETE 13 - Kenda Yellow (0946)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04726-0961

WHEEL-COMPLETE 13 - Carlisle Gray (0961)

$110.99

$

In Stock, Qty 16

0

Troy-Bilt 634-04726-0976

WHEEL-COMPLETE 13 - Kenda Yellow (0976)

$156.99

$

Usually ships in 3-6 days

0

$127.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 734-04640

Tire-13 X 5.0 X 6

Note: (not shown)

$78.99

$

In Stock, Qty 8

0

29

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 934-0255

Valve, tubeless Air

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-04228A

Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 931-0484A

Hub Cap

$6.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 683-04763

Tube Assembly, Non-Telescoping
(Superseded to 983-04763)

Note: (If equipped)

$34.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 723-04095

Steering Sleeve
(Superseded to 723-04095B)

$31.99

$

Usually ships in 3-6 days
