TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2014) Pedal Controls Parts Diagram

30" Rear-Engine Riding Mower

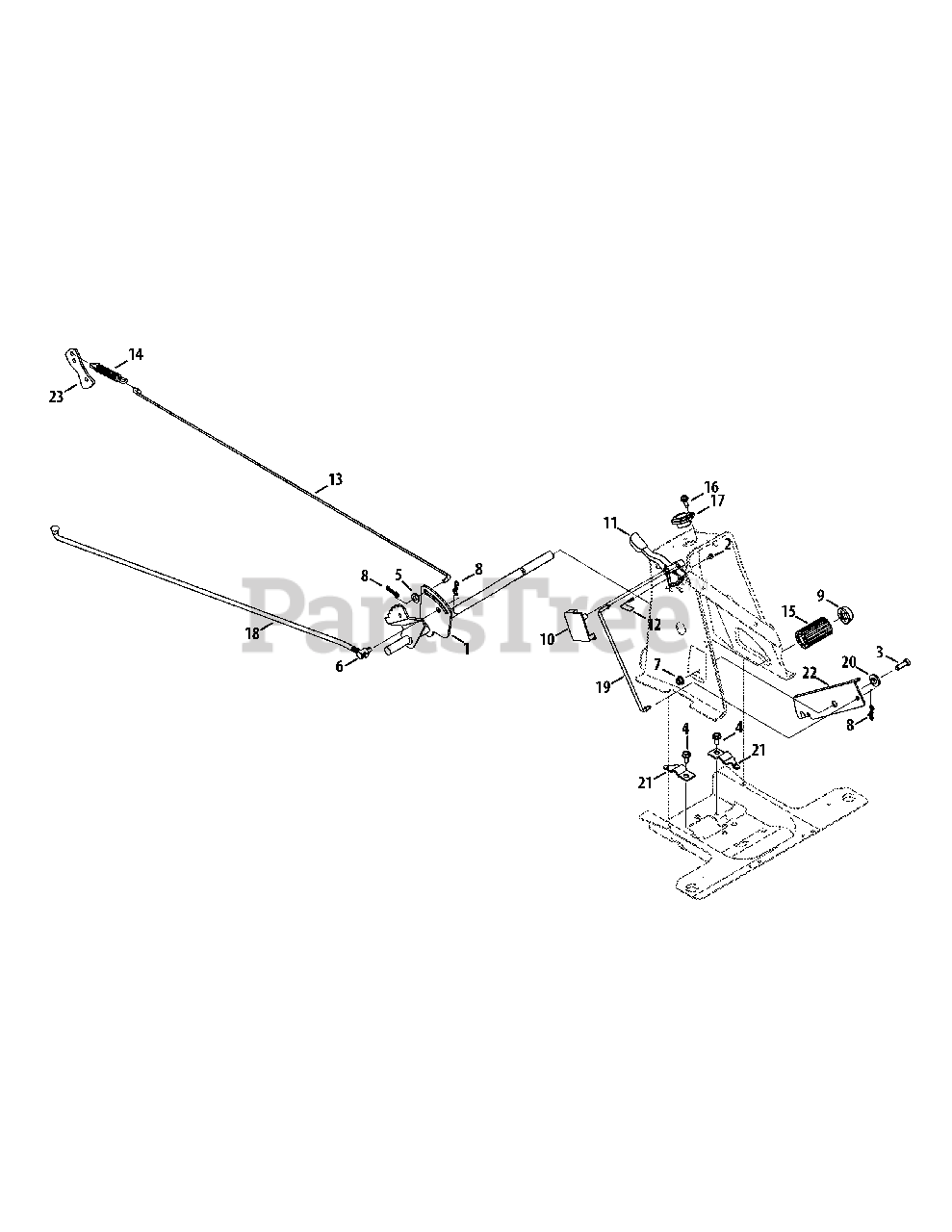

Pedal Controls Parts Diagram

  • Title

1

Troy-Bilt 683-05017-0637

Brake Pedal Assembly
(Superseded to 683-05017B-0637)

$44.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 910-0224

Screw, #10-16:0.500

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0376

Hex Head Scerw, 5/16-18:1.00

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04484

Tap Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 936-0264

Flat Washer, .330 x .630 x .064

$7.49

$

In Stock, Qty 9

0

6

Troy-Bilt 711-06103

Ferrule 3/8-24 X .375 Dia.

$4.49

$

In Stock, Qty 9

0

7

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 726-0214

Push Cap, 5/8

$11.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-08656A

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 731-08743B

Speed Lever, 6-SPEED

$7.99

$

In Stock, Qty 11

0

12

Troy-Bilt 732-04937

Shift Spring

$4.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 747-06033A

Brake Rod

$20.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 732-0716D

Extension Spring, .59 OD x 4.00 LG

$13.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 735-04279

Foot Pad, 2.5" LG.

$9.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 738-04184A

Shoulder Screw, .368 X.113, 1/4-20

$7.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 741-0356A

Steering Col. Bearing, .880 ID X 1.36

$7.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 747-05506

Variable Speed Control Rod

$23.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 747-06015

Speed Selector Control Rod

Note: (4/3/2014 & Before)

$12.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 747-06449

Speed Selector Control Rod

Note: (4/3/2014 & After)

$15.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 748-0234

Shoulder Spacer

$4.99

$

In Stock, Qty 10

0

21

Troy-Bilt 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-08116A-0637

Speed Latch Bracket
(Superseded to 783-08116C-0637)

Note: (1/27/2014 & Before)

$11.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 683-05157-0637

Speed Latch Bracket

Note: (1/27/2014 & After)

$9.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 717-0772B

Brake lever Bracket

$13.99

$

Usually ships in 3-6 days
