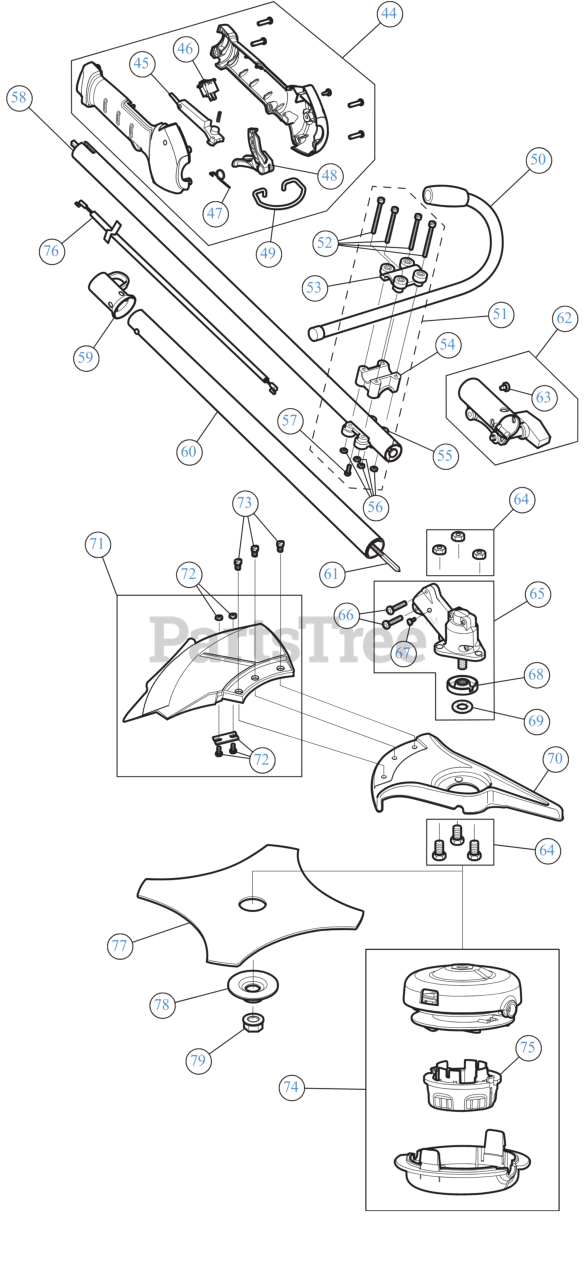

TB 304 BC (41AD304S866) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

44

Troy-Bilt 753-09888

THROTTLE GRIP ASM

Note: (Incl. 44 - 49)

$18.99

$

In Stock, Qty 5

0

45

Troy-Bilt 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, only 1 left!

0

46

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, only 1 left!

0

48

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 9

0

49

Troy-Bilt 732-06186

SHOULDER STRAP CLIP

$3.99

$

In Stock, only 1 left!

0

50

MTD 791-181099

HANDLE ASSEMBLY-JAY

$

$

Not available

51

Troy-Bilt 791-683295

HANDLE BRACKET ASSEMBLY

Note: (Incl. 52 - 57)

$45.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 791-181811

CLAMP SCREW

$4.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 791-181812

HANDLE UPPER CLAMP

$8.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 791-181813

HANDLE MIDDLE CLAMP

$12.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 791-181814

HANDLE LOWER CLAMP

$8.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 791-181815

NUT-CLAMP

$4.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 841-035632S

UPPER BOOM

$14.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, Qty 14

0

60

Troy-Bilt 753-06789

BOOM ASSEMBLY LOWER

$23.99

$

In Stock, Qty 6

0

61

Troy-Bilt 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, Qty 6

0

62

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 63)

$23.99

$

In Stock, only 4 left!

0

63

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 11

0

64

Troy-Bilt 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

65

Troy-Bilt 753-07006

GEARBOX ASSEMBLY
(Superseded to 753-11244)

Note: (Incl. 66 - 69)

$22.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 7

0

67

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

68

Troy-Bilt 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 3 left!

0

69

Troy-Bilt 753-04348

PALNUT:3/8" DIAM

$6.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 753-1191

SHIELD ASSEMBLY WITH BLADE

Note: (Incl. 72)

$64.99

$

In Stock, only 2 left!

0

72

Troy-Bilt 791-682061

BLADE ASSEMBLY

$14.99

$

In Stock, Qty 5

0

73

Troy-Bilt 791-683304

SCREW-GUARD MTG PK

$11.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 841-032392S

HEAD ASSEMBLY

Note: (Incl. 75)

$23.99

$

In Stock, Qty 20+

0

75

Troy-Bilt 753-08563

BUMP KNOB

$3.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 746P04758

THROTTLE CABLE

$7.99

$

In Stock, Qty 5

0

77

Troy-Bilt 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, Qty 8

0

78

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, Qty 6

0

79

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 78 and 79)

$12.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
