TB 304 C EC (41AD304C866) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

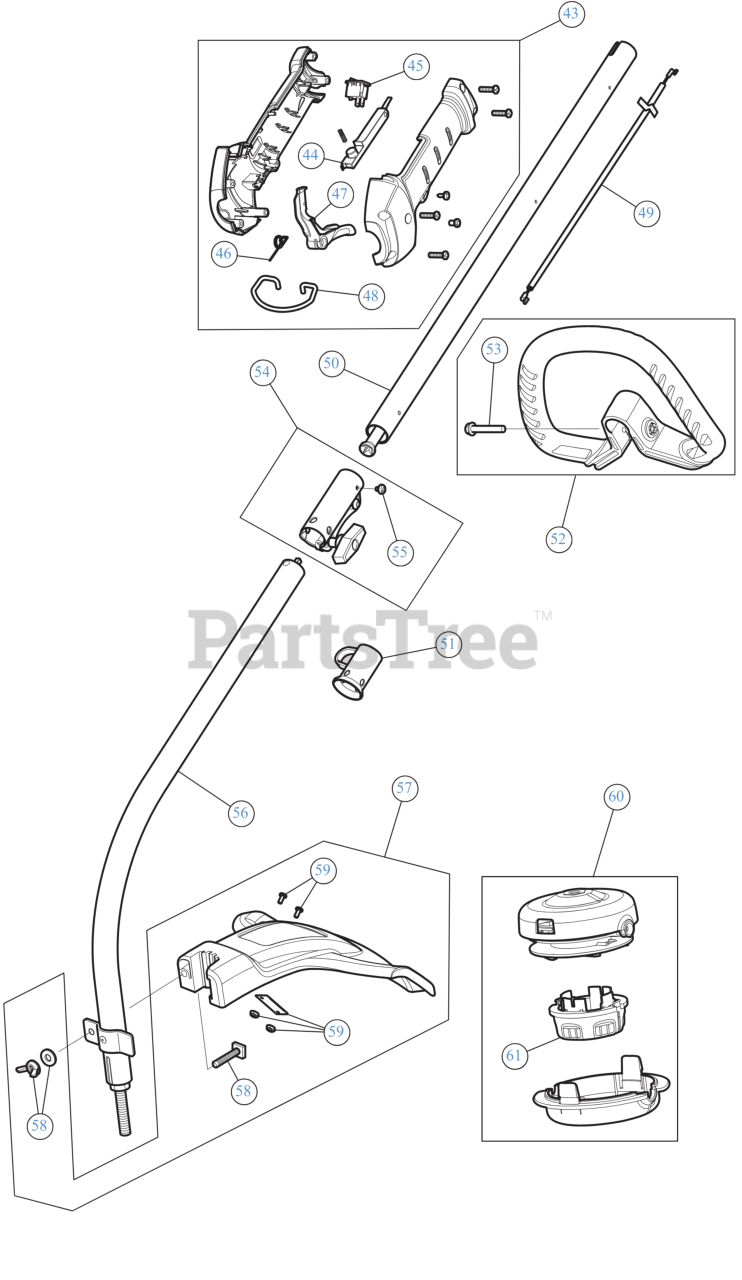

General Assembly Parts Diagram

  • Title

43

Troy-Bilt 753-09888

THROTTLE GRIP ASM

Note: (Incl. 44 - 48)

$19.99

$

In Stock, only 3 left!

0

44

Troy-Bilt 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 13

0

45

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$11.99

$

In Stock, Qty 9

0

46

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, Qty 8

0

47

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.99

$

In Stock, Qty 14

0

48

Troy-Bilt 732-06186

SHOULDER STRAP CLIP

$3.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 746P04758

THROTTLE CABLE

$8.49

$

In Stock, Qty 9

0

50

Troy-Bilt 841-035632S

UPPER BOOM

$15.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 753-06039

HANDLE ASSEMBLY

Note: (Incl. 53)

$11.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 753-06040

BOLT 1/4-20X1 1/2

$7.49

$

In Stock, Qty 18

0

54

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 55)

$24.99

$

In Stock, Qty 11

0

55

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.99

$

In Stock, Qty 17

0

56

Troy-Bilt 753-09586

LOWER BOOM

$23.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 753-04283

GUARD ASSEMBLY

Note: (Incl. 58 & 59)

$54.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 753-04282

BLADE GUARD MOUNTING HARDWARE

$27.99

$

In Stock, only 4 left!

0

59

Troy-Bilt 791-180553

ASSEMBLY, BLADE

$15.99

$

In Stock, Qty 7

0

60

Troy-Bilt 753-08182

CUTTING HEAD ASSEMBLY

Note: (Incl. 61)

$21.99

$

In Stock, Qty 5

0

61

Troy-Bilt 753-08563

BUMP KNOB

$3.99

$

In Stock, Qty 5

0
