TB 310 QS (41ASGBPG966) - Troy-Bilt Handheld Blower Housing Parts Parts Diagram

Handheld Blower

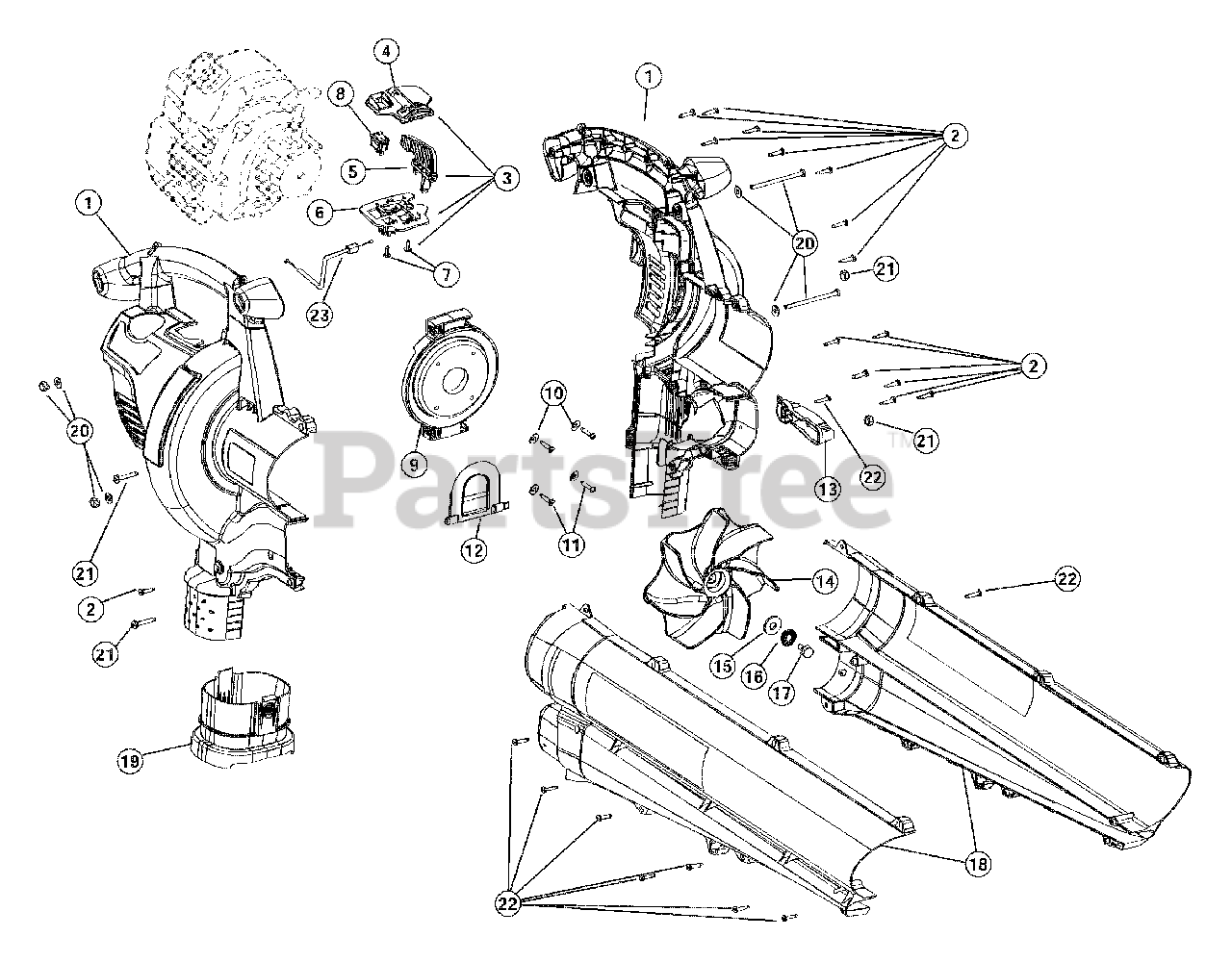

Housing Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04754

Engine Cover Assembly
(Superseded to 753-05061)

Note: (includes 2)

$

$

Not available

2

Troy-Bilt 753-04595

Cover Screw
(Superseded to 710-04194)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-04756

Throttle Control Assembly
(Superseded to 753-05013A)

Note: (includes 4-7)

$

$

Not available

4

Troy-Bilt 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

5

Troy-Bilt 791-00048

Throttle Control Lever

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

7

Troy-Bilt 791-182423

Screw, Plastic

$

$

Not available

8

Troy-Bilt 791-182405

Rocker Switch Assembly

$9.99

$

In Stock, Qty 20+

0

9

MTD 753-04483

Engine Mounting Plate

Note: (includes 10 & 11)

$

$

Not available

10

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

11

Troy-Bilt 753-04755

Screw
(Superseded to 710-04215A)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-182410

Mode Control Flapper

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-00050

Mode Control Lever

Note: (includes 22)

$

$

Not available

14

Troy-Bilt 753-04453

Impeller Blade
(Superseded to 731-04275)

$32.99

$

In Stock, Qty 5

0

15

Troy-Bilt 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-04834

Lock Washer
(Superseded to 736-04110A)

$4.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-182414

Bolt

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-00051

Blower/Vac Tube Assembly

Note: (includes 22)

$57.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-182417

Vacuum Bag Adapter

$17.99

$

Usually ships in 3-6 days

0

20

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

21

Troy-Bilt 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

22

Troy-Bilt 791-181482

Screw

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-00049

Throttle Cable

$

$

Not available

Troy-Bilt 791-612930

Cable Tie

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04465

Vacuum Bag Assembly

Note: (includes 19, Vacuum Bag & Cable Tie); Not Shown

$68.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-04325

Patio Head

Note: Not Shown

$56.99

$

Usually ships in 3-6 days

0
